DeviceNet
14 Appendix
14-6
L
BA2175 EN 2.0

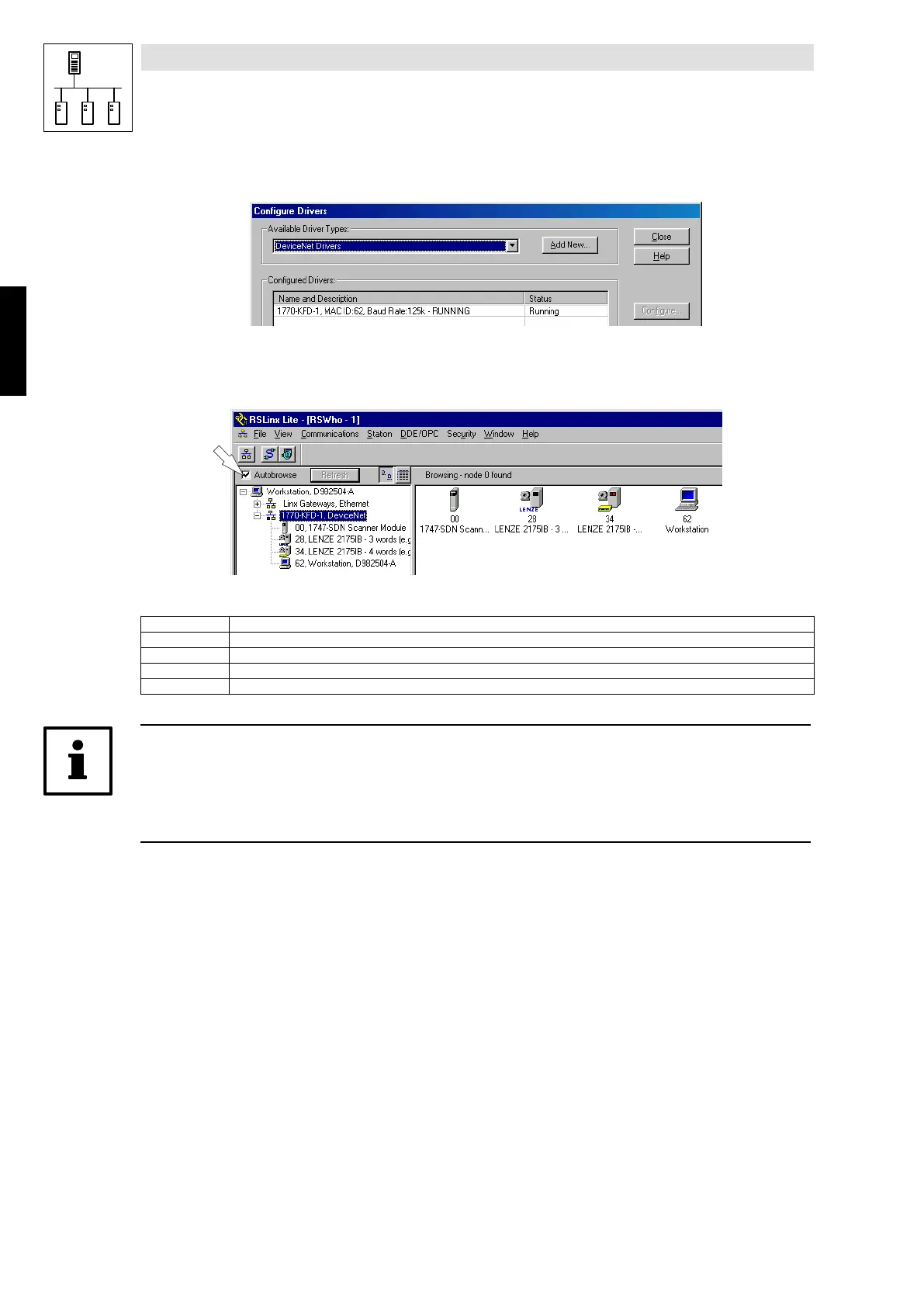

The interface configuration is now completed and indicates ”Running” as current status.
2175DeN063
6. Close the window with Close .
After the configuration of the “1770-KFD-1” interface has been completed, the bus structure and
assigned node addresses will be output if the function
Autobrowse
(arrow) has been activated.
2175DeN064
This example uses the following components:
Address Component
00 Scanner
28 Addressed 2175 module
34 Addressed 2175 module
62 PC workstation / 1770 KFD box interface
Tip!
• The “ RSLinx” software tool must run in the background to coordinate PC and KFD box.
• If node addresses are marked with question marks, Lenze components cannot be identified
because the corresponding EDS files are missing. Chapter 14.1.1 describes how to proceed.
