DeviceNet
14 Appendix
14-13
L BA2175 EN 2.0

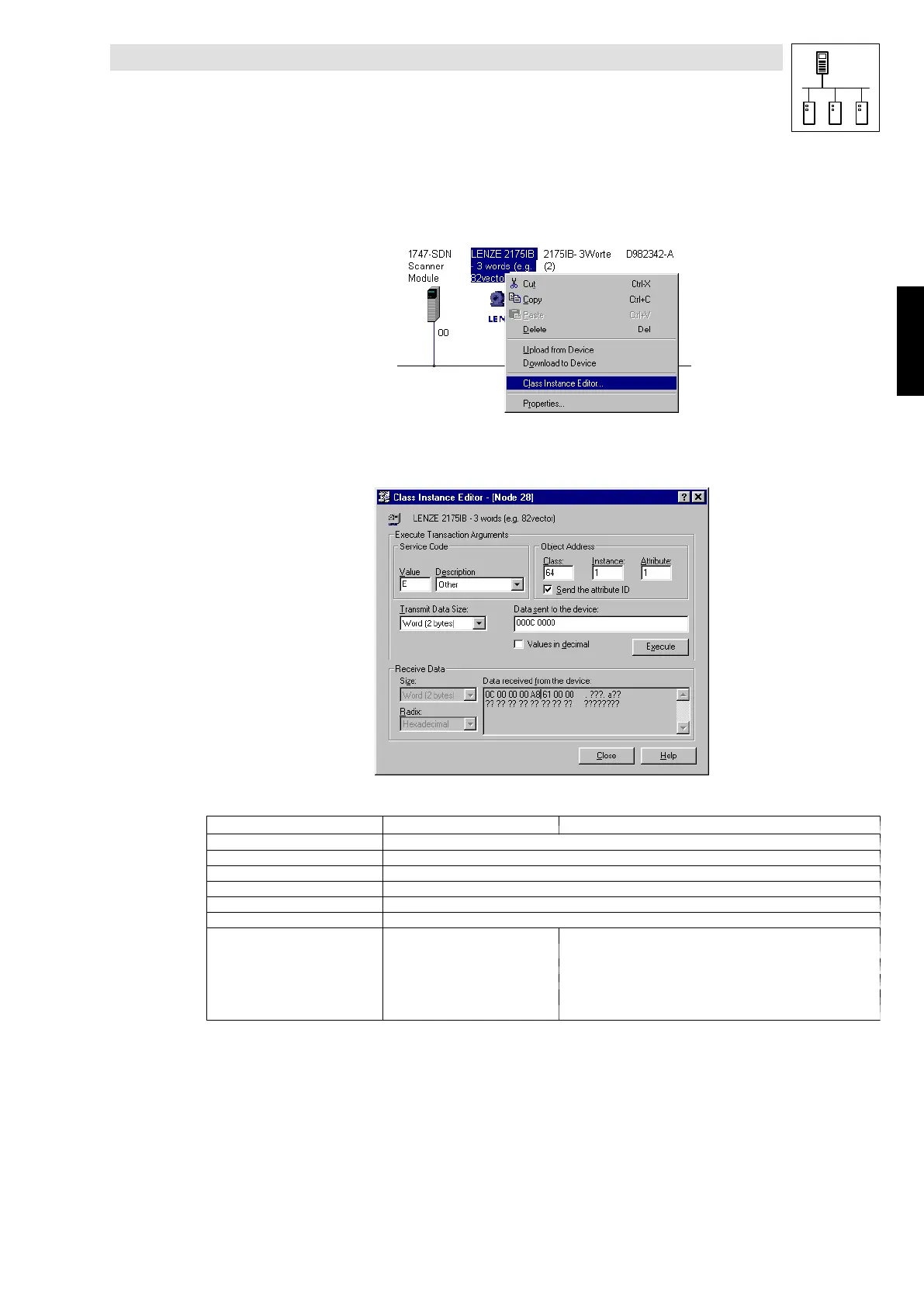

Class Instance Editor
The class instance editor can be used for checking communication or modifying controller
parameters.
2175DeN083
Confirm the query with YES
Go to Service class instance attribute editor and
Object address
to access controller data.
2175DeN084
Proceed as follows to read, e.g., the acceleration time (code L-C0012) from the controller:
Input HMI Input Explanation
• Description Other
• Value I
hex
(get single attribute), value = 10
hex
(set single attribute)
• Class 64
hex
(always with Lenze controllers)
• Instance 1 (always with Lenze controllers)
• Attribute 1 (always with Lenze controllers)
• Data sent to the device 000C 0000
• Data received from the device Response:
0C 00 00 00 A 8 61
Because of the left-justified Intel data format the response
sequence is LOW byte/HIGH byte.
1st word Lenze code L - C0012 0C 00
hex
2nd word 00 + subcode 00 00 00
3rd word
4the word
A8 61
Not used
Enter the follo wing for a n a ccelerat i on time (L-C0012) of 2.5 s:
Value * 10000 = 2.5 * 10000 = 25000 = 61A 8
hex
