DeviceNet

14 Appendix

14-18

BA2175 EN 2.0

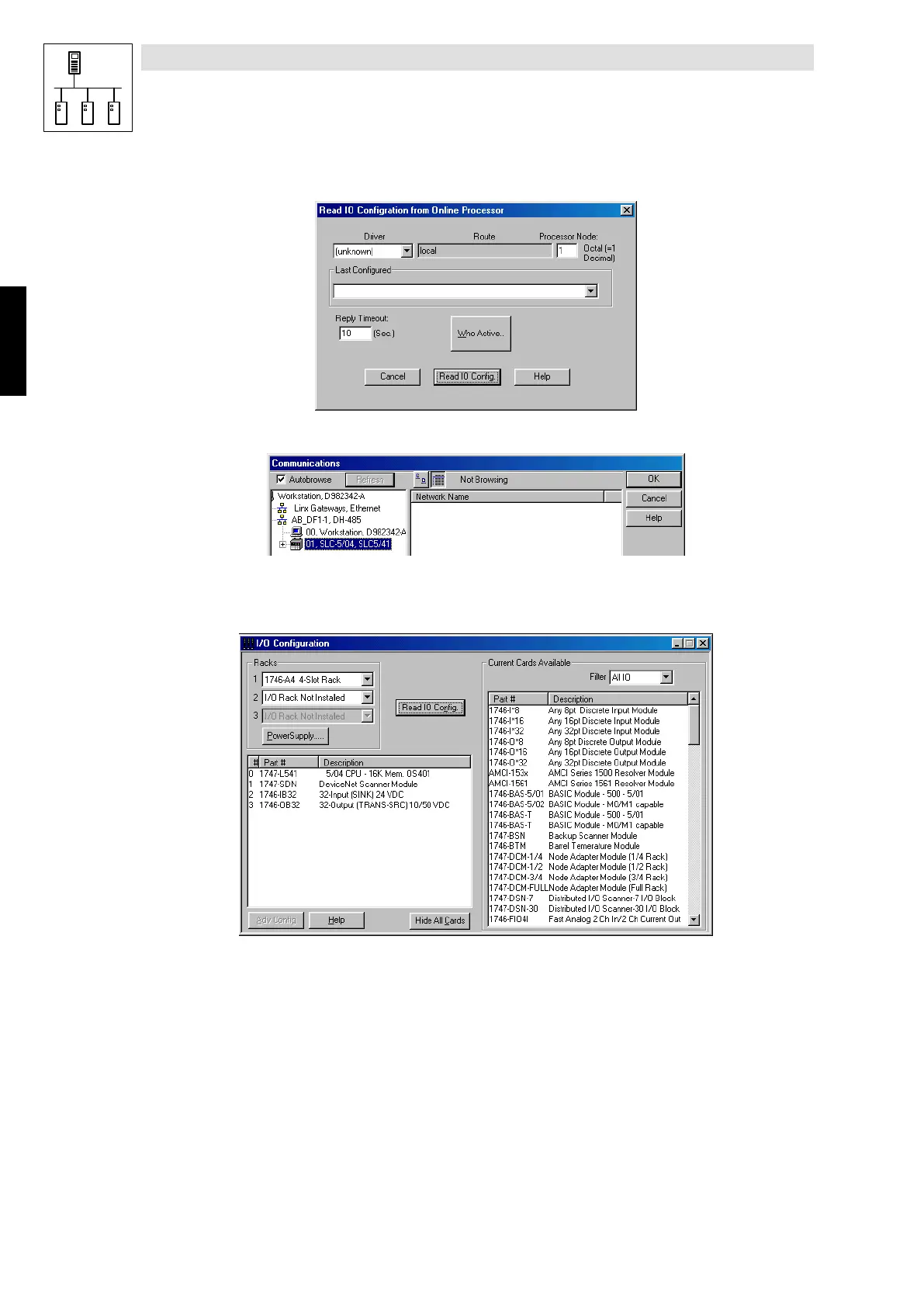

4. Select Who Active. The active driver will be selected.

2175DeN095

5. Select

SLC 5/04

.ConfirmwithOK.

2175DeN096

6. Select Read IO config to automatically start search and ’fill’ the rack.

The individual slots are equipped with the components shown in Tab. 14-1

2175DeN097

The I/O configuration is completed. Close the window with X .
