Installation
UOMu_^MVMO 4-5
4.1.3 DIN-rail assembly
Typ Id.-N R Fert.-Nr S erien -N r. Eingang1 Eingang2
Lenze
Po stfach 101352,31763 HAMELN
a
e
b
c1
2)
3)
c2
c3
1)
1)
hPRKMMTN

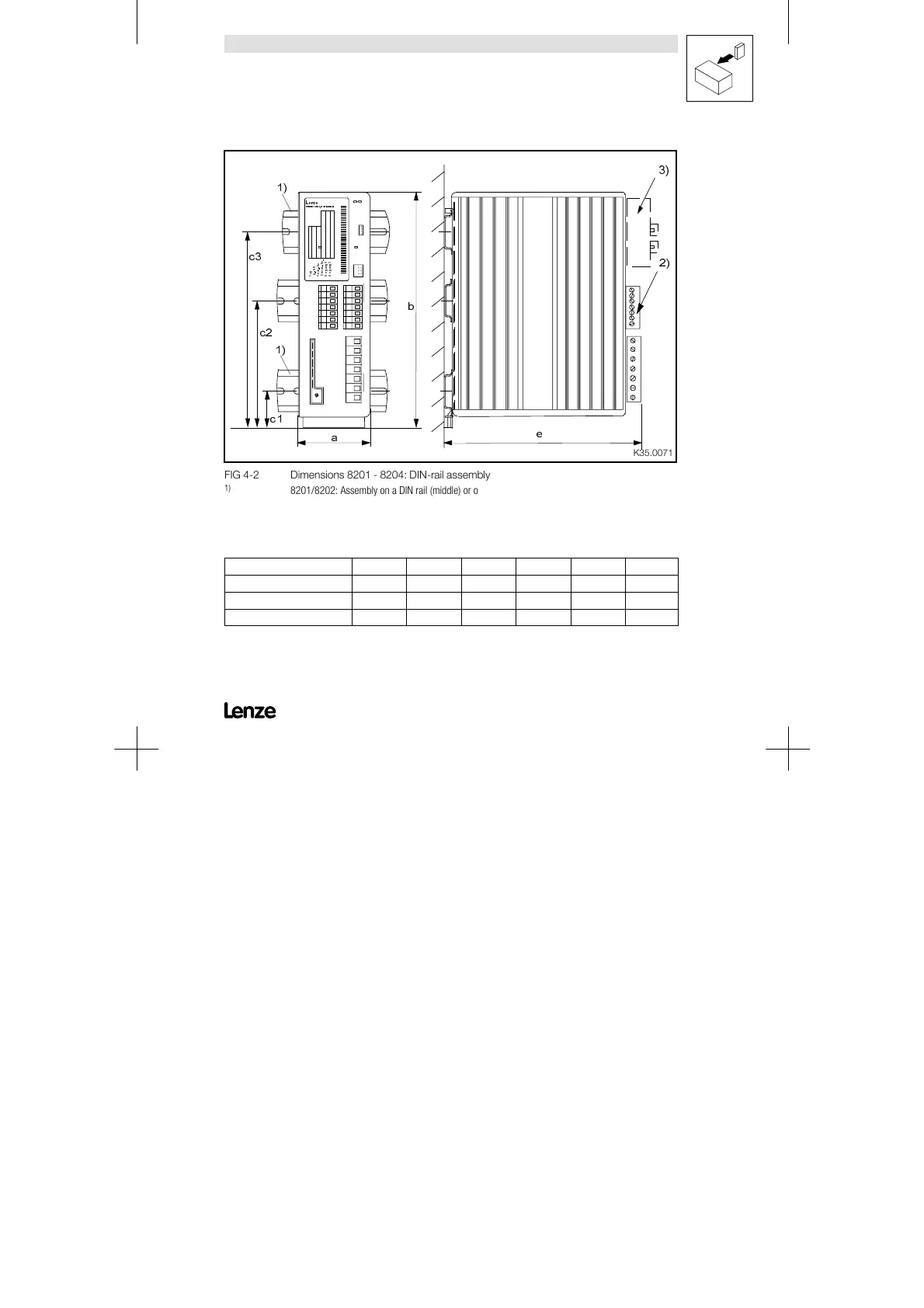

cfd QJO aáãÉåëáçåë UOMN J UOMQW afkJê~áä ~ëëÉãÄäó
1)
8201/8202: Assembly on a DIN rail (middle) or on two DIN rails (top and bottom) possible
8203 - 8204: Assembly on two DIN rails
2)
Observe the free space required for the connection cables
3)
With attachable fieldbus or I/O module:
Observe assembly depth and assembly space required for connection cables
[mm]
a b c1 c2 c3 e
3)
8201 64 188 16 98 149 173
8202 64 188 16 98 149 213
8203 / 8204 83 258 16 - 149 237
