Lenze 9300 Series - Thermally Separated Mounting (Push−Through Technique)

Mechanical installation
Standard devices in the power range 15 ... 30 kW
Thermally separated mounting (push−through technique)
4

148
EDKVS9332X DE/EN/FR 8.0
4.2.3 Thermally separated mounting (push−through technique)
For mounting in push−through technique, the drive controller of type EVS93xx−Exx must
be used. In addition, the mounting set EJ0011 for the push−through technique is required.
Dimensions
h
c1
c2
c3
h
d1
d2
d3
d2
d
b
a1
a
g
b1
e1
e
L
9300std066

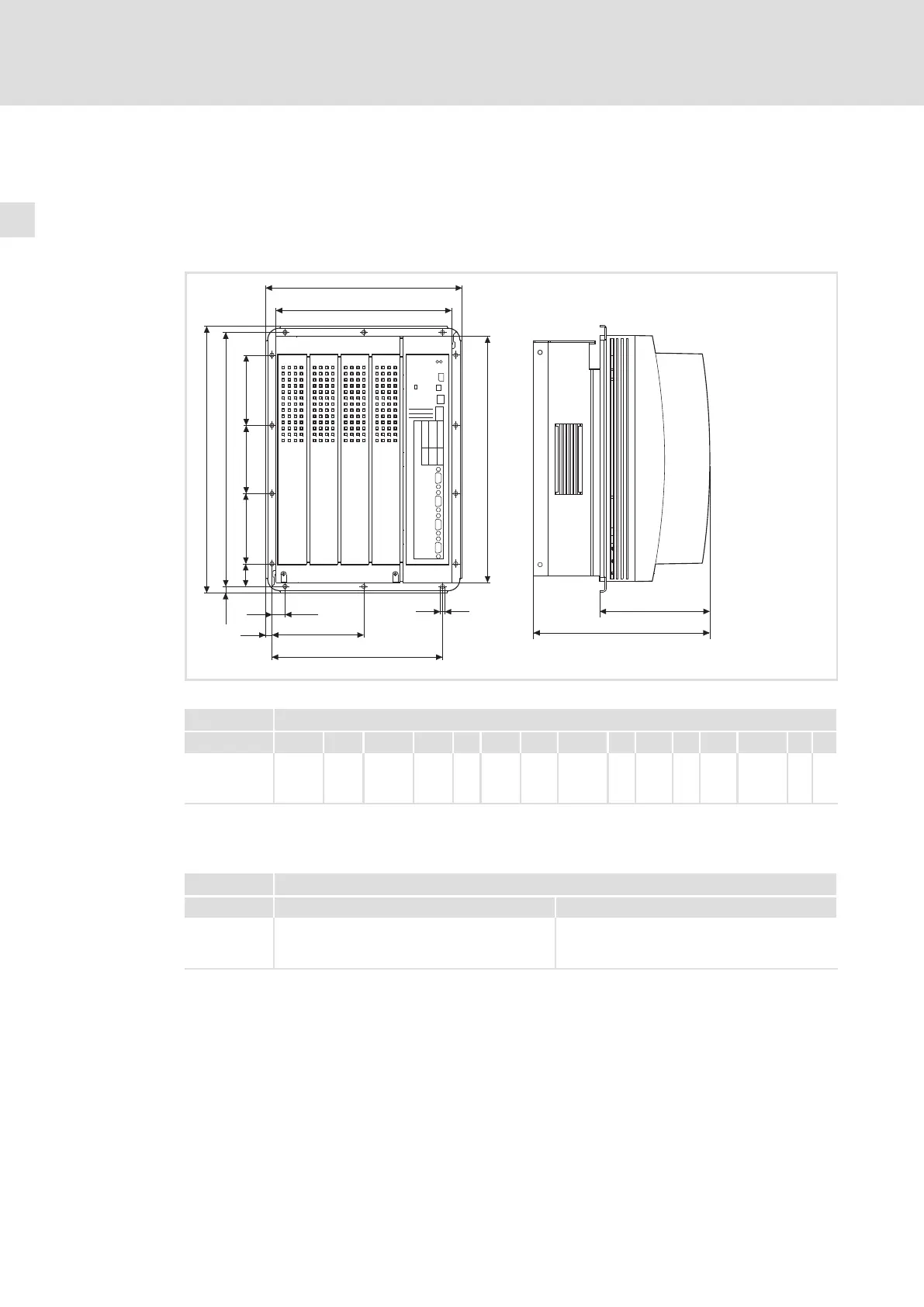

Fig. 4−5 Dimensions for thermally separated mounting 15 ... 30 kW
9300 Dimensions [mm]
Type a a1 b b1 c1 c2 c3 d d1 d2 d3 e
1)
e1 g h
EVS9327−Ex
EVS9328−Ex
EVS9329−Ex
279.5 250 379.5 350 19 131 243 361.5 32 100 97 250 159.5 6 9
1)
For a fieldbus module plugged onto X1, consider mounting space for connecting cables
Mounting cutout in control cabinet
9300 Dimensions [mm]
Type Width Height
EVS9327−Ex
EVS9328−Ex
EVS9329−Ex
236 336
