Appendix
Accessories
Rating for Lenze brake resistors
8
l
49
EDBMB935X EN 8.0
a
f
d
e
b
c
g
9350br_012

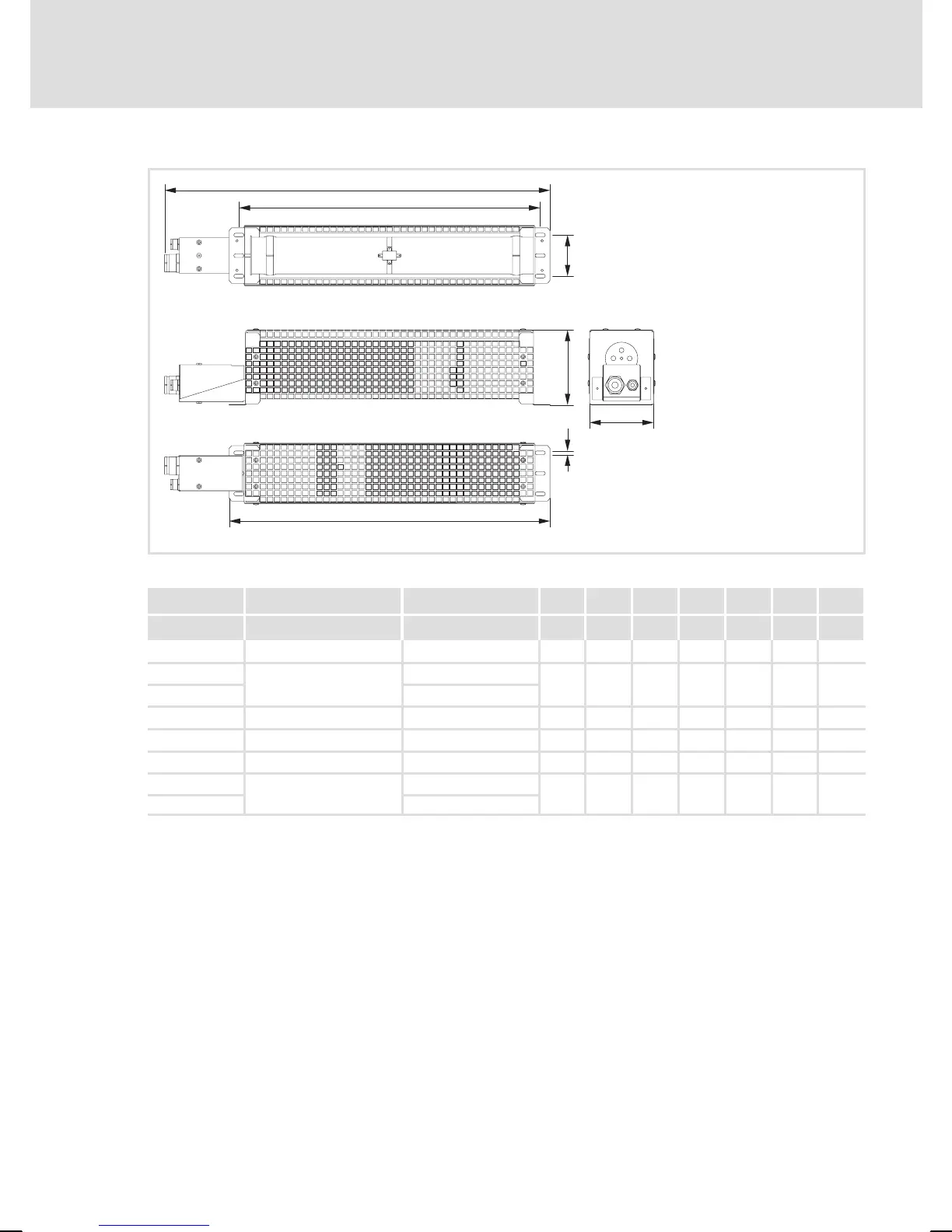

Fig. 13 Grid−protected wire−wound resistors with integrated temperature monitoring
Resistance Rated power Order No. a b c d e f g
[W] [W] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
180 300 ERBD180R300W 440 89 354 64 115 326 6.5
100
600
ERBD100R600W
640 89 554 64 115 526 6.5
82 ERBD082R600W
68 800 ERBD068R800W 540 177 454 150 115 426 13
47 1200 ERBD047R01K2 640 177 554 150 115 526 13
33 2000 ERBD033R02K0 640 265 554 240 115 526 13
22
3000
ERBD022R03K0
740 177 654 150 229 626 13
18 ERBD018R03K0
