8 Configuration
The drive system can be adapted to your application by configuring the power supply
module. These interfaces can be used to configure the power supply module:
ƒ X1 ˘ AIF (automation interface)
– For the connection of the keypad XT or communication modules ( 156) which
serves to access the codes.
ƒ X4 ˘ System bus interface (CAN)
– PC interface/HMI for parameter setting and diagnostics (e.g. with the Lenze
parameter setting and operating program "Global Drive Control")
or
– Interface to a decentralised I/O system
X4
4
5
X4
X14
X4
X14
X4
X14
Systembus (CAN)
MotionBus (CAN)
YZ
y
z
T V
S U
dABbc
p
SHPRG
Para
Code
Menu
0050
00
50.00_Hz
MCTRL-NOUT
X1 X1
X4
X14
X1 X1
0
1
3
X1
2
ECSXA028

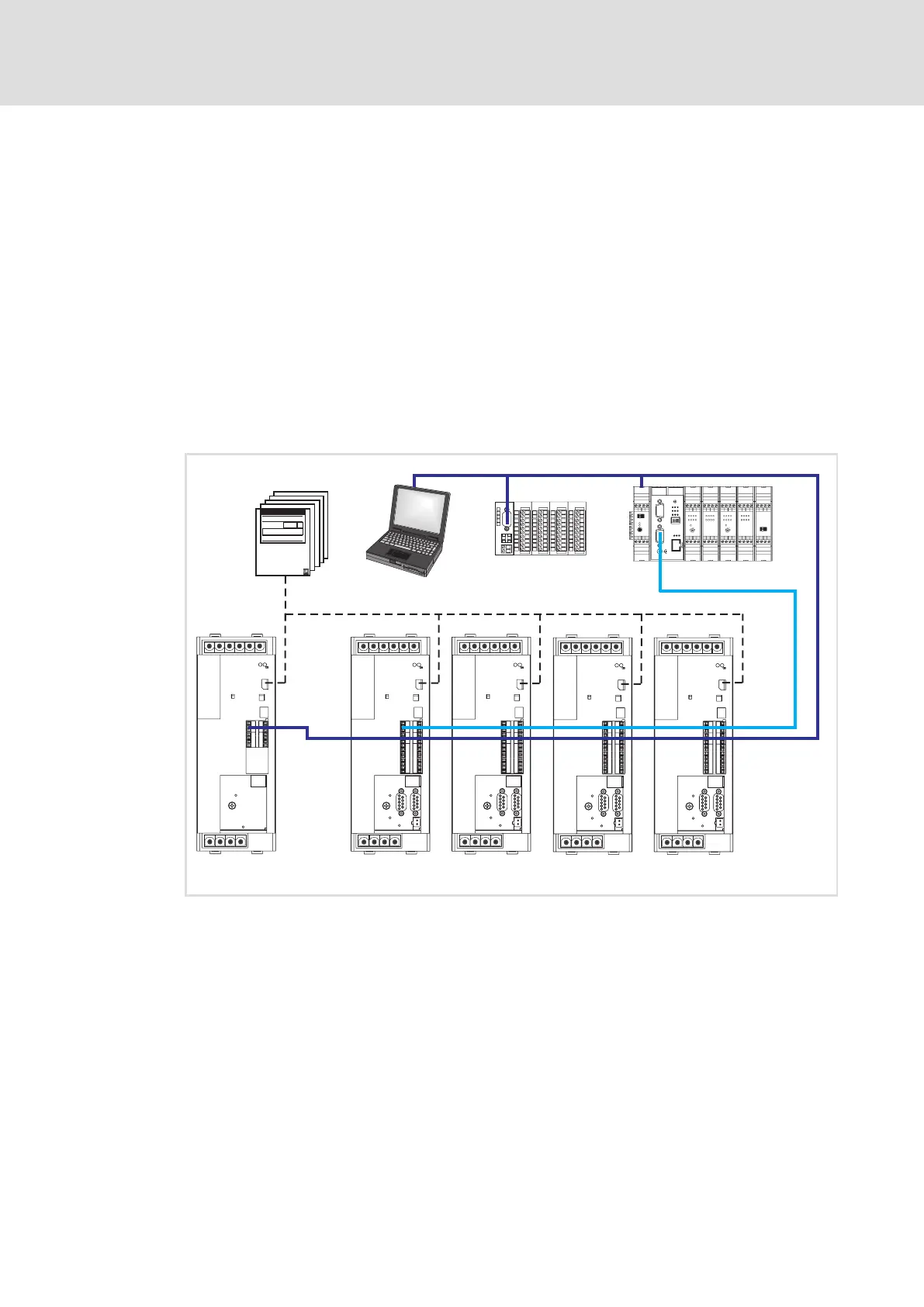

Fig. 8−1 Example: Wiring of the MotionBus (CAN) and system bus (CAN)
 Keypad XT or another communication module
 PC/laptop or HMI
 Decentralised I/O system
 Higher−level host system / MotionBus control
 ECSxE... power supply module
 ECSxS/P/M/A... axis module
