Installation électrique
Câblage du bus Système (CAN)
5
187
EDKCSEX064 DE/EN/FR 6.0
Câblage du Bus SystèmeCAN
ECS_COB004

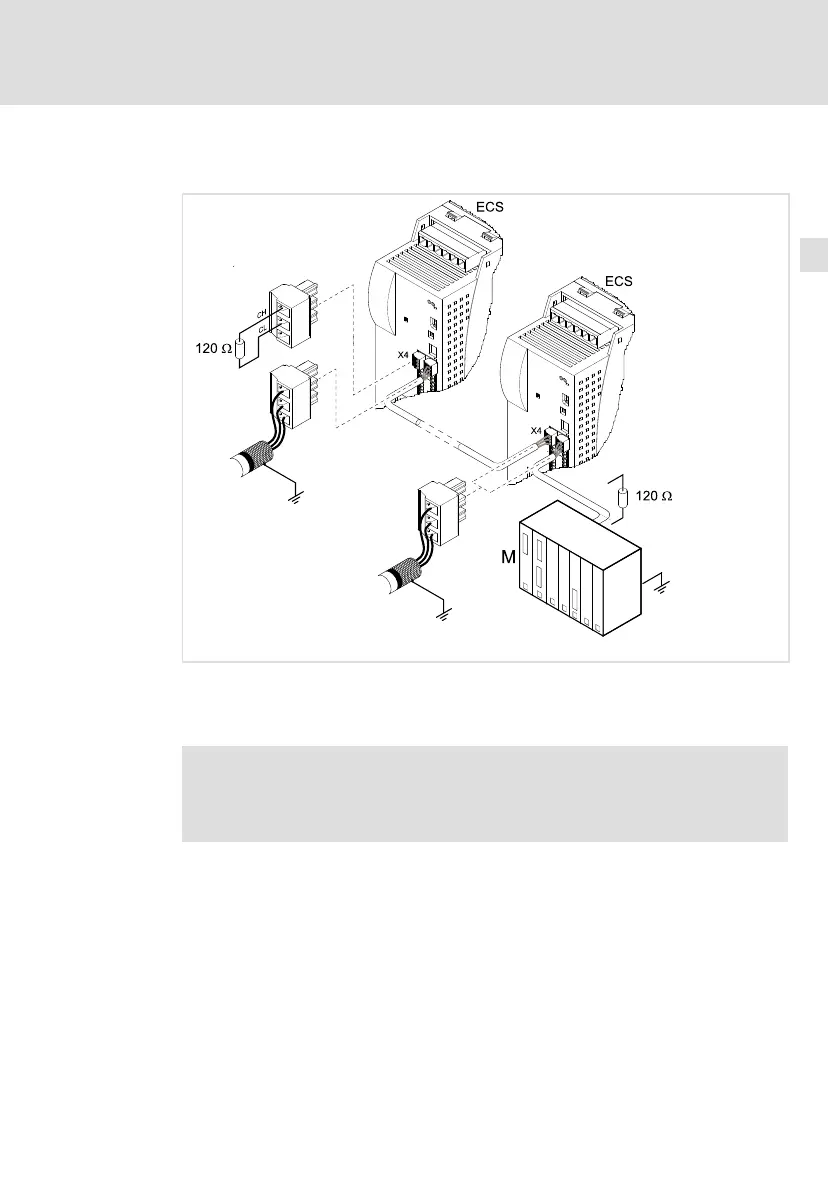

Fig.5−11 Exemple : câblage du Bus Système CAN via l’interface X4
ECS Module d’axe ECS
M Système de commande maître, exemple : ETC
Remarque importante !
Raccorder une résistance d’extrémité de bus (120 W) au niveau du
premier et du dernier nud du Bus Système CAN.
