Product description
Controls and displays
3
l
11
EDSMF2181IB EN 3.0
3 Product description
3.1 Controls and displays
2181FEW001D

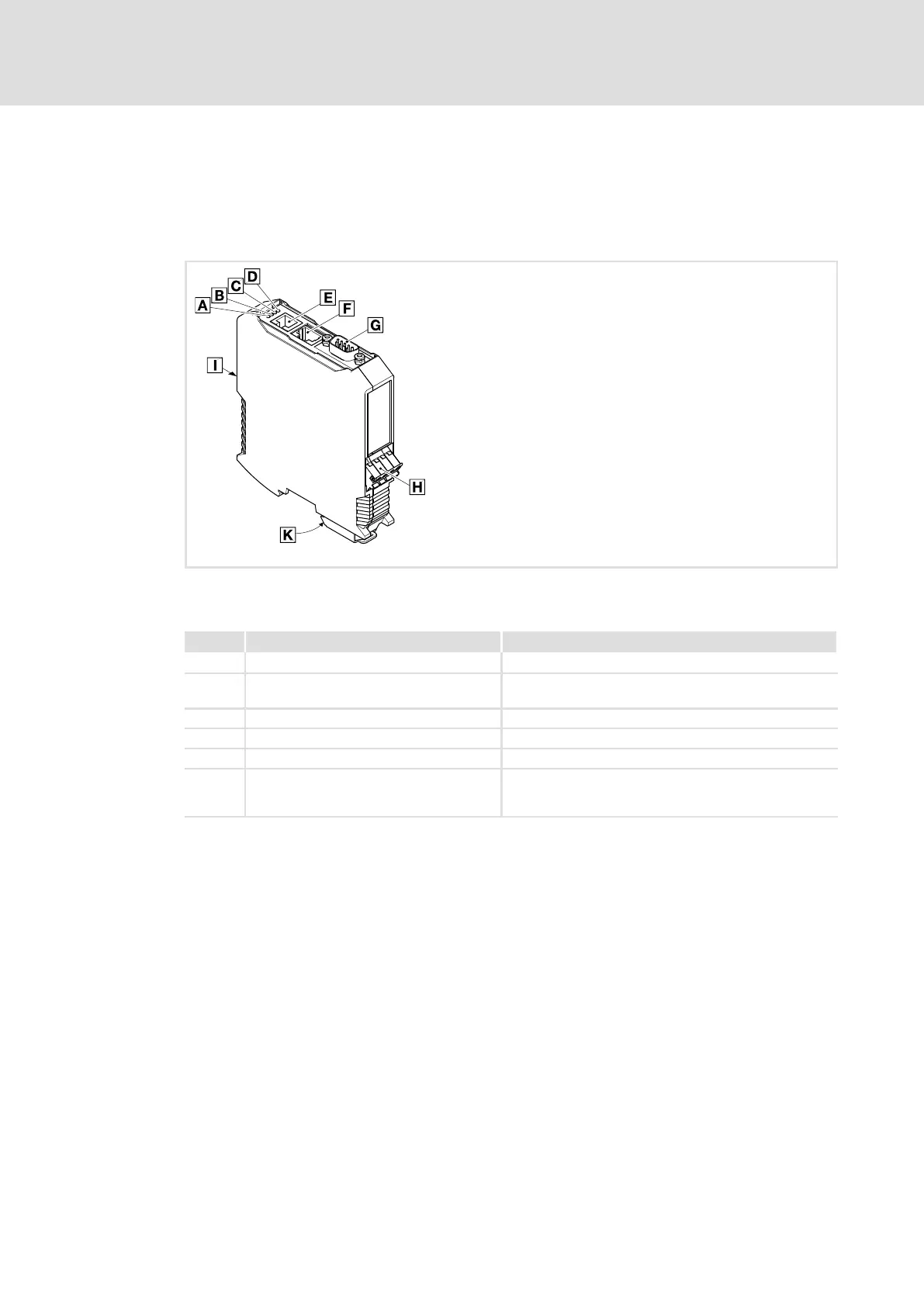

Fig. 3−1 Communication module ModemCAN 2181
Connections
Pos. Name Description
4 Telephone connection Socket (RJ11)
5 Connection at diagnostic interface of the
Servo Drive 9400
Socket (RJ69)
6 CAN connection Socket (RS232, male)
7 Connection for voltage supply Terminal strip with spring connection, 4−pole
8 External modem connection Socket (RS232, male)
: PE connection The plugged communication module is automatically
connected to the DIN rail.
The DIN rail must be connected with PE!
