Data transfer
Data transfer via the diagnostic interface
7
l
43
EDSMF2181IB EN 3.0

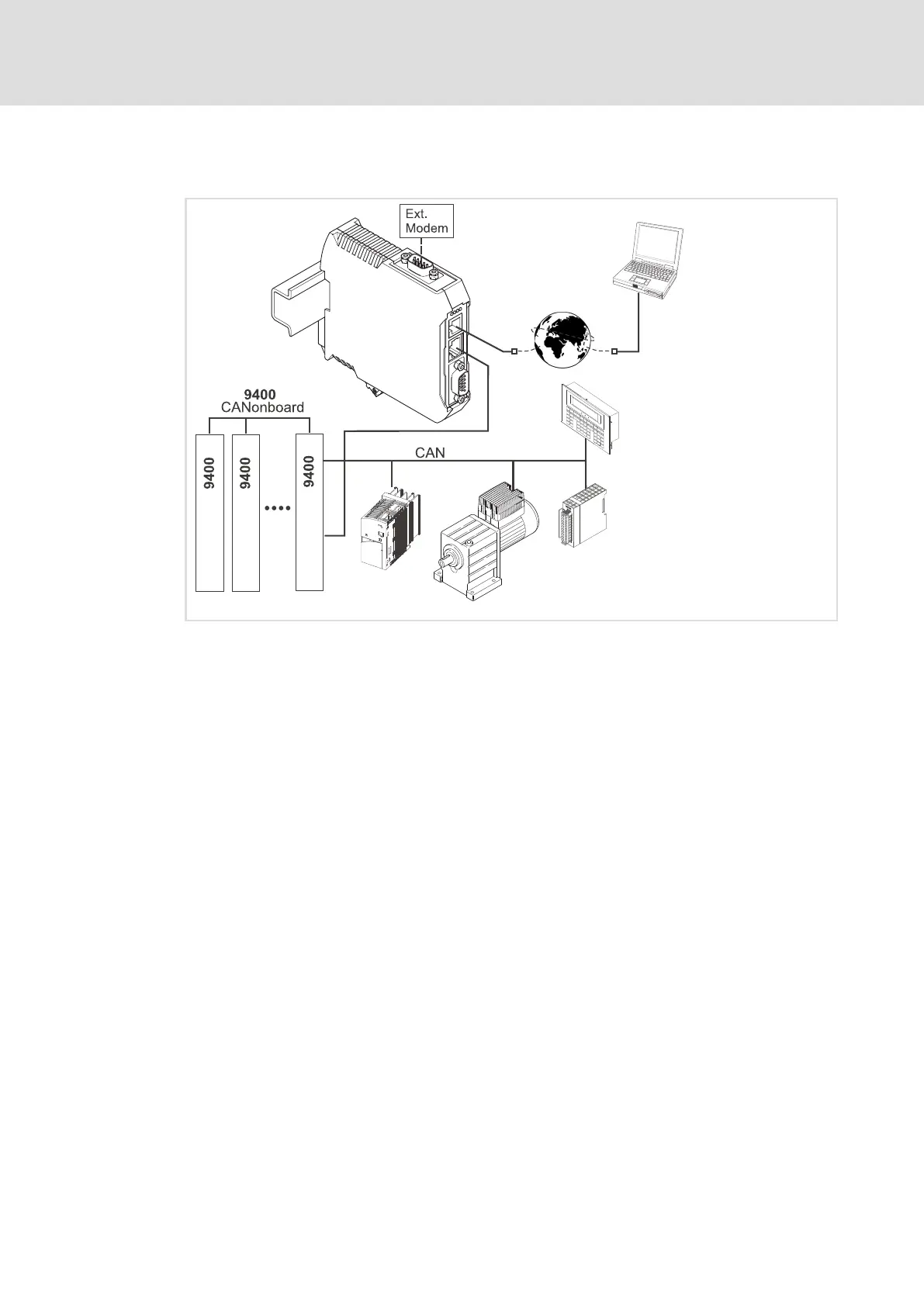

7.2 Data transfer via the diagnostic interface
2181FEW007
The inverters of the 9400 series are provided with a diagnostic interface. This is a point−to
point connection that supports hot plugging. It allows for the exchange of parameter data,
IEC61131 programs, and other application data.
The inverters of the 9400 series are provided with a routing function, so that lower−level
devices which are connected to each other via another bus can also be accessed via the
diagnostic interface.
