Lenze i500 Series

12
Electrical installaon
Operang Instrucons i510-Cabinet

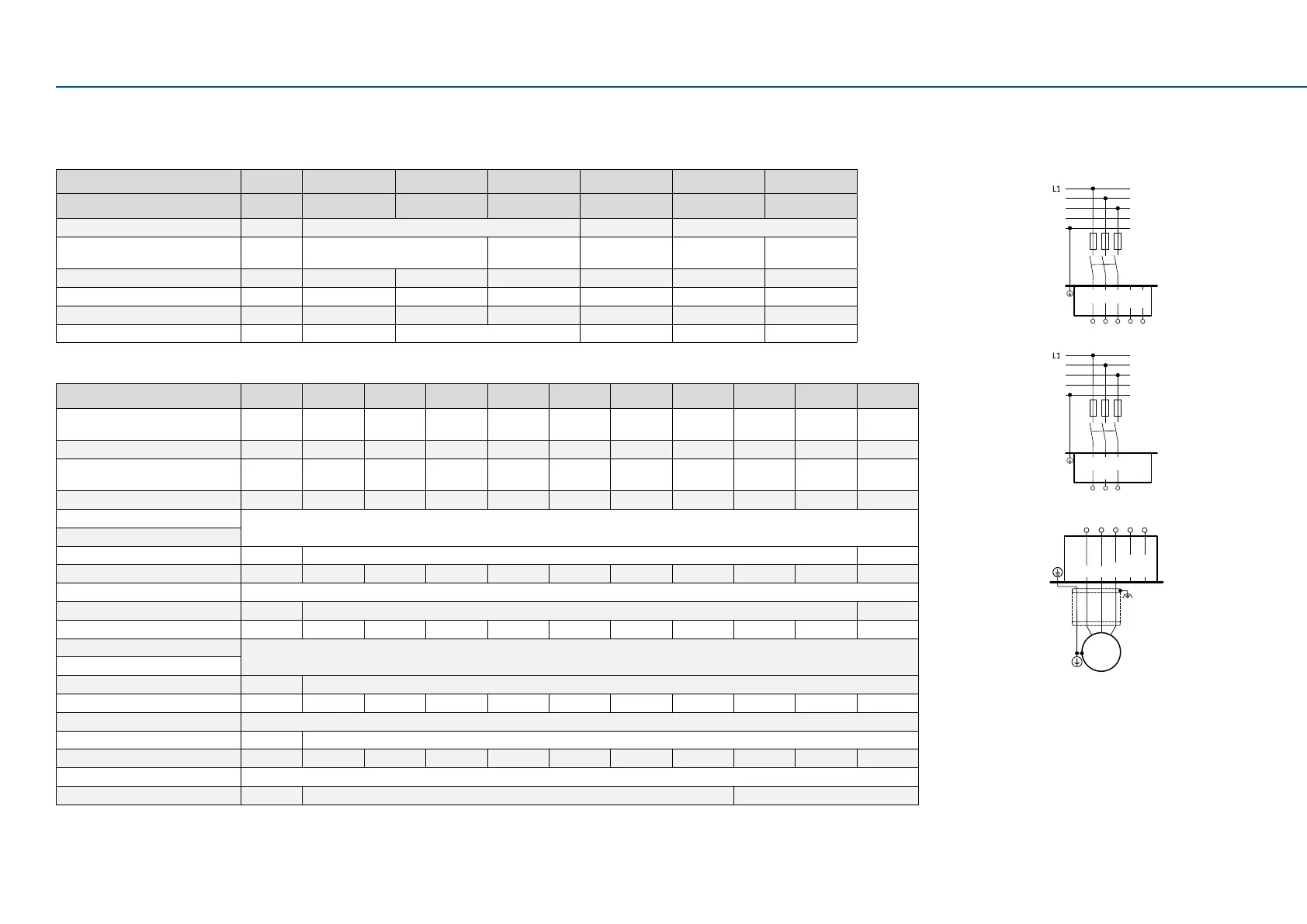

5.6 Three-phasemainsconnecon230/240V
Terminaldata,3-phase230/240V
I51AExxxD I51AExxxD I51AExxxC I51AExxxx I51AExxxD I51AxxxC
Inverter [kW] 0.25 ... 0.75 1.1 ... 2.2 4 ... 5.5 0.25 ... 5.5 0.25 ... 2.2 4 ... 5.5
Connecon Mains connecon X100 PE connecon Motor connecon X105
Connecon type Pluggable screw terminal
Screw terminal PE screw Pluggable screw
terminal
Screw terminal
Max. cable cross-secon mm² 2.5 6 6 6 2.5 6
Stripping length mm 8 8 9 10 8 9
Tightening torque Nm 0.5 0.7 0.5 2 0.5 0.5
Tools required 0.5 x 3.0 0.6 x 3.5 Torx 20 0.5 x 3.0 0.6 x 3.5
Fusingdata/performancedata
Inverter [kW] 0.25 0.37 0.55 0.75 1.1 1.5 2.2 4 5.5 7.5
Rated output current
(heavy duty)
A 1.7 2.4 3.2 4.2 6 7 9.6 16.5 23 -
Max. output current (15s) A 2.6 3.6 4.8 6.3 9 10.5 14.4 24.8 34.5 -
Rated output current
(light duty)
A - - - - - - - - 20.6 27.6
Max. output current (15s) A - - - - - - - - 33 46
Operaonwithoutmainschoke
Fuse
Characterisc gG/gL or gRL -
Max. rated current A 10 10 16 16 25 25 25 32 32 -
Circuit breaker
Characterisc B -
Max. rated current A 10 10 16 16 25 25 25 32 32 -
Operaonwithmainschoke
Fuse
Characterisc gG/gL or gRL
Max. rated current A 10 10 16 16 25 25 25 32 32 32
Circuit breaker
Characterisc B
Max. rated current A 10 10 16 16 25 25 25 32 32 32
Earth-leakage circuit breaker
3-phase mains connecon ≥ 30 mA, type B ≥ 300 mA, type B
Mainsconnecon
Valid for I51AExxxC inverter.
3/PE
AC 170 V ... 264 V
45 Hz ... 65 Hz
F1
…
F3
Q1
X100
L1 L2
PE
N
L3
L2
3/N/PE
AC 208 V ... 240 V
L3
n.c. n.c.
Valid for I51AExxxD inverter.
3/PE
AC 170 V ... 264 V
45 Hz ... 65 Hz
F1
…
F3
Q1
X100
L1
L2/N
L3
PE
N
L3
L2
3/N/PE
AC 208 V ... 240 V
Motorconnecon
X105
U V W Rb1 Rb2
M
3~
