Mechanical installation
Mounting
Breather position, oil filling screw and drain plug
4
l
37
BA 12.0023−EN 6.0

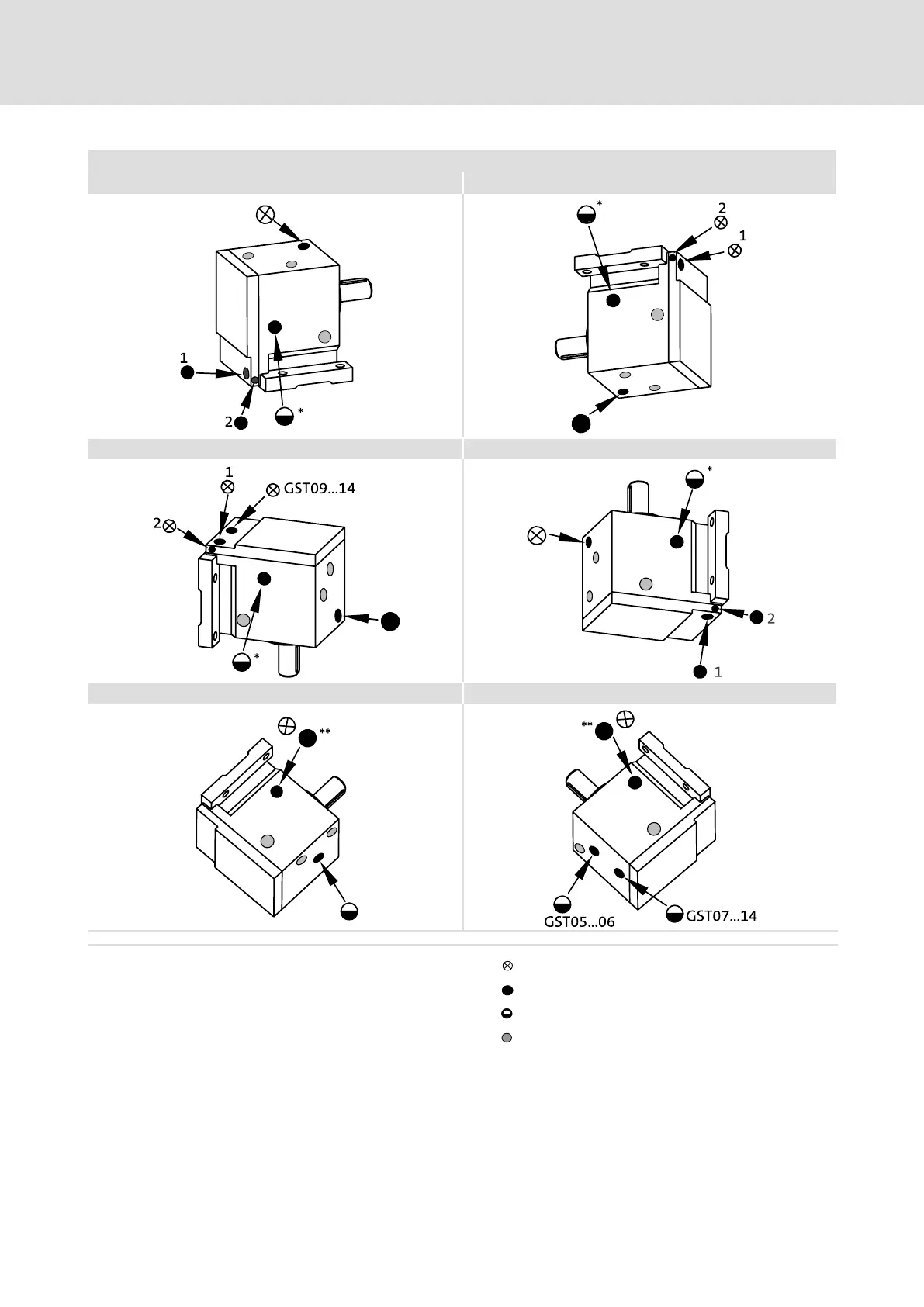

Helical gearbox GST 05 ... 14−2, foot mounting
A B
C D
E F
GT−GNG−GST−2−001_A−F.iso/dms
A...F Mounting positions Breathing / oil filler plug
*
on both sides Oil drain plug
**
opposite Oil−control plug
Pos. 1 or 2 depending on version
Sealing plug without function
