Mechanical installation
Mounting

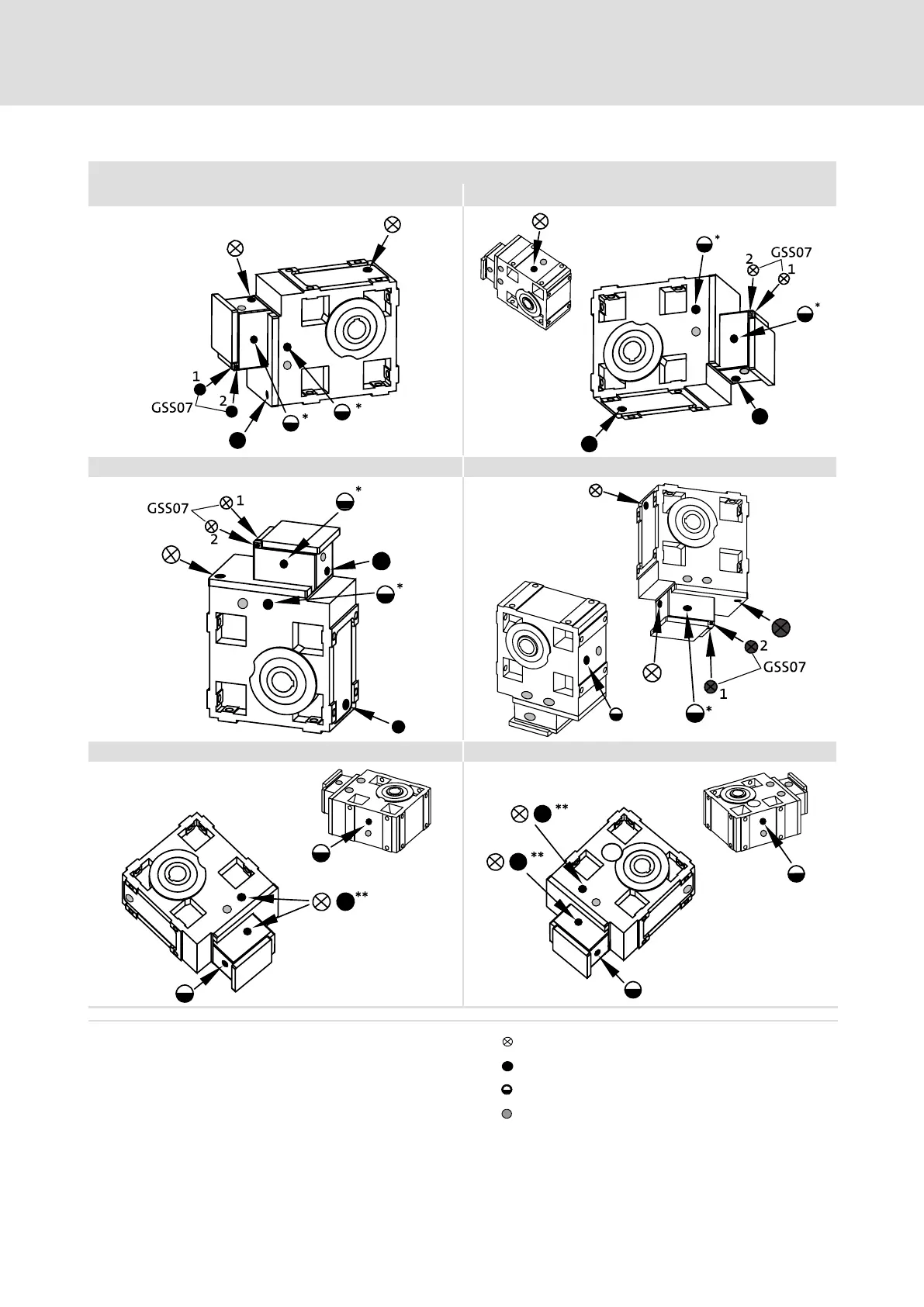

Breather position, oil filling screw and drain plug
4
l
45
BA 12.0023−EN 6.0
Helical−worm gearbox GSS 06...07−3
A B
C D
E F
GT−GNG−GSS−3−001_A−F.iso/dms
A...F Mounting positions Breathing / oil filler plug
*
on both sides Oil drain plug
**
opposite Oil−control plug
Pos. 1 or 2 depending on version
Sealing plug without function
