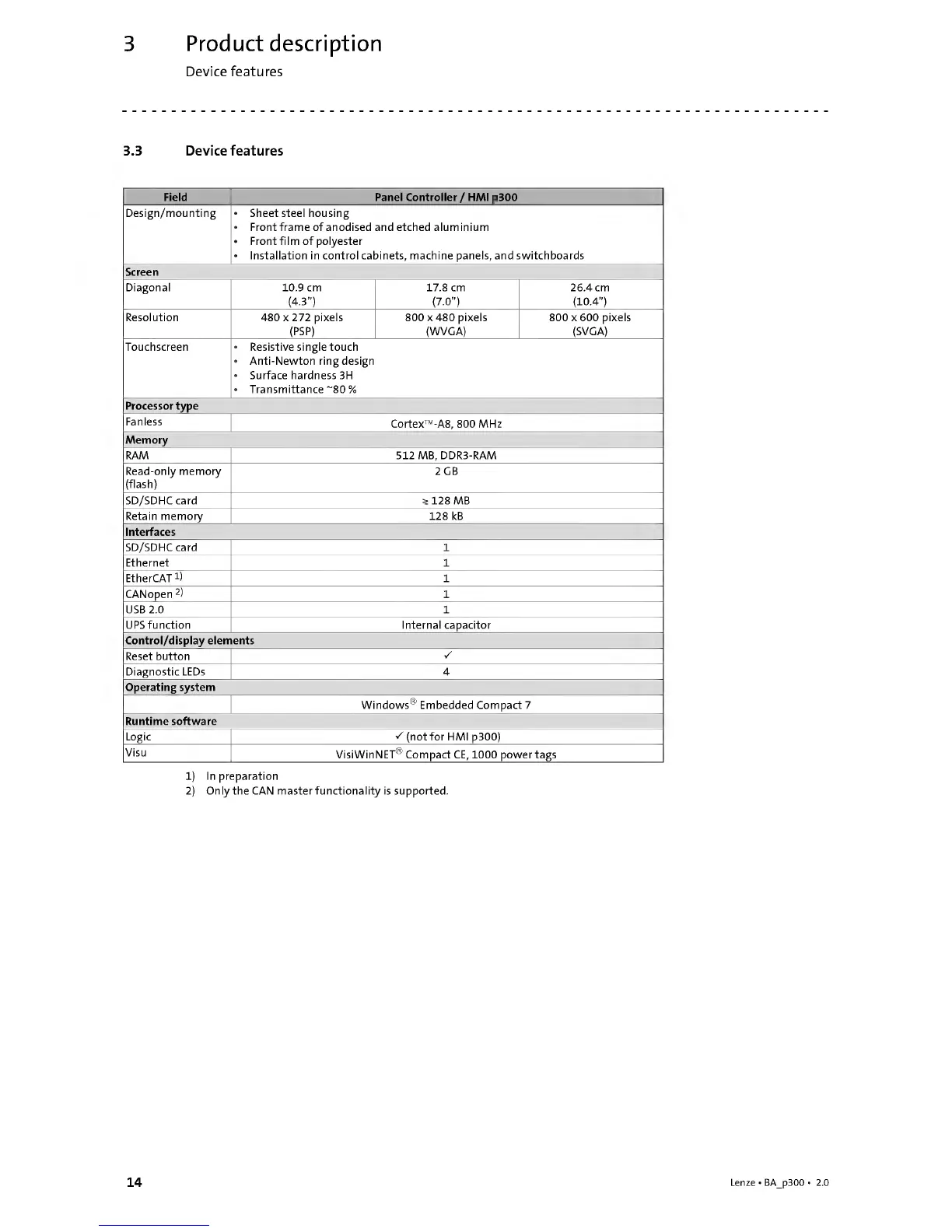

3 Product description
Device features
3.3 Device features
Field Panel Controller / HMI p300
Design/mounting • Sheet steel housing
• Front frame of anodised and etched aluminium
• Front film of polyester
• Installation in control cabinets, machine panels, and switchboards
Screen
Diagonal 10.9 cm
(4.3”)
17.8 cm
(7.0”)
26.4 cm
(10.4”)
Resolution 480 x 272 pixels
(PSP)
800 x 480 pixels
(WVGA)
800 x 600 pixels
(SVGA)
Touchscreen • Resistive single touch
• Anti-Newton ring design
• Surface hardness 3H
• Transmittance ~80 %
Processor type
Fanless
Cortex™-A8, 800 MHz
Memory
RAM 512 MB, DDR3-RAM
Read-only memory
(flash)
2 GB
SD/SDHC card > 128 MB
Retain memory 128 kB
Interfaces
SD/SDHC card 1
Ethernet 1
EtherCAT 1 1
CANopen 2) 1
USB 2.0 1
UPS function Internal capacitor
Control/display elements
Reset button
V
Diagnostic LEDs 4
Operating system
Windows® Embedded Compact 7
Runtime software
Logic V (not for HMI p300)
Visu
VisiWinNET® Compact CE, 1000 power tags
1) In preparation
2) Only the CAN master functionality is supported.
14
Lenze • BA_p300 • 2.0
