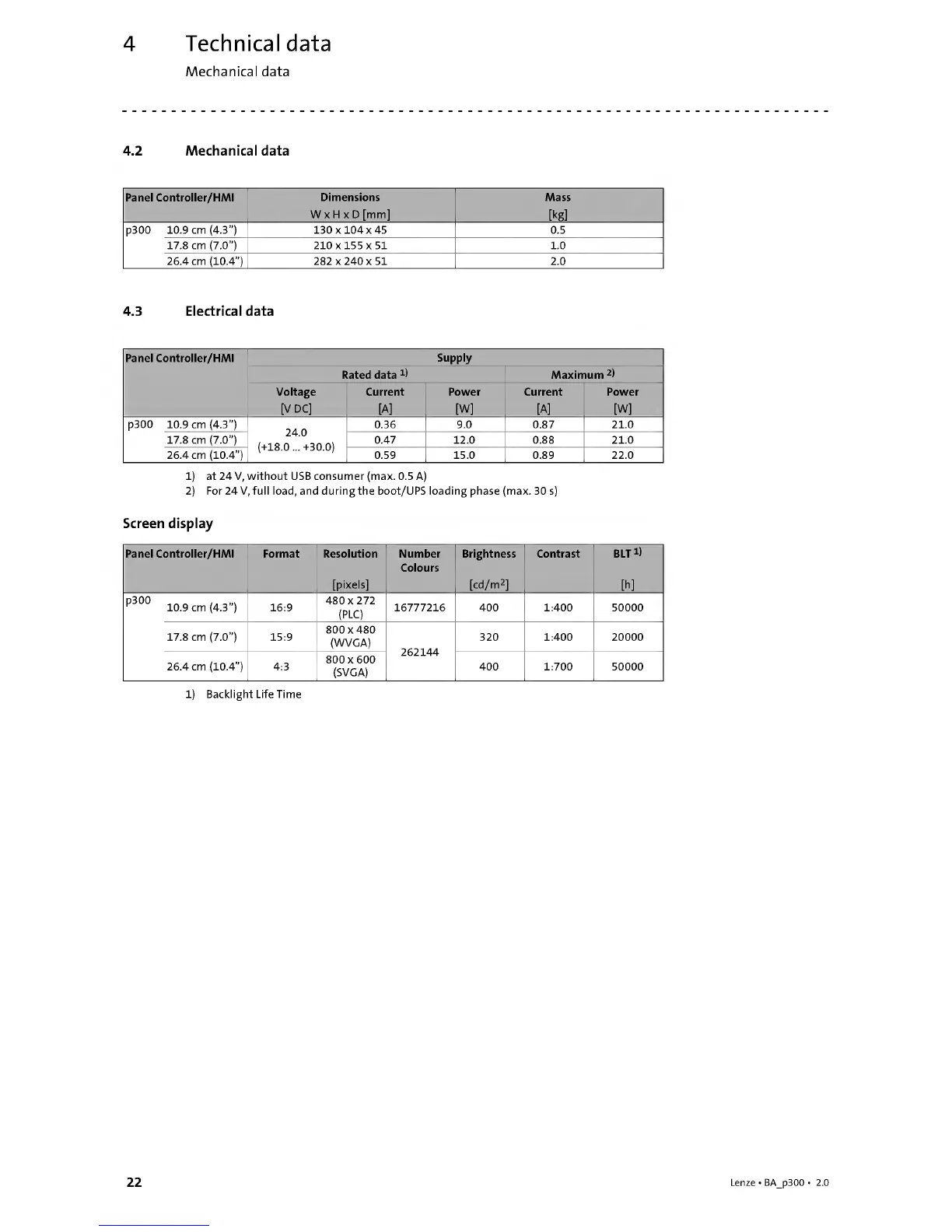

4 Technical data
Mechanical data
4.2 Mechanical data
Panel Controller/HMI
Dimensions Mass
W x H x D [mm]
[kg]
p300 10.9 cm (4.3”) 130 x 104 x 45 0.5
17.8 cm (7.0”) 210 x 155 x 51 1.0
26.4 cm (10.4”) 282 x 240 x 51 2.0
4.3 Electrical data
Panel Controller/HMI
Supply
Rated data 1) Maximum 2)
Voltage
[V DC]
Current
[A]
Power
[W]
Current
[A]
Power
[W]
p300 10.9 cm (4.3”)
24.0
(+18.0 ... +30.0)
0.36 9.0 0.87 21.0
17.8 cm (7.0”) 0.47 12.0 0.88 21.0
26.4 cm (10.4”) 0.59 15.0 0.89 22.0
1) at 24 V, without USB consumer (max. 0.5 A)
2) For 24 V, full load, and during the boot/UPS loading phase (max. 30 s)
Screen display
Panel Controller/HMI Format Resolution
[pixels]
Number
Colours
Brightness
[cd/m2]
Contrast BLT 1)
[h]
p300 10.9 cm (4.3”) 16:9
480x 272
(PLC)
16777216 400 1:400 50000
17.8 cm (7.0”) 15:9
800x 480
(WVGA)
262144
320 1:400 20000
26.4 cm (10.4”) 4:3
800x 600
(SVGA)
400 1:700 50000
1) Backlight Life Time
22
Lenze • BA_p300 • 2.0
