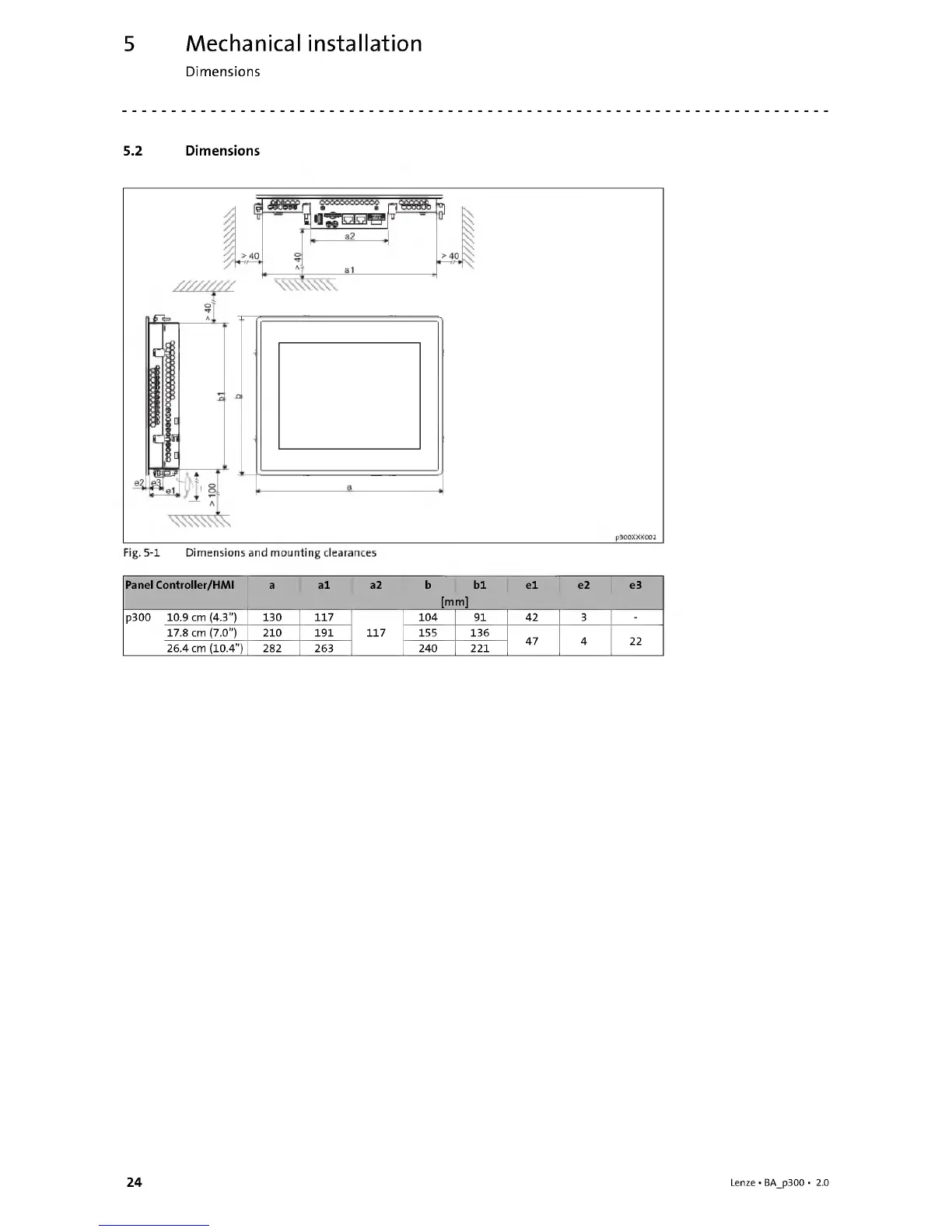

5 Mechanical installation
Dimensions
5.2 Dimensions
Panel Controller/HMI a a1 a2 b b1 e1 e2 e3
[mm]
p300 10.9 cm (4.3”) 130 117 104 91 42 3 -
17.8 cm (7.0”) 210 191 117 155 136
47 4 22
26.4 cm (10.4”) 282 263 240 221
24
Lenze • BA_p300 • 2.0
