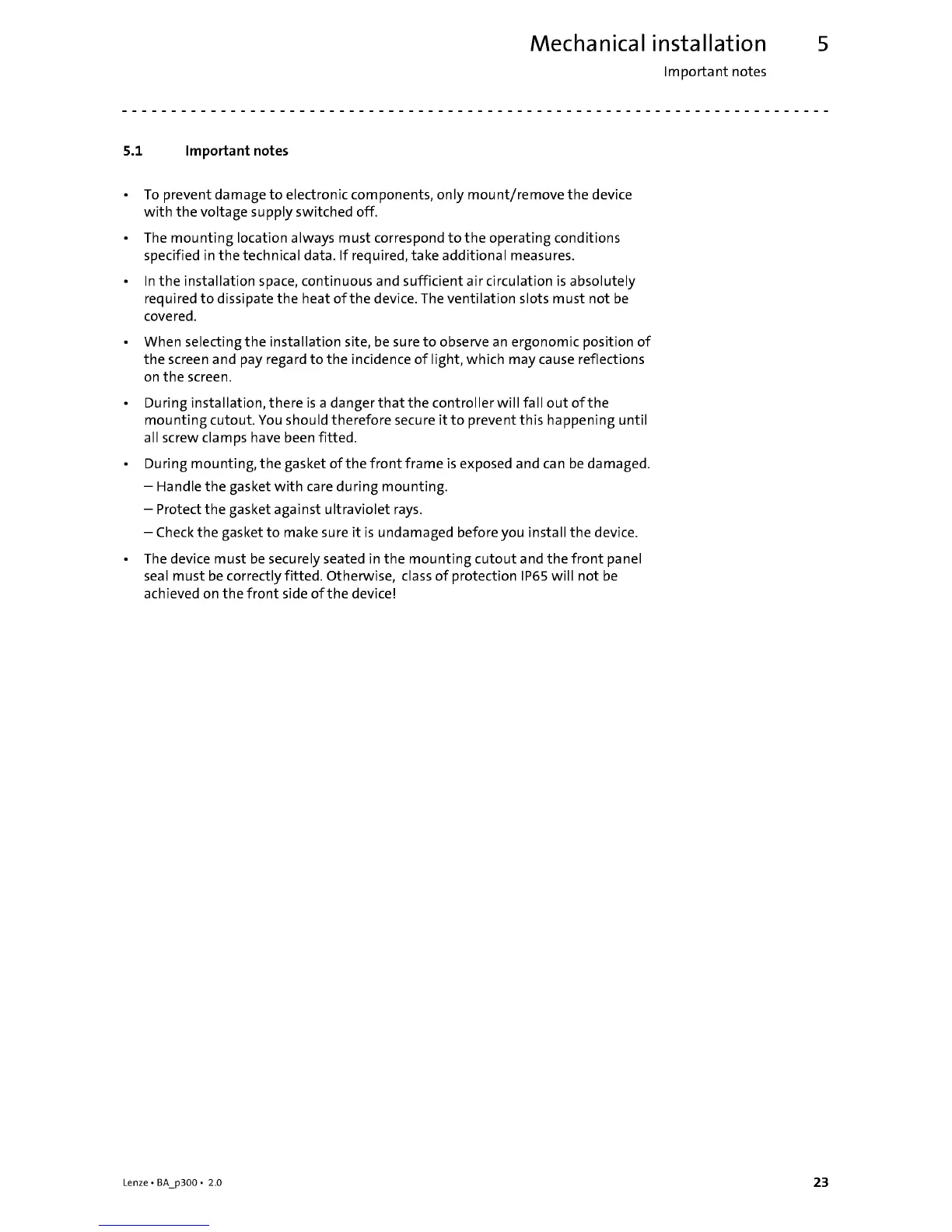

Mechanical installation 5
Important notes
5.1 Important notes
• To prevent damage to electronic components, only mount/remove the device
with the voltage supply switched off.
• The mounting location always must correspond to the operating conditions
specified in the technical data. If required, take additional measures.
• In the installation space, continuous and sufficient air circulation is absolutely
required to dissipate the heat of the device. The ventilation slots must not be
covered.
• When selecting the installation site, be sure to observe an ergonomic position of
the screen and pay regard to the incidence of light, which may cause reflections
on the screen.
• During installation, there is a danger that the controller will fall out of the
mounting cutout. You should therefore secure it to prevent this happening until
all screw clamps have been fitted.
• During mounting, the gasket of the front frame is exposed and can be damaged.
- Handle the gasket with care during mounting.
- Protect the gasket against ultraviolet rays.
- Check the gasket to make sure it is undamaged before you install the device.
• The device must be securely seated in the mounting cutout and the front panel
seal must be correctly fitted. Otherwise, class of protection IP65 will not be
achieved on the front side of the device!
Lenze • BA_p300 • 2.0
23
