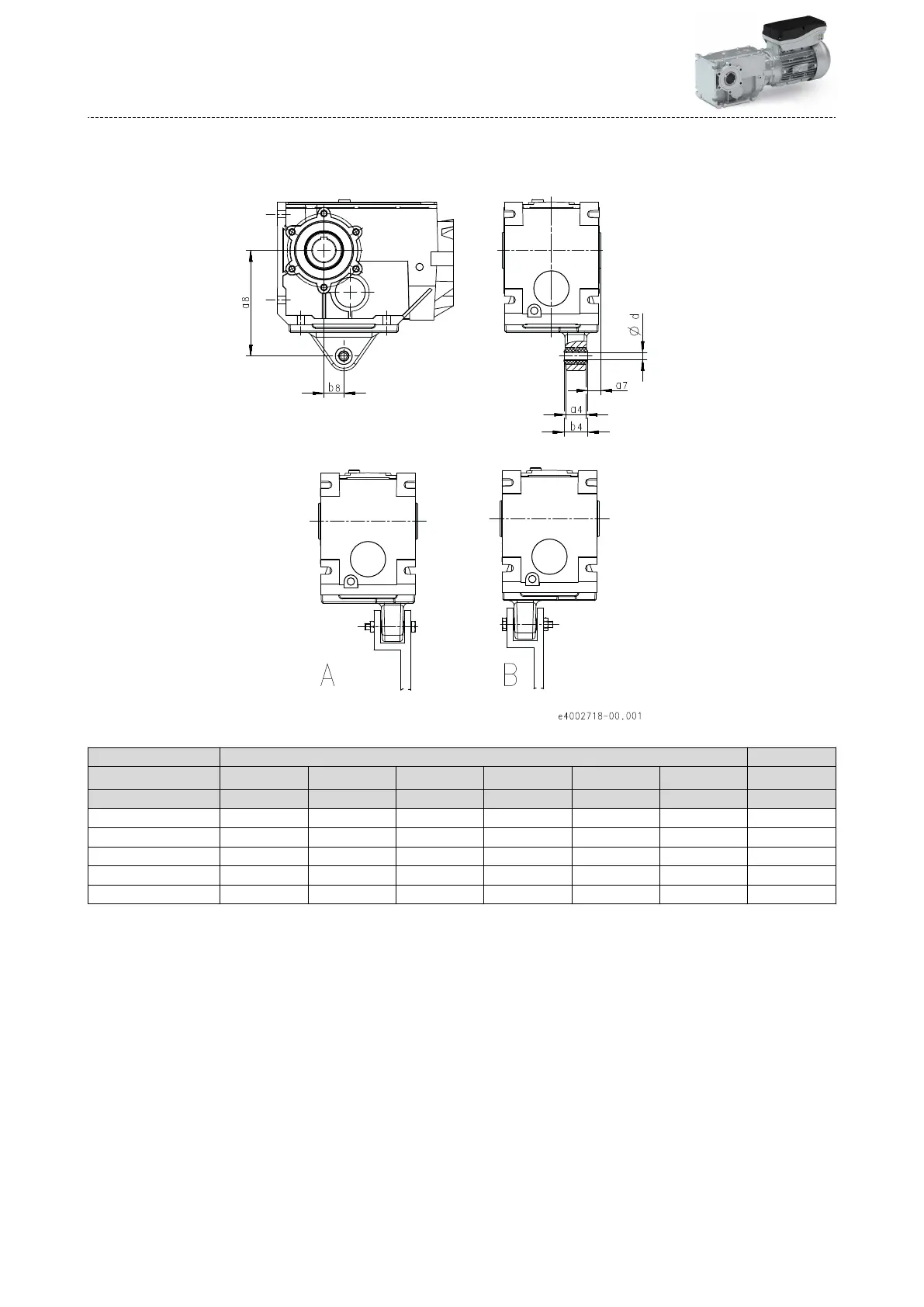

Lenze Smart Motor m300-E - Page 82

g500-B600 ... B4300
Gearbox Dimensions Mass
d a
8
b
8
a
4
b
4
a
7
m
mm mm mm mm mm mm kg
g500-B600 16.4 192 40.0 55.0 60.0 18.0 2.8
g500-B820 16.4 200 45.0 55.0 60.0 25.0 3.0
g500-B1500 16.4 250 52.5 55.0 60.0 25.0 4.3
g500-B2700 25.0 300 60.0 72.0 80.0 30.0 10.0
g500-B4300 25.0 350 70.0 92.0 100 40.0 13.0
