Lenze Smart Motor m300-E - Page 88

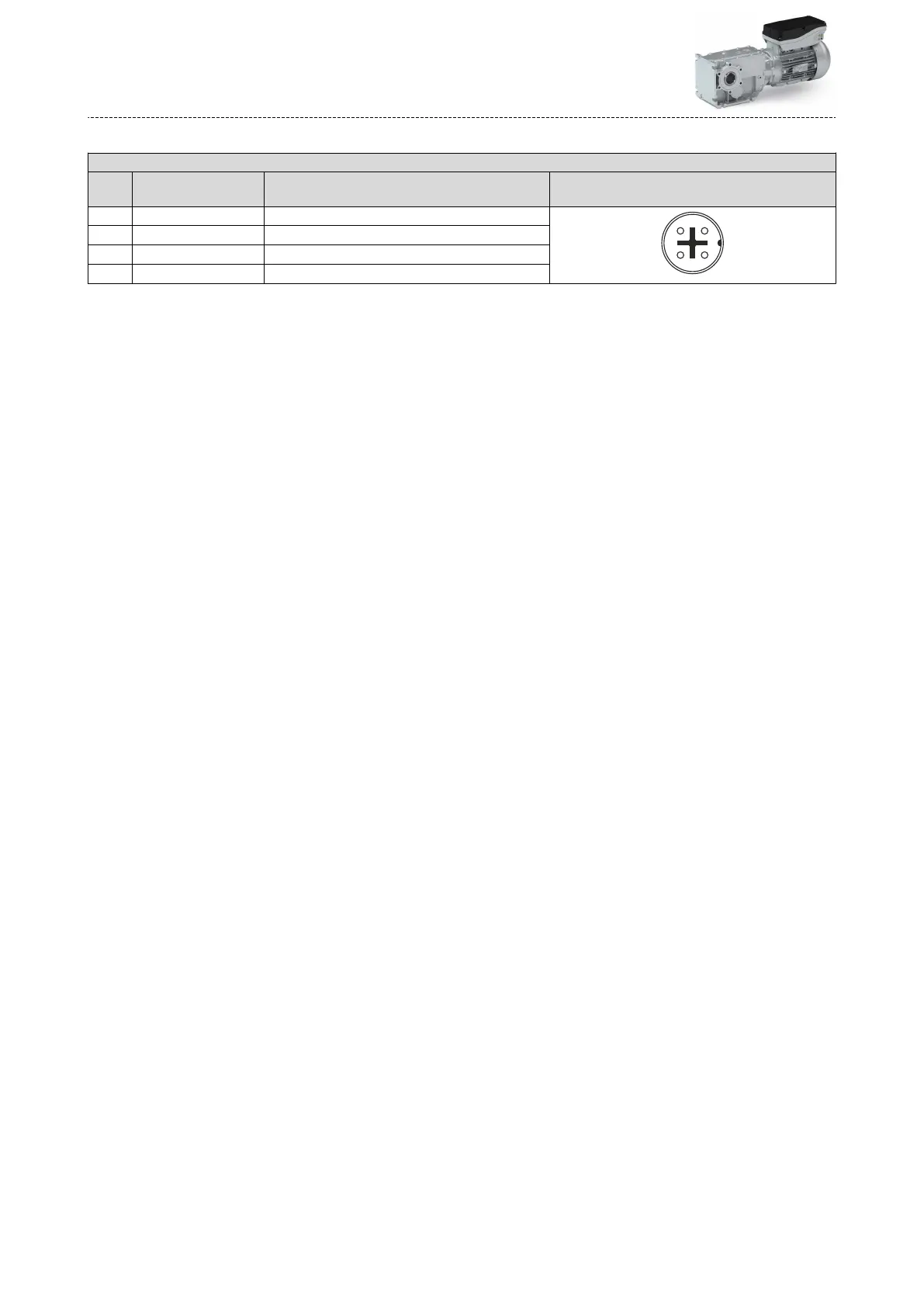

Control terminal X2
Pin assignment for M12 connector A coded, pins
Contac
t
Name Meaning
1 24V 24 V-supply (DO1 supply)
1
2
4
3
2 DI3 Digital input 3 (reference X1;3 = GND-I)
3 GND-O Mass of digital output
4 DO1 Digital output 1
