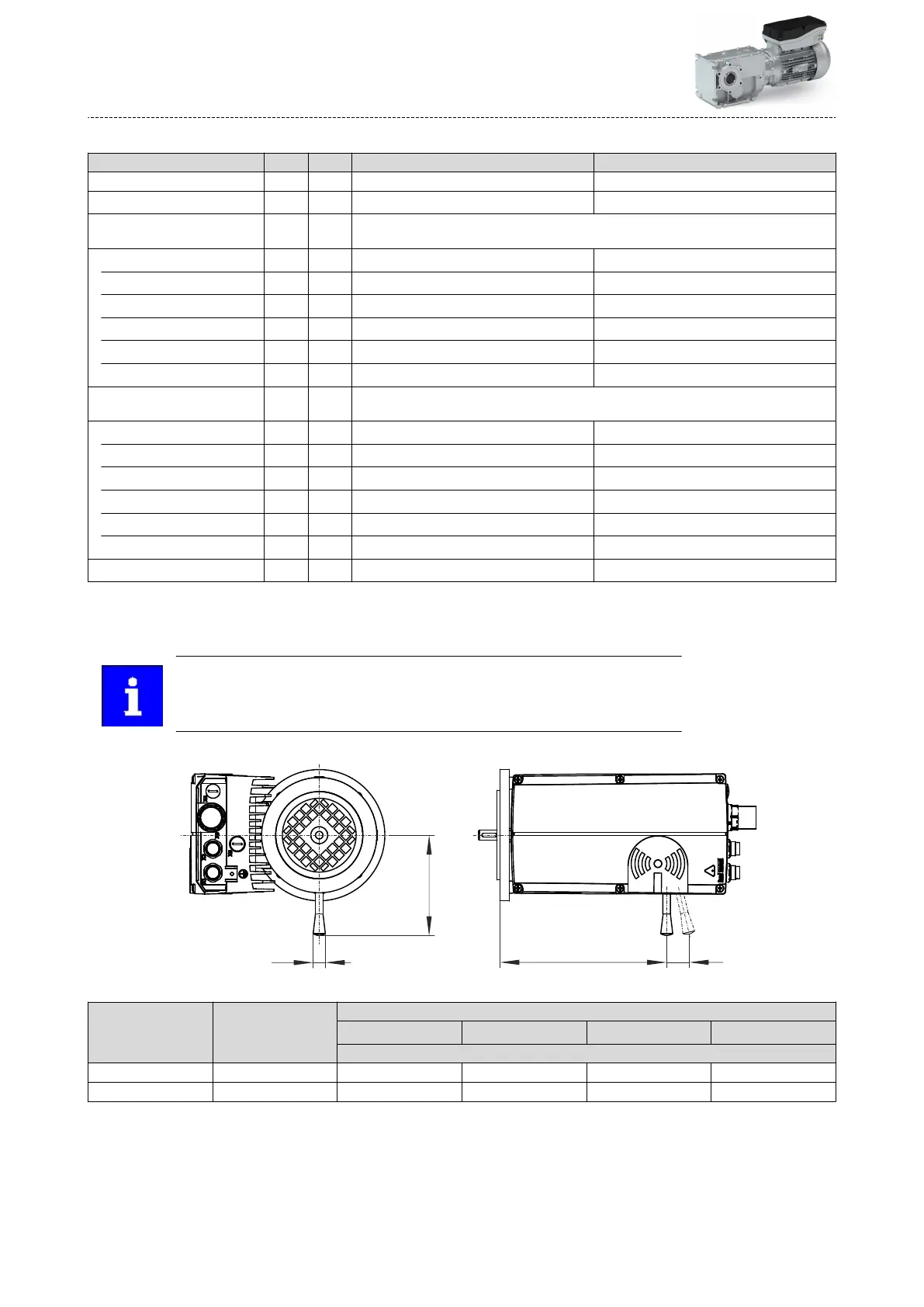

Lenze Smart Motor m300-E - Page 90

Rated data with standard braking torque
Motor MSEMABR063-42 MSEMABR080-32
Brake size 06 08
Power input
P
in
kW 0.020 0.025
Braking torque
a
t output speed
100 rpm
M
B
Nm 4.00 8.00
1000 rpm
M
B
Nm 3.70 7.20
1200 rpm
M
B
Nm 3.60 7.00
1500 rpm
M
B
Nm 3.50 6.80
1800 rpm
M
B
Nm 3.40 6.70
2600 rpm
M
B
Nm 3.20 6.30
Maximum switching energy
at output speed
100 rpm
Q
E
KJ 3.00 7.50
1000 rpm
Q
E
KJ 3.00 7.50
1200 rpm
Q
E
KJ 3.00 7.50
1500 rpm
Q
E
KJ 3.00 7.50
1800 rpm
Q
E
KJ 3.00 7.50
2600 rpm
Q
E
KJ 3.00 7.50
Transion operang frequency
S
hü
1/h 79.0 50.0
Manual release lever
By using the manual release lever, the brake can be released manually in deenergised
oper
ang state. The manual release makes posioning and maintenance work easier.
Please specify the posion of the manual r
elease lever (3,4 or 5) when ordering.
Manual release lever and terminal box are not possible in the same posion (2)!
Δk
k
5
d
12
h
5
2 4
3
5
Motor
Brake size
Dimensions
k
5
Δ k
h
5
d
12
mm
MSEMABR063-42 06 178 29 107 13
MSEMABR080-32 08 224 27 116 13
Product extensions
Br
akes
Spring-applied brakes
