LD5208 USER MANUAL, REV. 0: NOVEMBER 2005
10

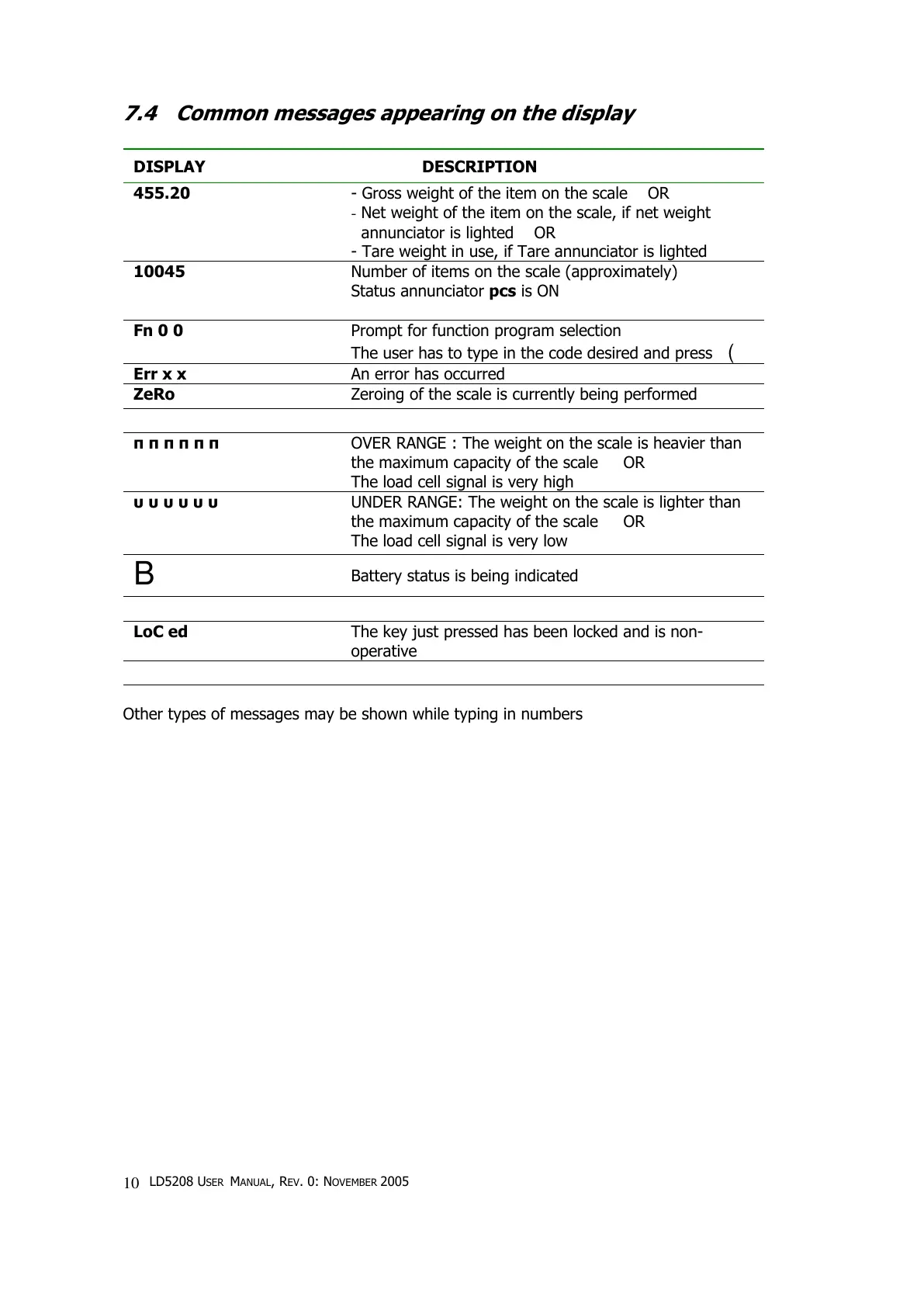

7.4 Common messages appearing on the display
DISPLAY DESCRIPTION
455.20 - Gross weight of the item on the scale OR
- Net weight of the item on the scale, if net weight
annunciator is lighted OR
- Tare weight in use, if Tare annunciator is lighted
10045 Number of items on the scale (approximately)
Status annunciator pcs is ON
Fn 0 0 Prompt for function program selection
The user has to type in the code desired and press (
Err x x An error has occurred
ZeRo Zeroing of the scale is currently being performed
π π π π π π OVER RANGE : The weight on the scale is heavier than
the maximum capacity of the scale OR
The load cell signal is very high
υ υ υ υ υ υ UNDER RANGE: The weight on the scale is lighter than
the maximum capacity of the scale OR
The load cell signal is very low
B
Battery status is being indicated
LoC ed The key just pressed has been locked and is non-
operative
Other types of messages may be shown while typing in numbers
