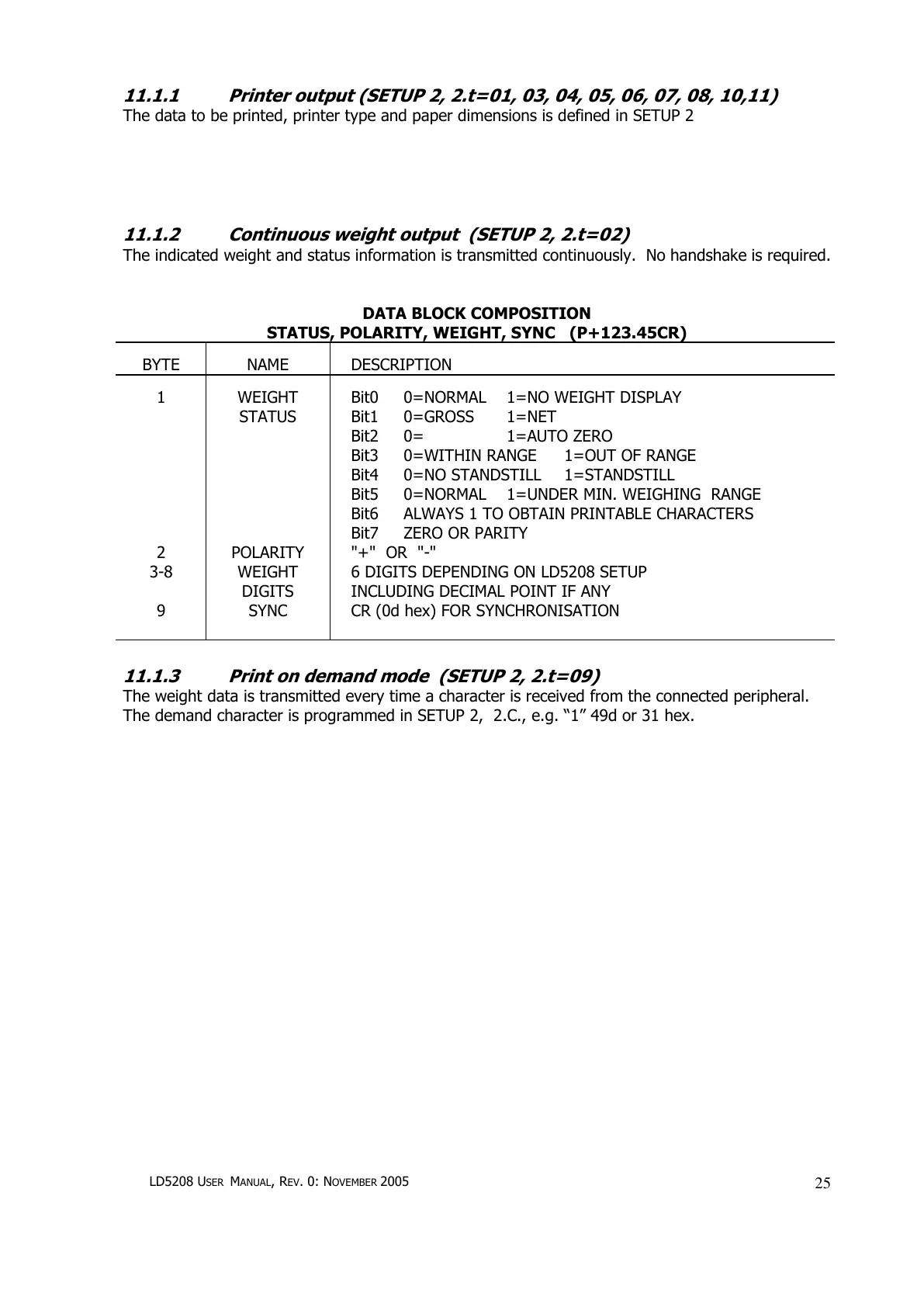

11.1.1 Printer output (SETUP 2, 2.t=01, 03, 04, 05, 06, 07, 08, 10,11)
The data to be printed, printer type and paper dimensions is defined in SETUP 2
11.1.2 Continuous weight output (SETUP 2, 2.t=02)
The indicated weight and status information is transmitted continuously. No handshake is required.
DATA BLOCK COMPOSITION
STATUS, POLARITY, WEIGHT, SYNC (P+123.45CR)
BYTE NAME DESCRIPTION
1
2
3-8
9
WEIGHT
STATUS
POLARITY
WEIGHT
DIGITS
SYNC
Bit0 0=NORMAL 1=NO WEIGHT DISPLAY
Bit1 0=GROSS 1=NET
Bit2 0= 1=AUTO ZERO
Bit3 0=WITHIN RANGE 1=OUT OF RANGE
Bit4 0=NO STANDSTILL 1=STANDSTILL
Bit5 0=NORMAL 1=UNDER MIN. WEIGHING RANGE
Bit6 ALWAYS 1 TO OBTAIN PRINTABLE CHARACTERS
Bit7 ZERO OR PARITY
"+" OR "-"
6 DIGITS DEPENDING ON LD5208 SETUP
INCLUDING DECIMAL POINT IF ANY
CR (0d hex) FOR SYNCHRONISATION
11.1.3 Print on demand mode (SETUP 2, 2.t=09)
The weight data is transmitted every time a character is received from the connected peripheral.
The demand character is programmed in SETUP 2, 2.C., e.g. “1” 49d or 31 hex.
