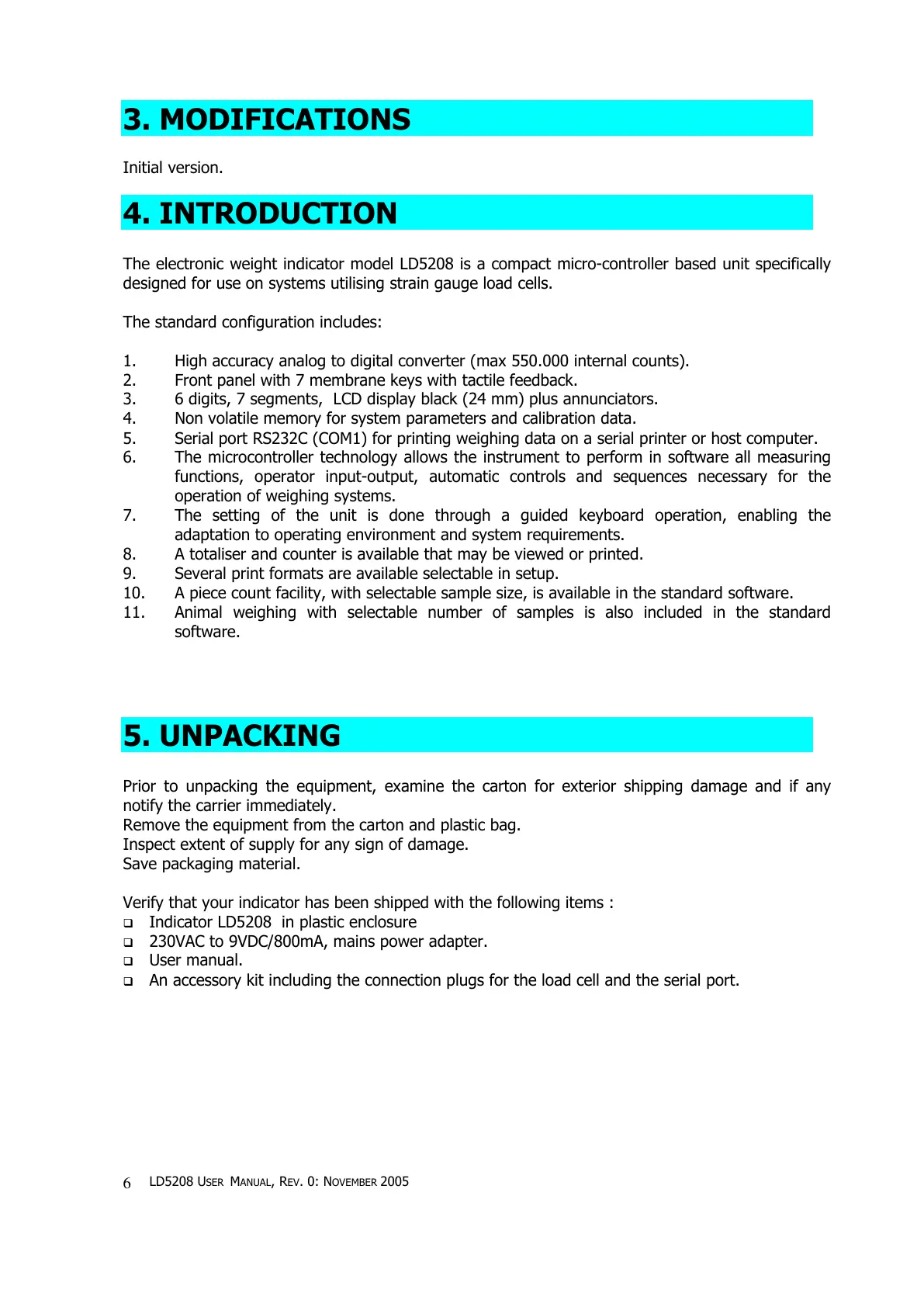

3. MODIFICATIONS
Initial version.
4. INTRODUCTION
The electronic weight indicator model LD5208 is a compact micro-controller based unit specifically
designed for use on systems utilising strain gauge load cells.
The standard configuration includes:
1. High accuracy analog to digital converter (max 550.000 internal counts).
2. Front panel with 7 membrane keys with tactile feedback.
3. 6 digits, 7 segments, LCD display black (24 mm) plus annunciators.
4. Non volatile memory for system parameters and calibration data.
5. Serial port RS232C (COM1) for printing weighing data on a serial printer or host computer.
6. The microcontroller technology allows the instrument to perform in software all measuring
functions, operator input-output, automatic controls and sequences necessary for the
operation of weighing systems.
7. The setting of the unit is done through a guided keyboard operation, enabling the
adaptation to operating environment and system requirements.
8. A totaliser and counter is available that may be viewed or printed.
9. Several print formats are available selectable in setup.
10. A piece count facility, with selectable sample size, is available in the standard software.
11. Animal weighing with selectable number of samples is also included in the standard
software.
5. UNPACKING
Prior to unpacking the equipment, examine the carton for exterior shipping damage and if any
notify the carrier immediately.
Remove the equipment from the carton and plastic bag.
Inspect extent of supply for any sign of damage.
Save packaging material.
Verify that your indicator has been shipped with the following items :
Indicator LD5208 in plastic enclosure
230VAC to 9VDC/800mA, mains power adapter.
User manual.
An accessory kit including the connection plugs for the load cell and the serial port.
