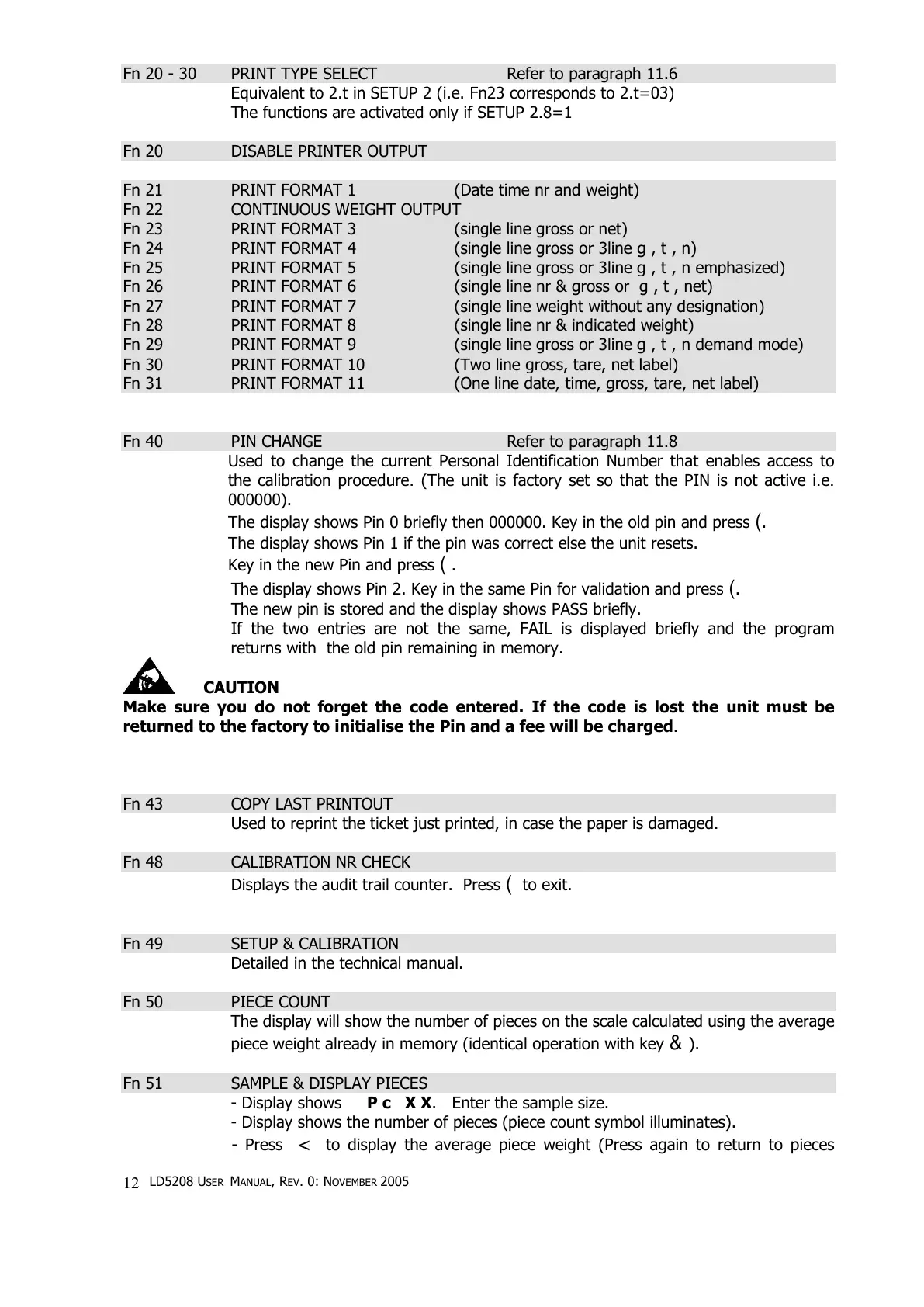

LD5208 USER MANUAL, REV. 0: NOVEMBER 2005

Fn 20 - 30 PRINT TYPE SELECT Refer to paragraph 11.6

Equivalent to 2.t in SETUP 2 (i.e. Fn23 corresponds to 2.t=03)

The functions are activated only if SETUP 2.8=1

Fn 20 DISABLE PRINTER OUTPUT

Fn 21 PRINT FORMAT 1 (Date time nr and weight)

Fn 22 CONTINUOUS WEIGHT OUTPUT

Fn 23 PRINT FORMAT 3 (single line gross or net)

Fn 24 PRINT FORMAT 4 (single line gross or 3line g , t , n)

Fn 25 PRINT FORMAT 5 (single line gross or 3line g , t , n emphasized)

Fn 26 PRINT FORMAT 6 (single line nr & gross or g , t , net)

Fn 27 PRINT FORMAT 7 (single line weight without any designation)

Fn 28 PRINT FORMAT 8 (single line nr & indicated weight)

Fn 29 PRINT FORMAT 9 (single line gross or 3line g , t , n demand mode)

Fn 30 PRINT FORMAT 10 (Two line gross, tare, net label)

Fn 31 PRINT FORMAT 11 (One line date, time, gross, tare, net label)

Fn 40 PIN CHANGE Refer to paragraph 11.8

Used to change the current Personal Identification Number that enables access to

the calibration procedure. (The unit is factory set so that the PIN is not active i.e.

000000).

The display shows Pin 0 briefly then 000000. Key in the old pin and press (.

The display shows Pin 1 if the pin was correct else the unit resets.

Key in the new Pin and press ( .

The display shows Pin 2. Key in the same Pin for validation and press (.

The new pin is stored and the display shows PASS briefly.

If the two entries are not the same, FAIL is displayed briefly and the program

returns with the old pin remaining in memory.

CAUTION

Make sure you do not forget the code entered. If the code is lost the unit must be

returned to the factory to initialise the Pin and a fee will be charged.

Fn 43 COPY LAST PRINTOUT

Used to reprint the ticket just printed, in case the paper is damaged.

Fn 48 CALIBRATION NR CHECK

Displays the audit trail counter. Press ( to exit.

Fn 49 SETUP & CALIBRATION

Detailed in the technical manual.

Fn 50 PIECE COUNT

The display will show the number of pieces on the scale calculated using the average

piece weight already in memory (identical operation with key & ).

Fn 51 SAMPLE & DISPLAY PIECES

- Display shows P c X X. Enter the sample size.

- Display shows the number of pieces (piece count symbol illuminates).

- Press < to display the average piece weight (Press again to return to pieces
