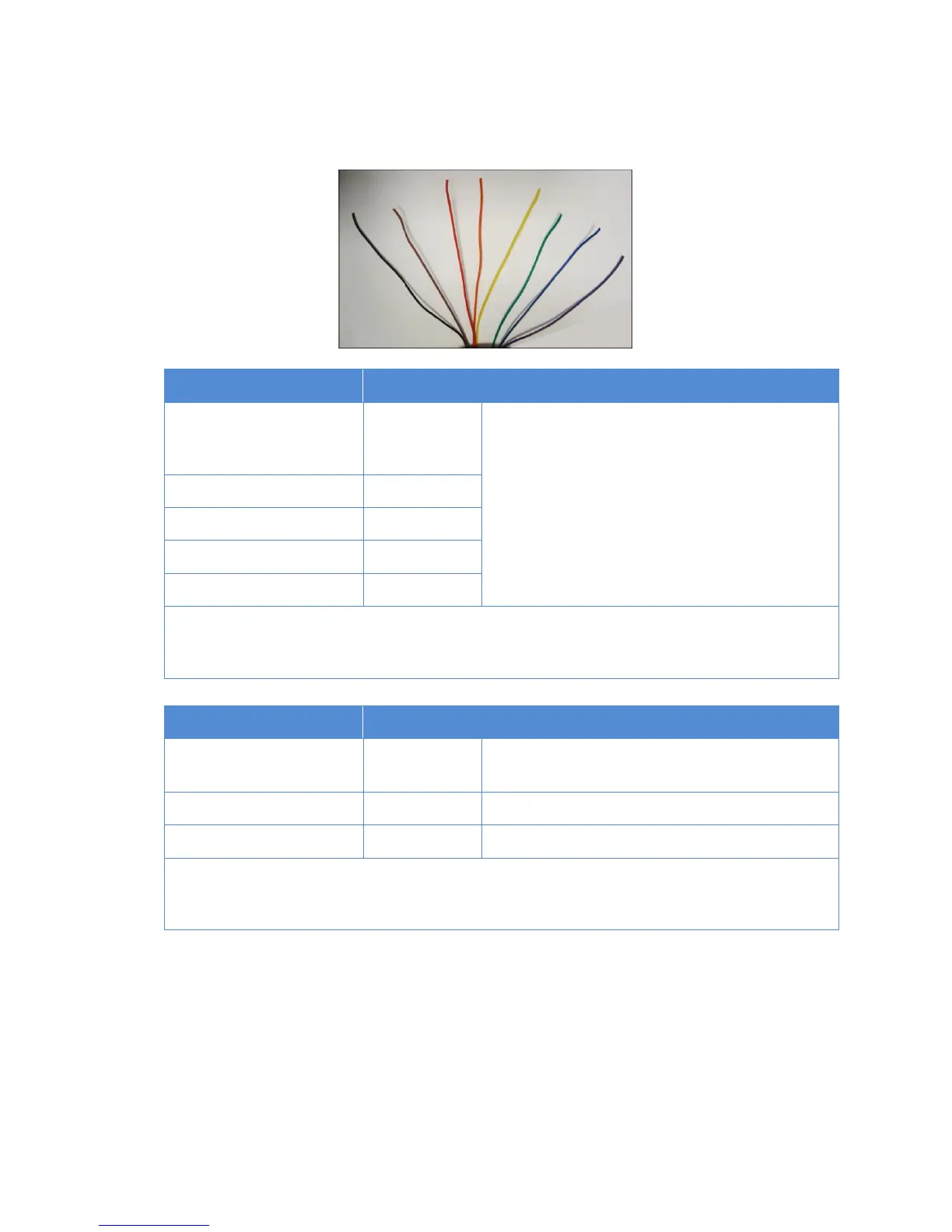

Understanding the DI/DO Cables
You can connect up to four (4) DI and two (2) DO devices to your camera.
Digital Input Cables
Cable Color
Wiring Connection
Ground Pin (GND)
Black
To connect digital input devices, map the DI
device wires to the following:
Digital Input 1 (DI1)
Orange
 DI1 and GND
Digital Input 2 (DI2)
Green
 DI2 and GND
Digital Input 3 (DI3)
Purple
 DI3 and GND
Digital Input 4 (DI4)
Brown
 DI4 and GND
NOTE: In case of connecting more than one DI device, the GND pin can be commonly
shared by all four (4) DI devices.
Digital Output Cables
Cable Color
Wiring Connection
12V (12V)
Red
To connect digital output devices, map the
DO device wires to the following:
Digital Output 1 (DO1)
Yellow
 DO1 and 12V
Digital Output 2 (DO2)
Blue
 DO2 and 12V
NOTE: In case of connecting two (2) DO devices, the 12V pin can be commonly
shared by the two (2) DO devices.
