LevelOne FCS-4042 - Page 33

Hardware Manual
33

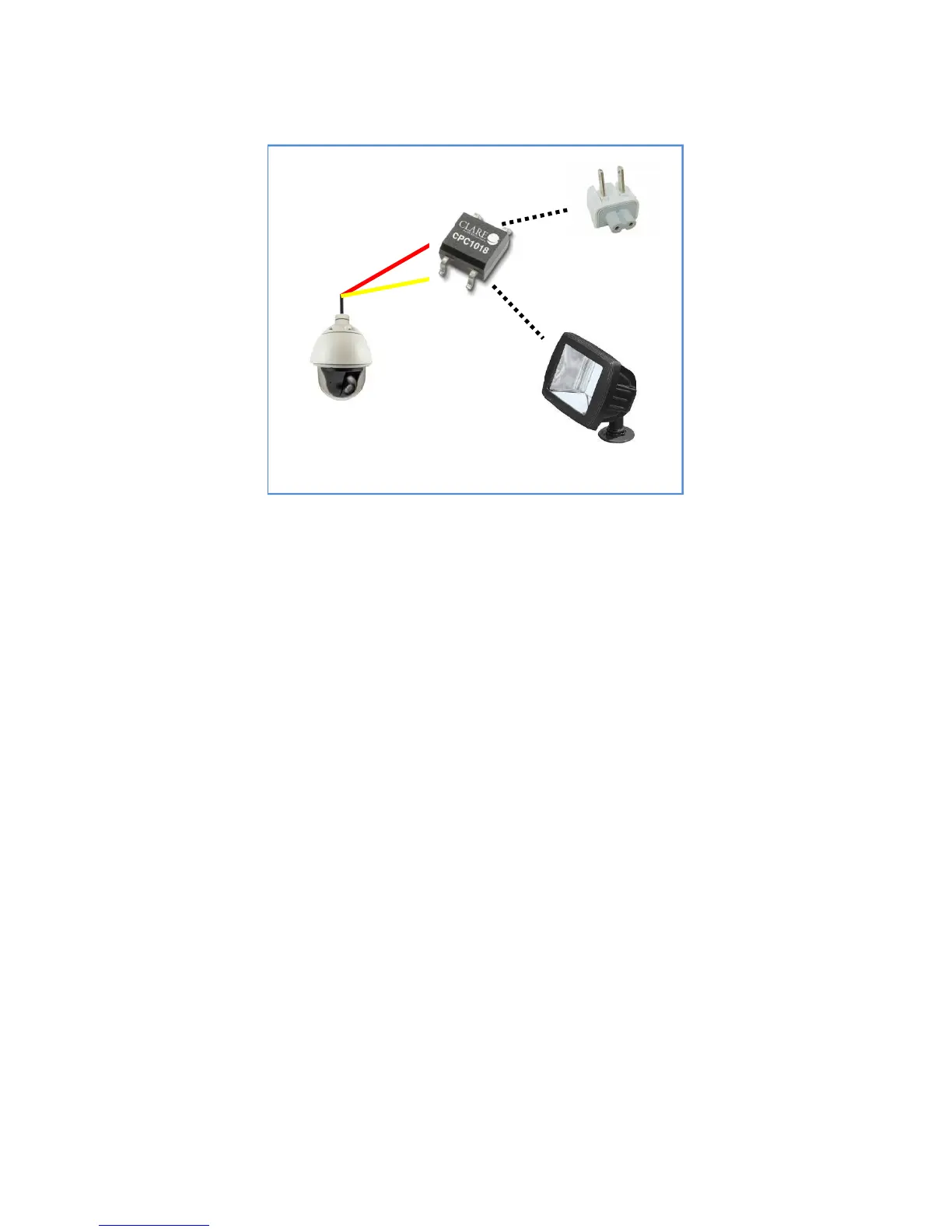

The illustration below is a graphic example of connecting a relay to a high voltage DO device.
Relay
(DO1 Device)
)
Outdoor PTZ
Illuminator
110V-220V AC
External Power
Source
Note: For more information on DI/DO connections, please refer to the Knowledge Base article on
our website.
