Series 2000 MMU Installation Manual

Leviton Manufacturing Co., Inc. 8 3.0 Installation Instructions

2.2 Input/Output Connections and User Display

The input and output terminals for Series 2000 meters are shown below in the Figure below.

For hookup diagrams and wiring information refer to section 3.

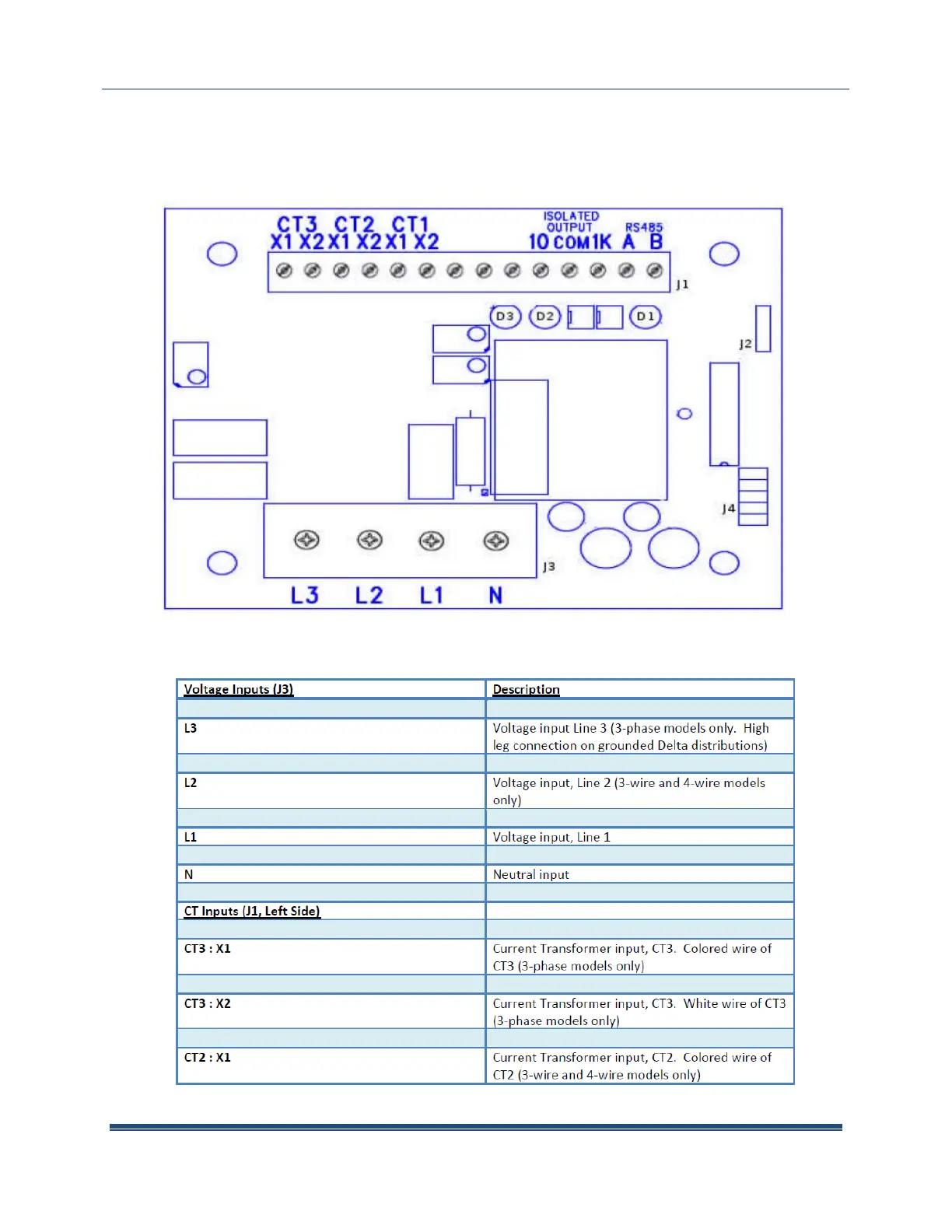

Figure 1: Series 2000 terminals
