2.4 Pressure-Flow Curves

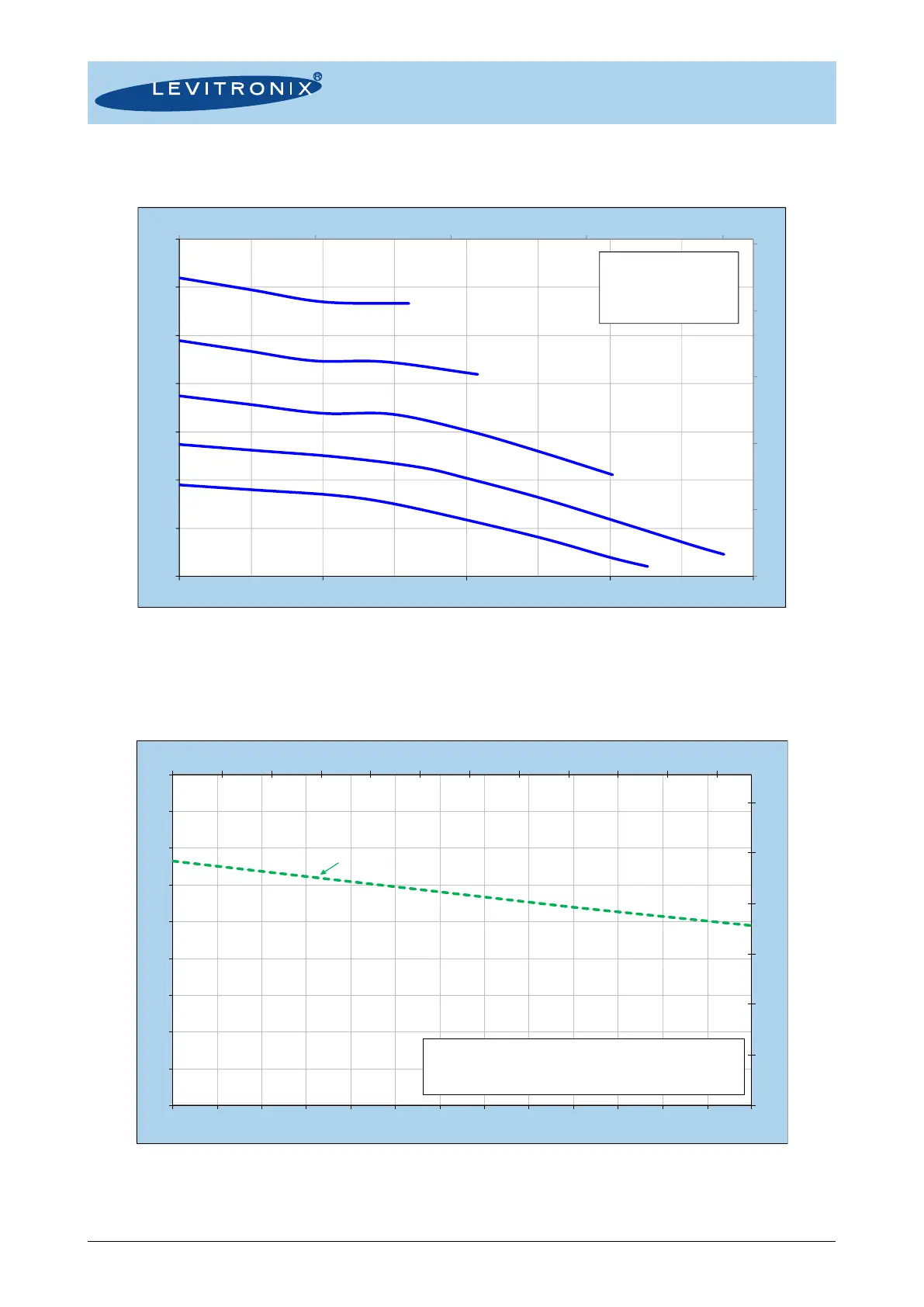

Figure 5: Pressure/flow rate curves
(Measured with pump head LPP-600.29)
2.5 Maximum Static Pressure for Pump Heads
Figure 6: Specification for maximum static pressure of pump head LPP-600.29
(Pressure limits only valid for pump head mounted on motor)
0
10
20
30
40
50
0.0 5.0 10.0 15.0 20.0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
0 20 40 60 80
[psi]
[gallons / min]
[bar]
[liters / min]
8000 rpm
9000 rpm
6000 rpm
7000 rpm
Specific gravity = 1 g/cm
3
Viscosity = 0.7 cP
Liquid Temp.: 40 °C
DC-Voltage = 48 V
DC
Pump Head: LPP-600.29
5000 rpm
0
20
40
60
80
100
120
77 87 97 107 117 127 137 147 157 167 177 187
0
1
2
3
4
5
6
7
8
9
25 30 35 40 45 50 55 60 65 70 75 80 85 90
[psi]
[°F]
[bar]
Liquid Temperature in [°C]
Pump Head LPP-600.29
Testing according to EN12162 including safety factors.
Limitation: Given by deformation. Burst pressure is significantly higher
Ambient Temp = 25 °C
Note: Pressure limit only valid for pump head mounted on motor

Levitronix BPS-i600 Specifications

General

Brand	Levitronix
Model	BPS-i600
Category	Water Pump
Language	English
