Levitronix PuraLev i30SU User Manual

User Manual for PuraLev
®
i30SU
www.levitronix.com
PL-4051-00, Rev03, DCO# 20-275
11

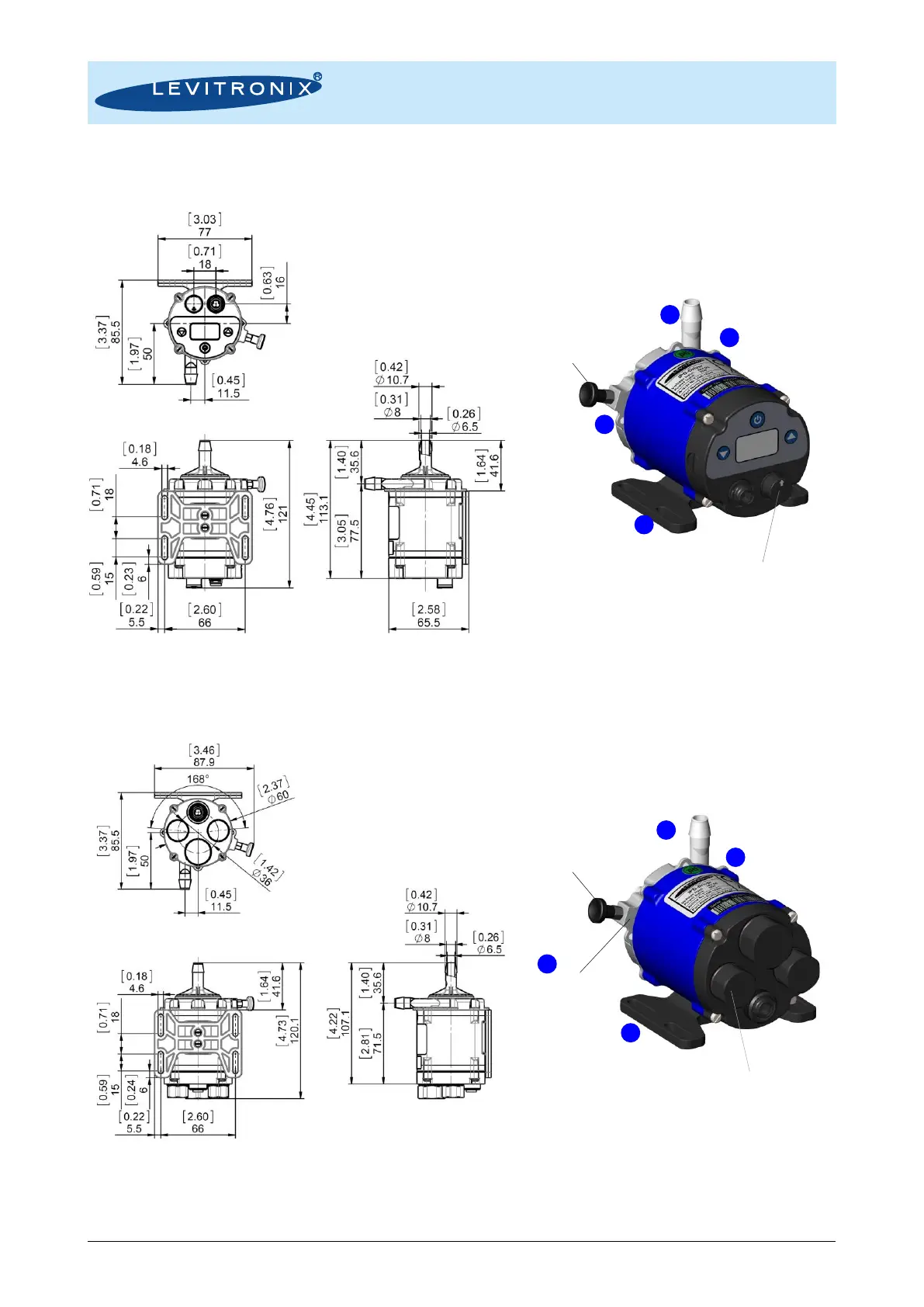

2.6 Basic Dimensions of Main Components
Figure 13: Basic dimensions (in [mm] and [inch]) of Stand-Alone model
Note 1: Drawings with DCP-30.1 (Triclamp) and DCP-30.2-SF1 (Sterile Fittings) are available on request.
Figure 14: Basic dimensions (in [mm] and [inch]) of EasyConnect model
Note 1: Drawings with DCP-30.1 (Triclamp) and DCP-30.2-SF1 (sterile fittings) are available on request.
2c
1
Single-Use
Pump Head
DCP-30.2
Driver IPD-30.5
Protective Cover for PLC
Connector
(Included in driver Package).
Mounting Base Plate MBP-i30.1
(Included in driver Package).
4
Pump Head Inlet and Outlet Fitting:

3
Pump Head Socket
PHS-i30.1
Locking Pin
Note: Pump Head Socket can be
mounted and rotated in steps of 45° to
change pump outlet orientation.
2b
1
Single-Use
Pump Head
DCP-30.2
Driver IPD-30.3
Protective Cover Nut for
PLC and Fieldbus Connectors
(Included in driver package).
Pump Head Inlet and Outlet Fitting:

3
Pump Head Socket
PHS-i30.1
Locking Pin
Note: Pump Head Socket can be
mounted and rotated in steps of 45° to
change pump outlet orientation.
Mounting Base Plate MBP-i30.1
(Included in driver Package).
4
