User Manual for PuraLev
®
i30SU
www.levitronix.com
PL-4051-00, Rev03, DCO# 20-275
12

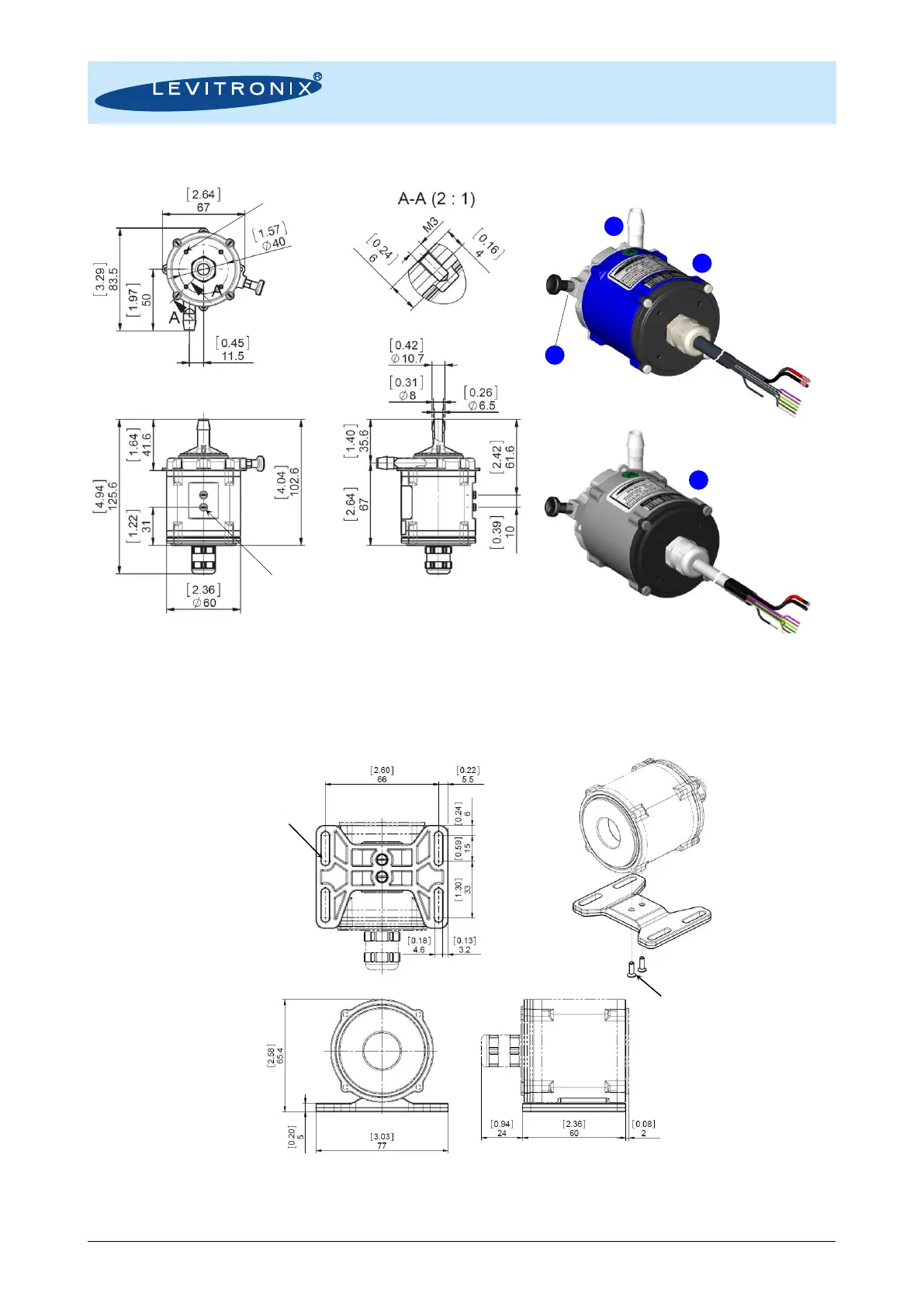

Figure 15: Basic dimensions (in [mm] and [inch]) of OEM model
Note 1: Drawings with DCP-30.1 (Triclamp) and DCP-30.2-SF1 (sterile fittings) are available on request
Figure 16: Basic dimensions (in [mm] and [inch]) of OEM driver of mounting base plate MBP-i30
2a
Slot for Driver Mounting
with M4 screws
Driver IPD-30.1
Mounting Base Plate
MBP-i30.1
Material: PP+GF30
Countersunk Head Screws
M3 x 10mm, FEP coated
1a
Pump Head
DCP-30.2
Driver IPD-30.1
(Epoxy Coating)
Driver Cable
(PVC with Open Wires)
Multi-purpose screw
holes 4 pcs M3 x 4 mm
Multi-purpose screw holes
2 pcs M3 x 4 mm screws with
FKM O-ring for protection
Pump head inlet and outlet fitting:

3
Pump Head Socket
PHS-i30.1
Note: Pump head socket can be mounted
and rotated in steps of 45° to change
pump outlet orientation.
2d
Driver IPD-30.11
ATEX/IECEx
(ETFE Coating)
Driver Cable
FEP with Open Wires)
