Levitronix PuraLev i30SU User Manual

User Manual for PuraLev
®
i30SU
www.levitronix.com
PL-4051-00, Rev03, DCO# 20-275
13
IPS Cable Power ICP-1.1 (for EasyConnect and Stand-Alone drivers)
IPS Cable Signal ICS-1.1 (for EasyConnect drivers)
IPS Cable Signal ICS-1.2 (for EasyConnect and Stand-Alone drivers)
IPS Cable Signal ICS-2.1 (for EasyConnect drivers)

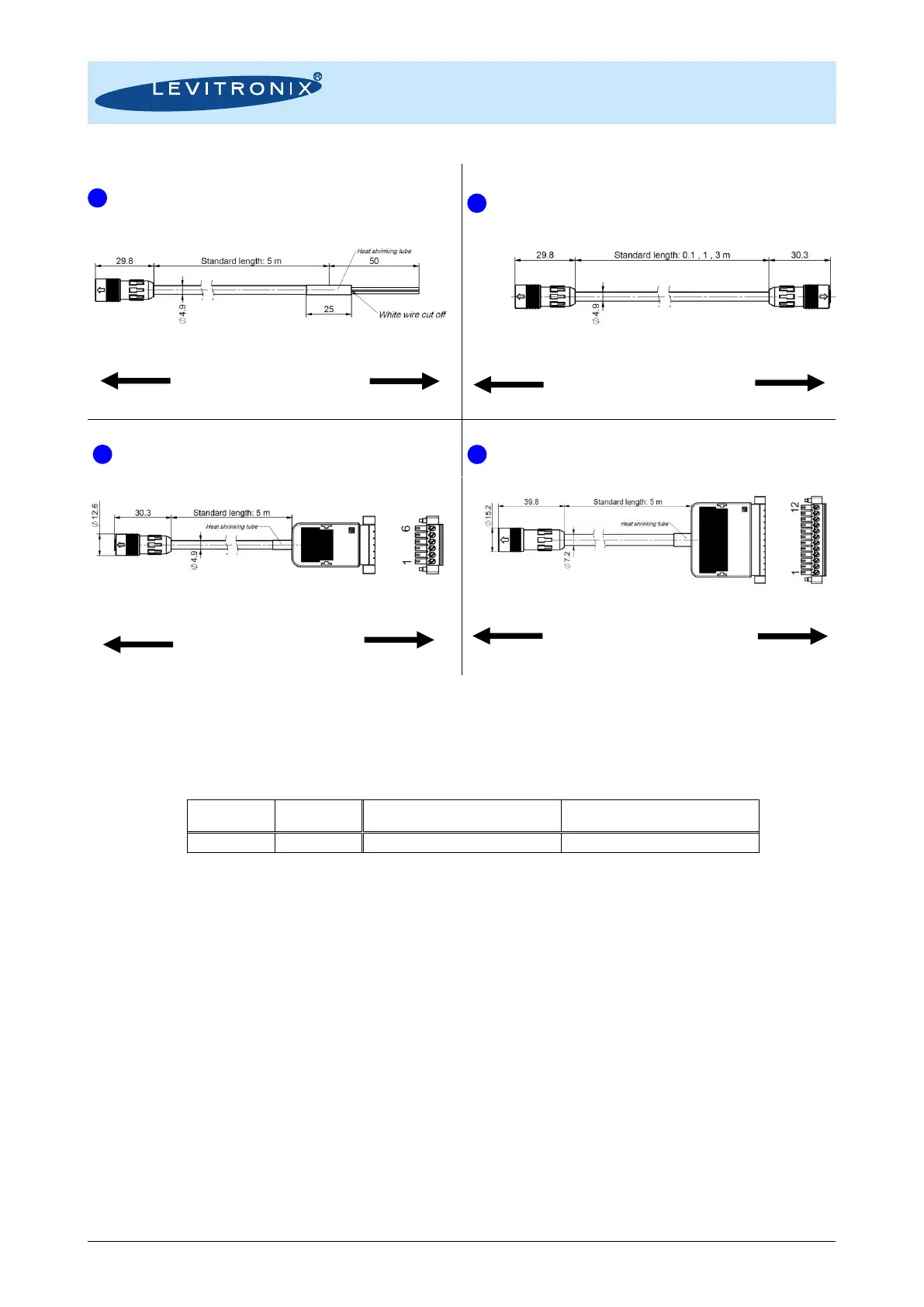

Figure 17: Basic dimensions and specifications of standard cables
Cable
Jacket
Cable
Diameter
Minimum Bending Radius
Permanent Installation
Minimum Bending Radius
Sometimes Moved
PVC
8.4 mm
7x Cable OD
15 x Cable OD
Table 5: Specifications for min. bending radius of cables
Note: If not mentioned explicitly all the cables are not suited for constant dynamic bending and movement!
to AC/DC Supply
to driver DC supply
7
to driver fieldbus IN
8a
to driver fieldbus OUT
8b
to external interface
EasyConnect driver: to field bus
Stand-Alone driver: to PLC
Screw type wire
connector
9
to external PLC
to driver PLC
Screw type wire
connector
Wire size: 0.5 mm
2
Wire size: 0.08 mm
2
Wire size: 0.08 mm
2
Wire size: 0.14 mm
2
