Lewmar V8 - 8.3 Model V10;12 dimensions

32
A
B
D
C
F
G
E
B
C
A
D
A
B
D
C
B
C
A
F
G
E
D

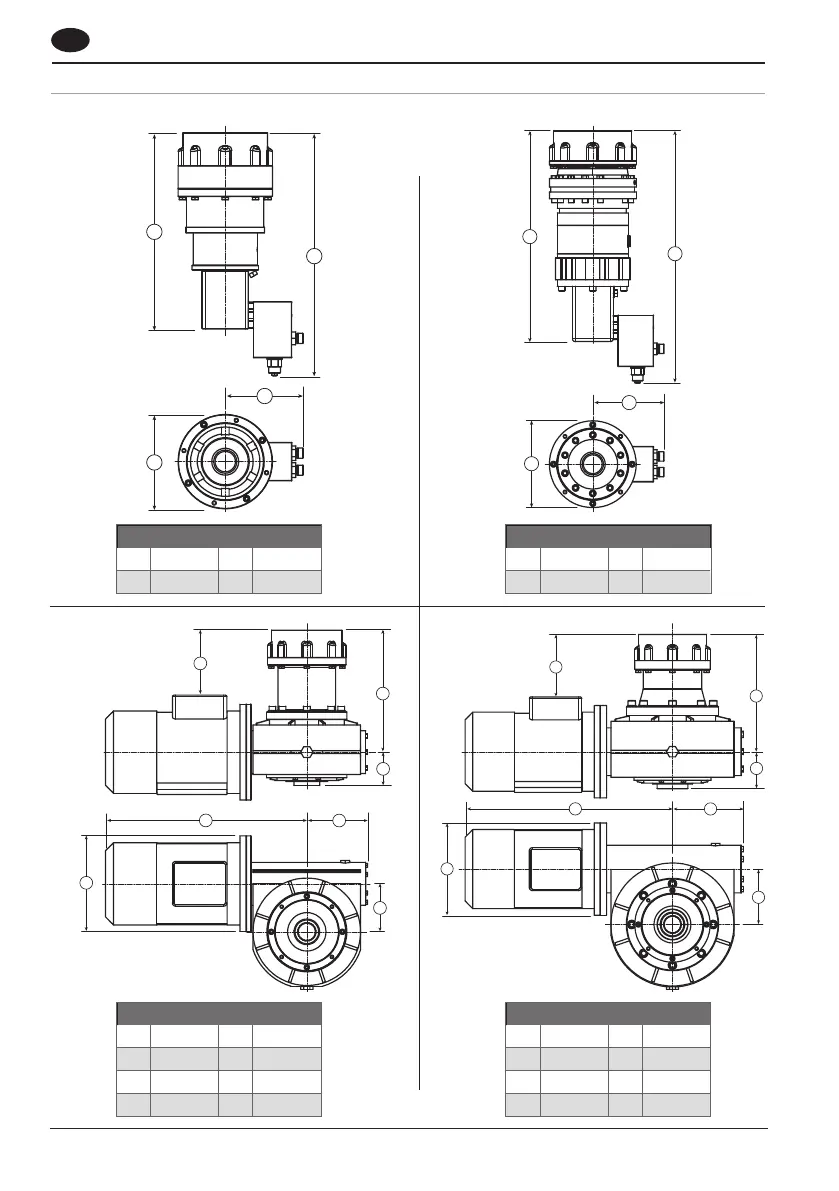

V10 HYDRAULIC
A 509 mm C Ø245 mm
B 631 mm D 202 mm
V10 5.5KW AC
A 203 mm E 190 mm
B 381 mm F Ø300 mm
C 105 mm G 150 mm
D 629 mm
V12 HYDRAULIC
A 595 mm C Ø245 mm
B 712 mm D 201 mm
V12 7.5KW AC
A 203 mm E 231 mm
B 381 mm F Ø300 mm
C 120 mm G 180 mm
D 674 mm
GB
8.3 Model V10/V12 dimensions
