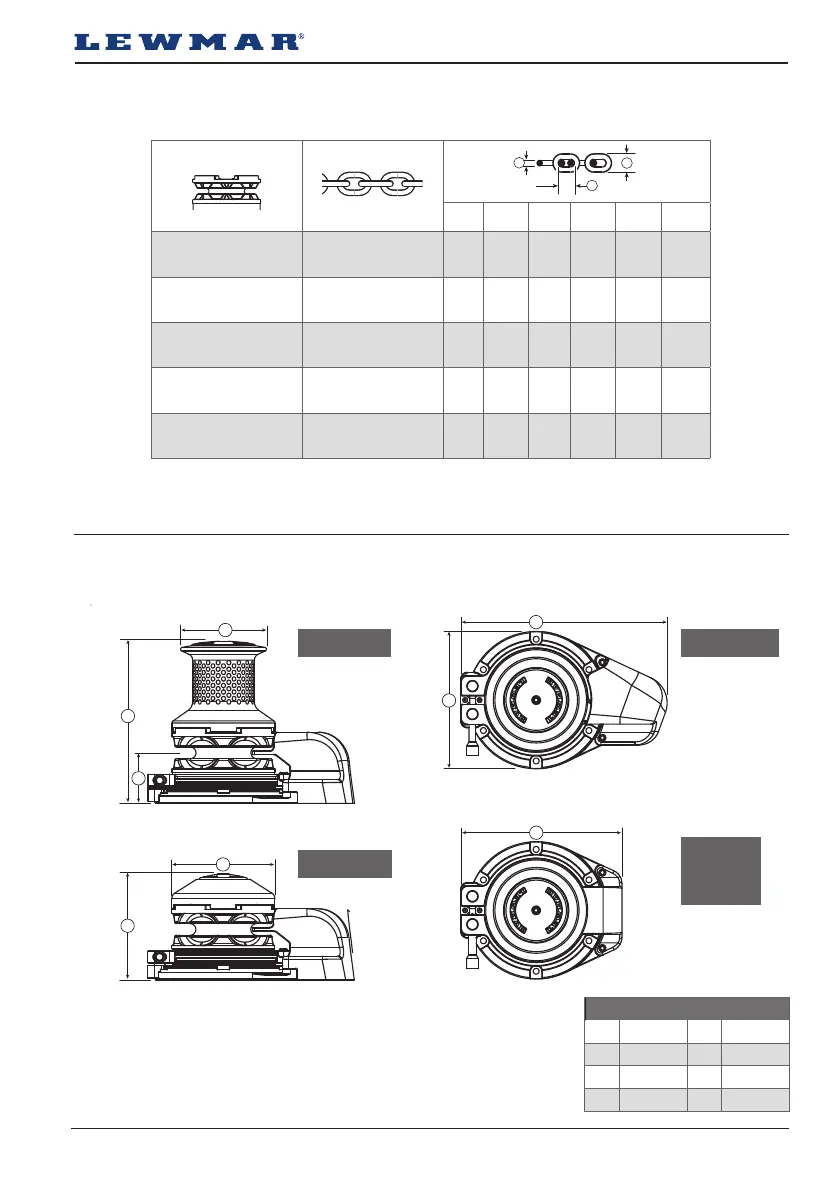

Lewmar V8 - V10-V12 DECK UNIT DIMENSIONS

Lewmar V8/V9/V10/V12 Vertical Windlass ref 66300094 Iss.6 | 33
V10V12 DECK UNIT DIMENSIONS
A 472 mm E Ø300 mm
B 147 mm F 400 mm
C Ø180 mm G 602 mm
D 310 mm H 470 mm
P
W
D
D
(mm)
D
(inch)
P
(mm)
P
(inch)
W
(mm)
W
(inch)
68000944
16mm Studlink Gypsy Kit
16mm Studlink 16 0.630 64 2.520 57.6 2.268
68000946
17.5mm Studlink Gypsy Kit
17.5mm Studlink 17.5 0.689 70 2.756 63 2.480
68000943
19mm Studlink Gypsy Kit
19mm Studlink 19 0.748 76 2.992 68.4 2.693
68000932
20.5mm Studlink Gypsy Kit
20.5mm Studlink 20.5 0.807 82 3.228 73.8 2.906
66000702
22mm Studlink Gypsy Kit
22mm Studlink
V12 Remote Hawse Only
22 0.866 88 3.465 79.2 3.118
B
C
A
F
E
D
H
G
GD Version L/H Version
Remote
Hawse
Version
GO Version
