Lex System 2I392CW - LCD Panel Power Select Jumper (JVL1); COM Port RI;Power Select Jumpers (JVC1;JVC2)

24

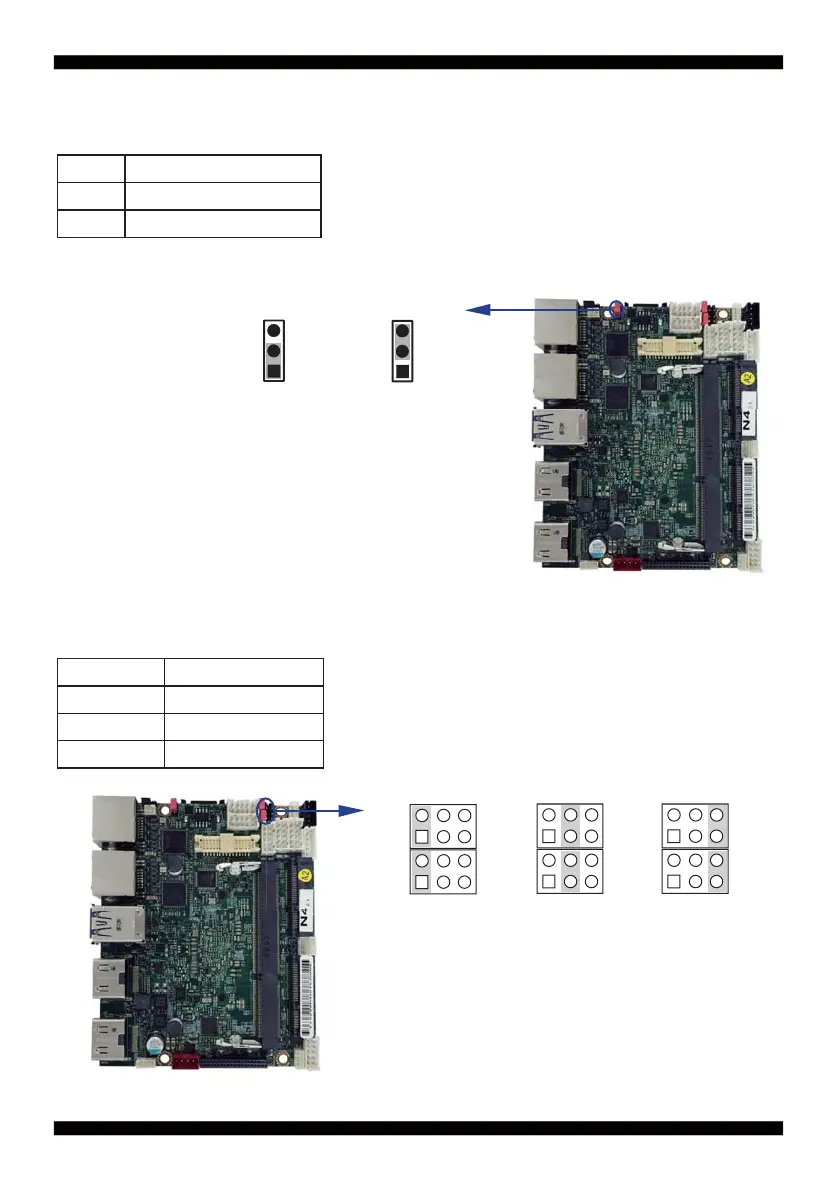

2-10 JVL1: LCD panel power select
Note: Attention! Check Panel Power in spec
JVL1 DESCRIPTION
1-2 +5V
*2-3 +3.3V
2-11 JVC1/JVC2: COM1/2 RI & power select
JVC1/JVC2 DESCRIPTION
*1-2 RI
3-4 +5V
5-6 +12V
JVL1
1
2
3
+5V
*+3.3V
1
2
3
*RI Signal
+5V
+12V
462
JVC2
JVC1
135
462
135
462
135
