Lex System 2I392CW - I²C Bus Interface; DC Power Input

49
CO1: I
2
C-Bus wafer connector (1x4pin 1.25mm)

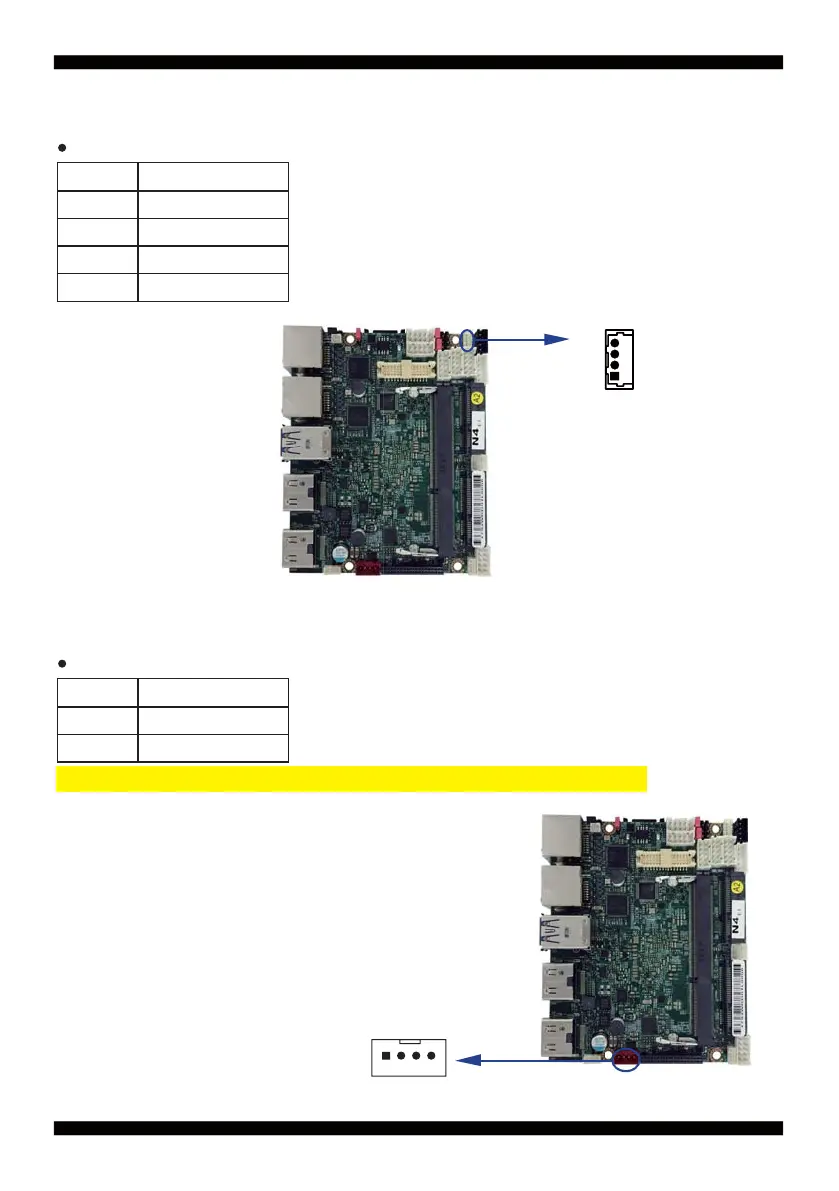

3-8 I
2
C Bus Interface
PIN NO. Description
1 +3.3V
2 GND
3I
2
C Clock
4I
2
C DATA
CO1
pin1
3-9 DC Power Input
CPI1: DC-in wafer connector (Red) (1x4pin 2.0mm)
PIN NO. Description
2,3 DC-IN(12V)
1,4 GND
Note: 1. Very important check DC-in Voltage type for 12V or 9~36V model spec
CPI1
pin1
