48

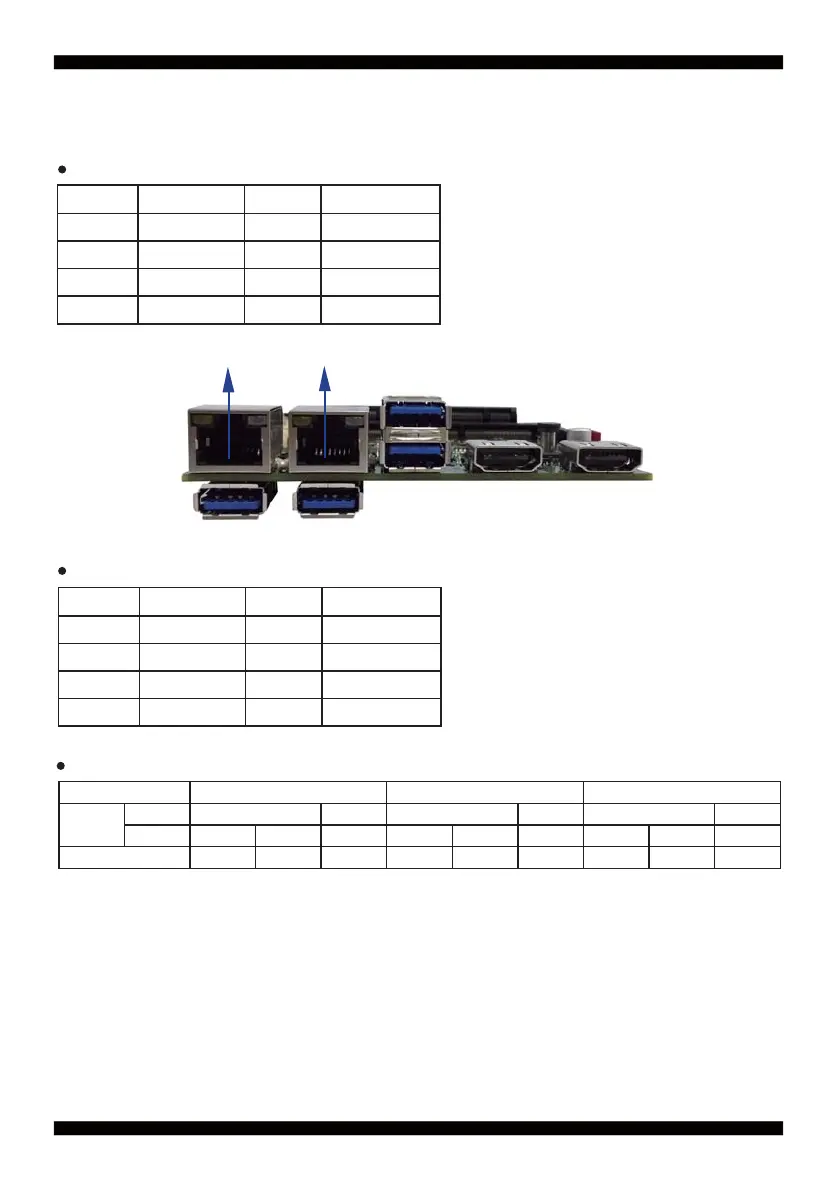

3-7 LAN Interface
CL1/CL2: RJ45 LAN port Giga / 100Mb (RJ45 Jack)
CL11/CL21: LAN port Giga / 100Mb wafer connector (2x4pin 2.0mm) (Option)
PIN NO. Description PIN NO. Description
1 TR0+/TX+ 2 TR2-/NC
3 TR0-/TX- 4 TR1-/RX-
5 TR1+/RX+ 6 TR3+/NC
7 TR2+/NC 8 TR3-/NC
CL1/LANCL2/LAN
PIN NO. Description PIN NO. Description
1 TR0+/TX+ 2 TR0+/TX+
3 TR2+/NC 4 TR1+/RX+
5 TR1+/RX+ 6 TR2-/NC
7 TR3-/NC 8 TR3+/NC
SPEED 10 Mbps 100 Mbps 1000 Mbps
Indicate
Side Back Front Back Front Back Front
LED Link ACT ACT Link ACT ACT Link ACT ACT
LAN Light Orange Orange Green Orange Orange Red Orange Orange
RJ45 LAN Connector--- LED defi ne Giga / 100 / 10MB Connector
