Lexington Forge CONCORDE C28DV - Page 16

16 45D0028
45D0028 17




HO
T






Horizontal (H) +
Vertical (V) Horizontal (H) Horizontal (H1)
5' minimum 4' maximum 8' maximum
6' minimum 6' maximum 12' maximum
7' minimum 8' minimum 20' maximum
20' maximum 8' maximum 20' maximum

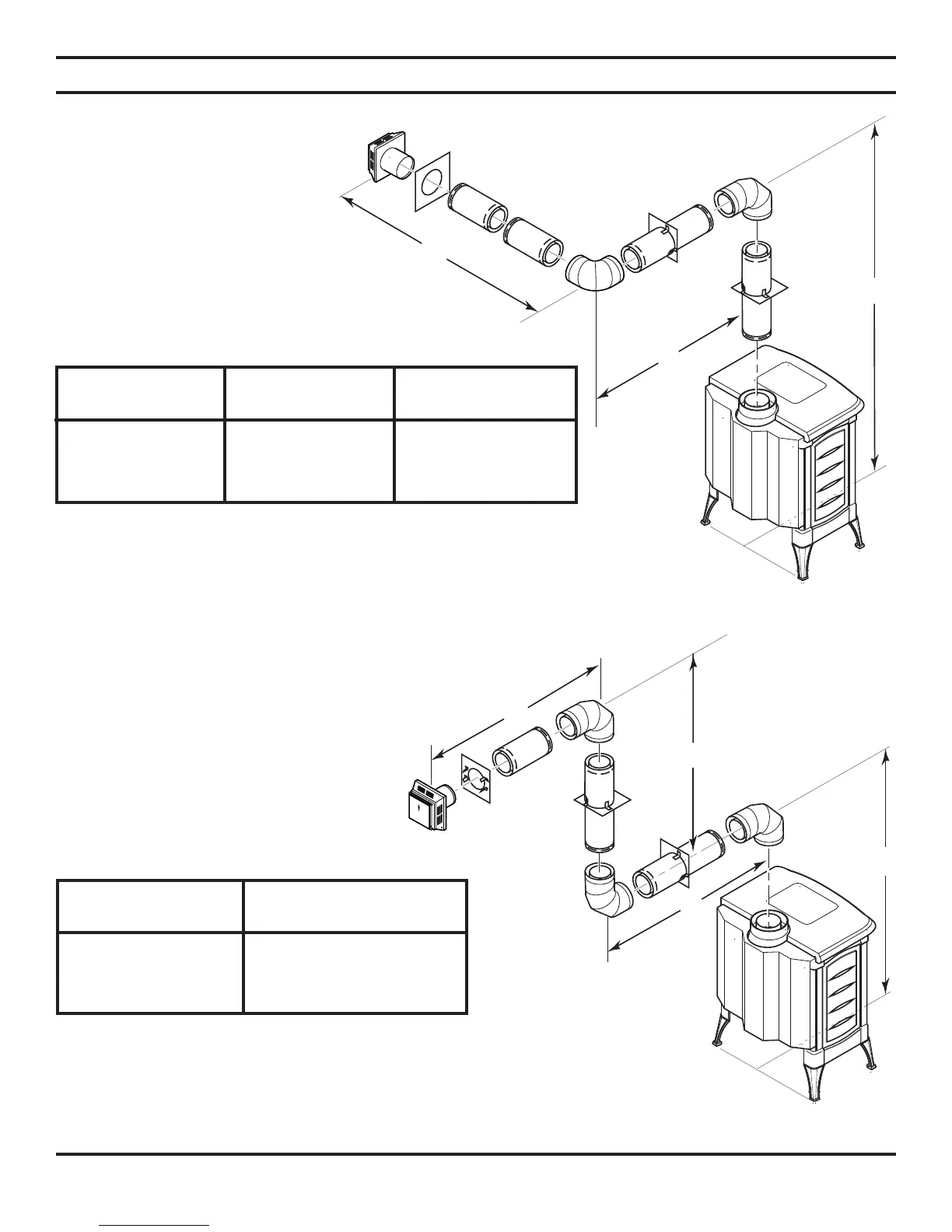

VENT INSTALLATION
VENTING WITH TWO 90° ELBOWS
Figure 16 - Horizontal Termination
Configuration for Rigid Venting Using
Two 90° Elbows
Horizontal (H) +
Vertical (V) + (V1) Horizontal (H1)
5' minimum 4' maximum
6' minimum 6' maximum
8' minimum 10' maximum
20' maximum 12' maximum
VENTING WITH THREE 90° ELBOWS
Figure 17 - Horizontal Termination Configuration
for Rigid Venting Using Three 90° Elbows with
Termination at 90° with Stove
NOTE: Add
1
/4" rise per 12"
horizontal length of pipe.
NOTE: Add
1
/4" rise per 12" horizontal
length of pipe.
Table 2 - Venting with Two 90° Elbows
Table 3 - Venting with Three 90° Elbows
