28 58D6056
PIL
OT
OFF
REMOTE C
ONT
RO
L
PIL
OT
OFF
REMOT
E CONT
RO
L
Rear
Log
Left
Base
Log (#2)
Right
Base
Log (#3)
Pins
Pins
LOG PLACEMENT AND ROCK WOOL PLACEMENT
1. Carefully remove logs from wrapping.
2. Open front door of firebox.
3. Place rear log (#1) on rear log pin.
4. Place left base log (#2) on the two pins against left side of firebox.
5. Place right base log (#3) on the two pins against right
side of firebox.
INSTALLING LOGS AND ROCK WOOL
(EMBER MATERIAL) IN FIREBOX
Break up rock wool (ember material) into dime-sized pieces. Fluff
up rock wool. Place rock wool evenly across burner surface. Do not
block any areas around the perimeter of the burner, as these are the
areas that supply the needed air for secondary combustion. Do not
place rock wool under logs. See Figure 36.
NOTE: Do not exceed one (1) layer of rock wool overage.
Place a small amount of rock wool on the rear side of
the burner only between tabs. The tabs are designed to
indicate the area where rock wool location. Do not place
rock wool outside the tabs in the back.

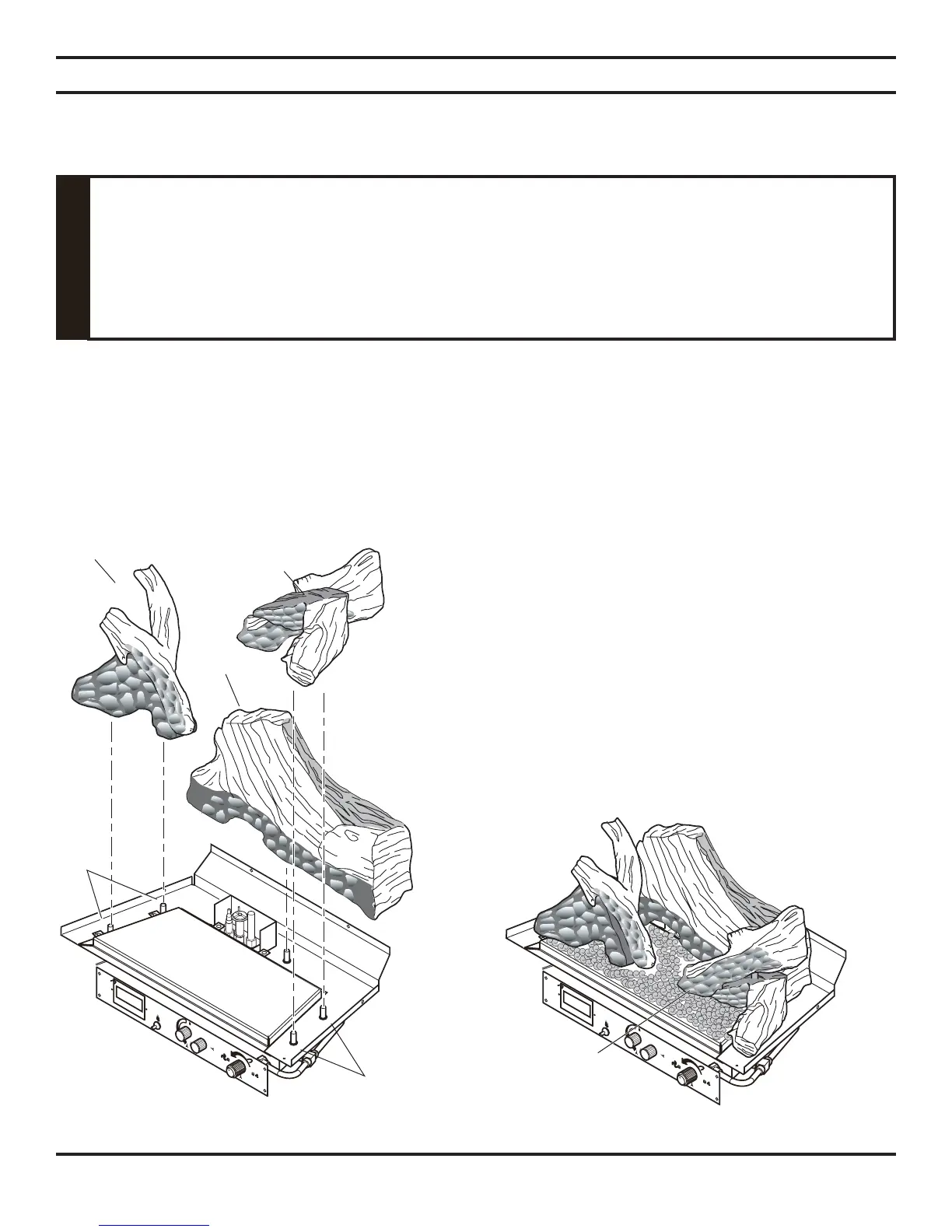

Figure 35 - Installing Logs on Base (CSDV20)
Before you begin — This unit is supplied with ceramic fiber logs. Do not handle these logs with your bare hands. Always
wear gloves to prevent skin irritation from ceramic fibers. After handling the logs, wash your hands gently with soap
and water to remove any traces of fibers.
The positioning of the logs is critical to the safe and clean operation of this heater. Sooting and
other problems may result if the logs are not properly and fi rmly positioned in the appliance.
Never add additional logs or embellishments such as pine cones or vermiculite to the heater.
Only use the logs supplied with the unit.
Failure to position the parts in accordance with diagrams below or to use only parts specifi cally
approved for this heater may result in property damage or personal injury.
WARNING
Figure 36 - Installing Rock Wool (CSDV20)
Rock
Wool
INSTALLING CSDV20 LOGS IN FIREBOX (See Figure 35)
