58D6056 9
D
Minimum
to Either
Side Wall
E
Minimum
A
G
G
D
Minimum
to Either
Side Wall
F Minimum
F
Minimum
36"
in Front
C
B
Mantel Clearance from
Top of Unit
Side, Measured from Top
Rear
Measured
from Back
Corner
Measured
From Top
Corners
Product
Min. Ceiling
from Floor
Max.
Protrusion Min. Height Right Left
ABCDEFG
DV20 72" 12" 22" 4" 4" 1" ½"
DV30 72" 12" 34" 4" 4" 1" ½"
DV40 72" 12" 34" 4" 4" 1" ½"
The dimensions shown in Figures 4 and 5 are minimum clearances to maintain in
installing this heater. Left and right clearances are determined when facing the front
of the heater.
Follow these instructions carefully to ensure safe installation. Failure to follow
in struc tions exactly can create a fi re hazard.
The appliance cannot be installed on a carpet, tile or other combustible material other
than wood fl ooring. If installed on carpet or vinyl fl ooring, the appliance shall be installed
on a metal, wood or noncombustible material panel ex tend ing full width and depth of
the appliance.
WARNING
CLEARANCES
CLEARANCES TO COMBUSTIBLES
Side
Wall
Mantel

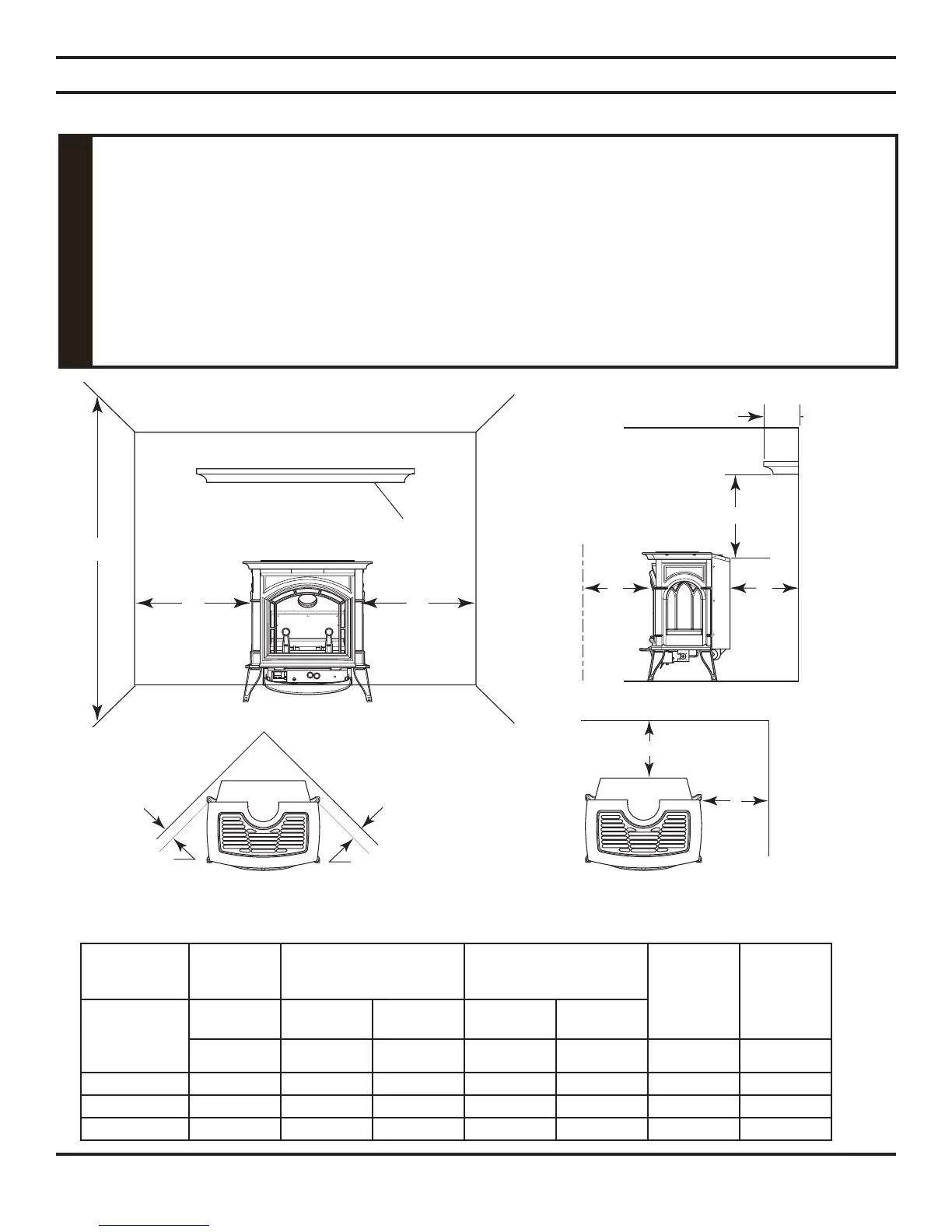

Figure 4 - Minimum Clearance to Walls and Ceiling
Front View
Corner Installation
Wall Installation
Side View
Ceiling
Ceiling
Floor
Side
Wall
Floor
