58D6056 29
PIL
OT
OFF
REMOTE C
ONTROL
PIL
OT
OFF
REMOTE C
ONTRO
L

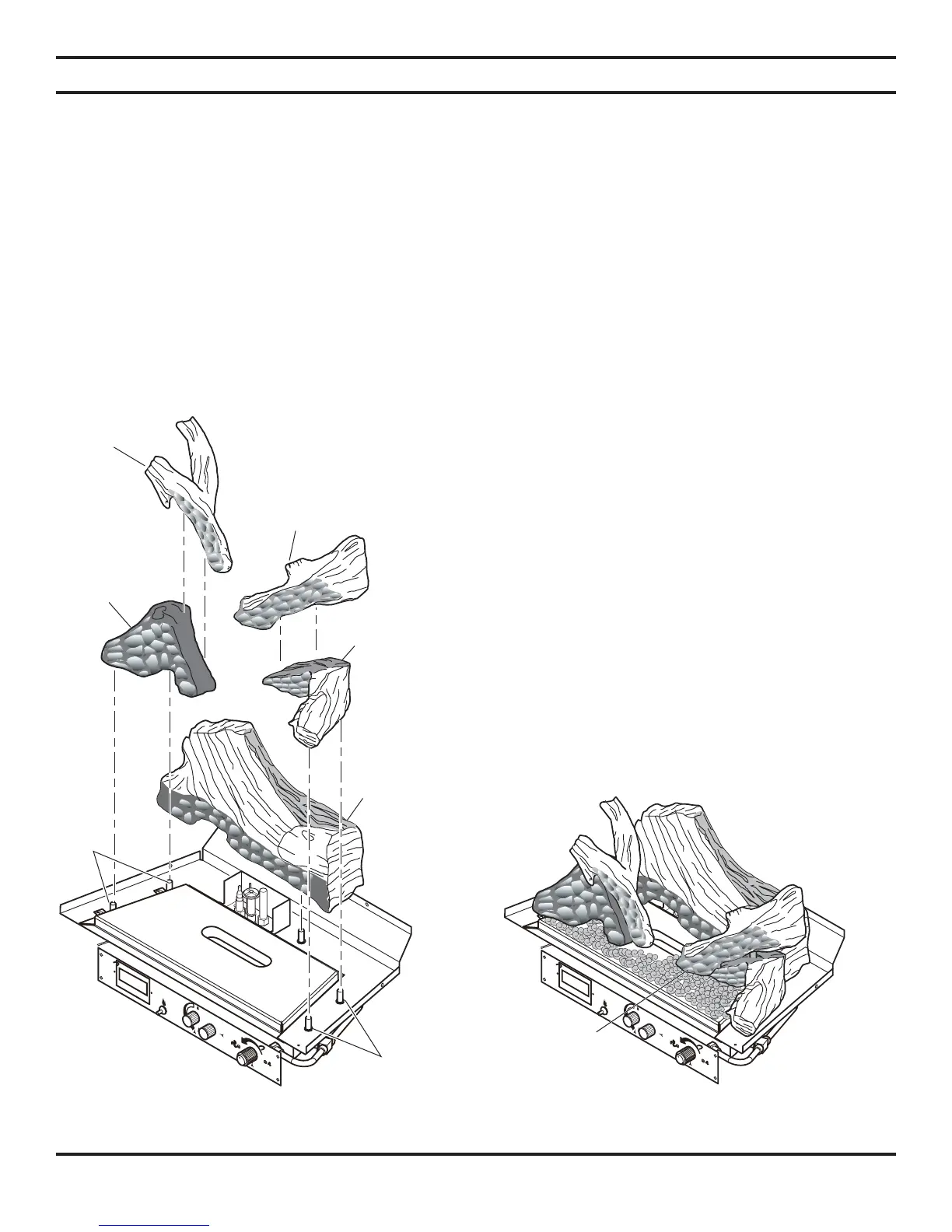

Figure 37 - Installing Logs on Base (CSDV30)
Rear
Log (#1)
Left
Base
Log (#2)
Right
Base Log
(#3)
Top Left
Log (#4)
Top Right
Log (#5)
Pins
Pins
Figure 38 - Installing Rock Wool (CSDV30)
Rock
Wool
1. Carefully remove logs from wrapping.
2. Open front door of firebox.
3. Place rear log (#1) on rear log pin.
4. Place left base log (#2) on the two pins against left side of firebox.
5. Place right base log (#3) on the two pins against right side of firebox.
6. Place top left log (#4) on left base log. Line up the notch in the bottom of the top log with the locator pins on the bottom
log.
7. Place top right log (#5) on right base log. Line up the notch in the bottom of the top log with the locator pins on the
bottom log.
INSTALLING LOGS AND ROCK WOOL
(EMBER MATERIAL) IN FIREBOX
Break up rock wool (ember material) into dime-sized pieces. Fluff
up rock wool. Place rock wool evenly across the front of the burner
surface. Do not block any areas around the perimeter of the burner,
as these are the areas that supply the needed air for secondary com-
bustion. Do not cover the screen on the rear half of the burner as
this area allows for air to enter under the front logs. Do not place
rock wool under logs. See Figure 38.
NOTE: Do not exceed one (1) layer of rock wool
overage. Do not place rock wool on rear of burner.
INSTALLING CSDV30 LOGS IN FIREBOX (See Figure 37)
LOG PLACEMENT AND ROCK WOOL PLACEMENT
