Lexington Forge CSDV30DNV - Lighting the Main Burner and Shutting Down

58D6056 33
T
PILOT
O
F
F
P
I
L
O
T
O
N
Figure 45 - Off Position
O
F
F
P
I
L
O
T
O
N
PILOT
PILOT
O
F
F
P
I
L
O
T
O
N
OFF
ON

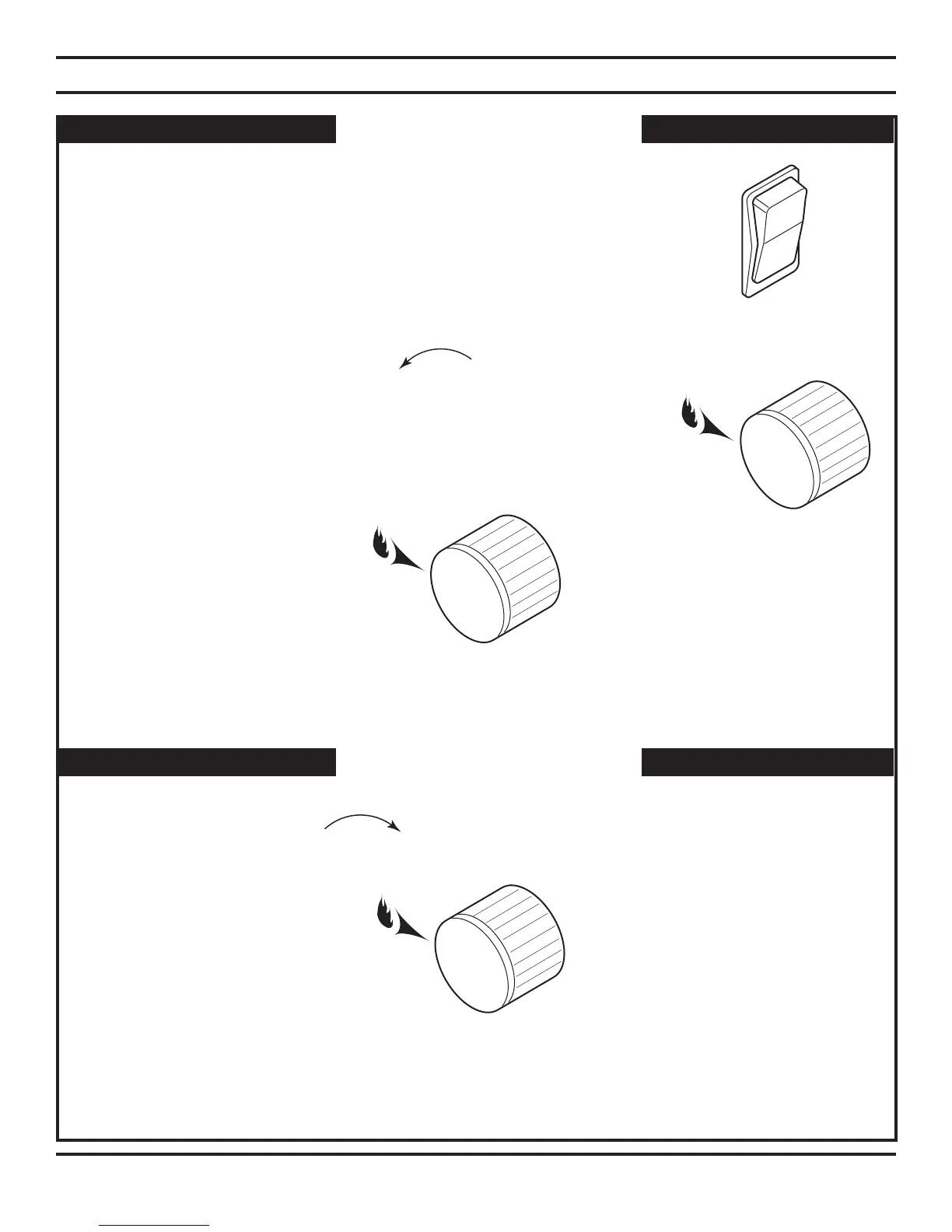

OPERATING INSTRUCTIONS
LIGHTING BURNER
MAIN BURNER SWITCH
The “ON/OFF” switch for the main burner can be found on the back right side
of the stove. This switch allows you to turn on and to turn off the main burner
without using the gas valve knob. Make sure the button is in the “ON” position
to light the main burner. See Figure 42.
LIGHTING THE BURNER
Depress and turn the knob counterclockwise to the “ON” position. See
Figure 43. It will take less than four (4) seconds for the burner to ignite.
PILOT POSITION
Depress and turn knob to pilot position to keep burner off while maintaining the
pilot light. See Figure 44.
Depress and turn knob clockwise
to “OFF” position. See Figure 45.
TO TURN OFF GAS
Figure 43 - On Position
Figure 42 - Burner Switch
Figure 44 - Pilot Position
