GLASS REPLACEMENT
1. Put on gloves.
2. Remove door from stove. See Page 11.
3. Remove glass from stove by releasing two clamps on bottom of
stove. Lift glass frame up and off the unit. See Figure 51.
4. Carefully remove broken glass.
5. Wrap new glass pane with tadpole gasket. Make sure you have
1
/4" overlap on each side.
6. Place new glass in frame.
7. Slide glass frame back down onto stove and fasten two clamps.
See Figure 52.
NOTE: Use only original Lexington Forge
replacement parts.
Always use gloves when handling
broken glass.
CAUTION
Make sure the glass panel edges
do not touch any metal parts during
thermal expansion.
WARNING

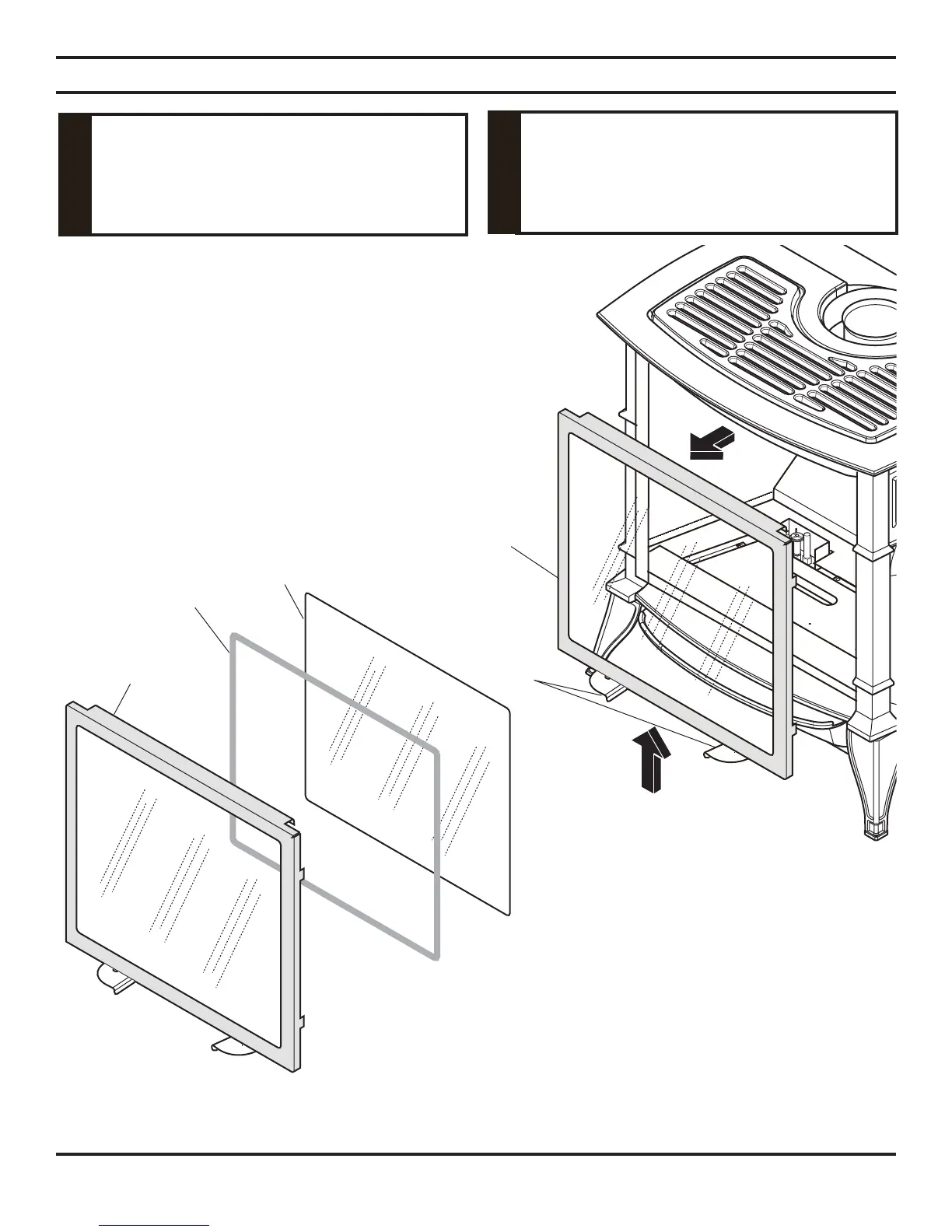

Figure 51 - Removing Glass Frame
Figure 52 - Replacing Glass
Glass
Frame
Glass
Frame
Gasket
Glass
Clamps
