8 58D6056
ON
OF
F

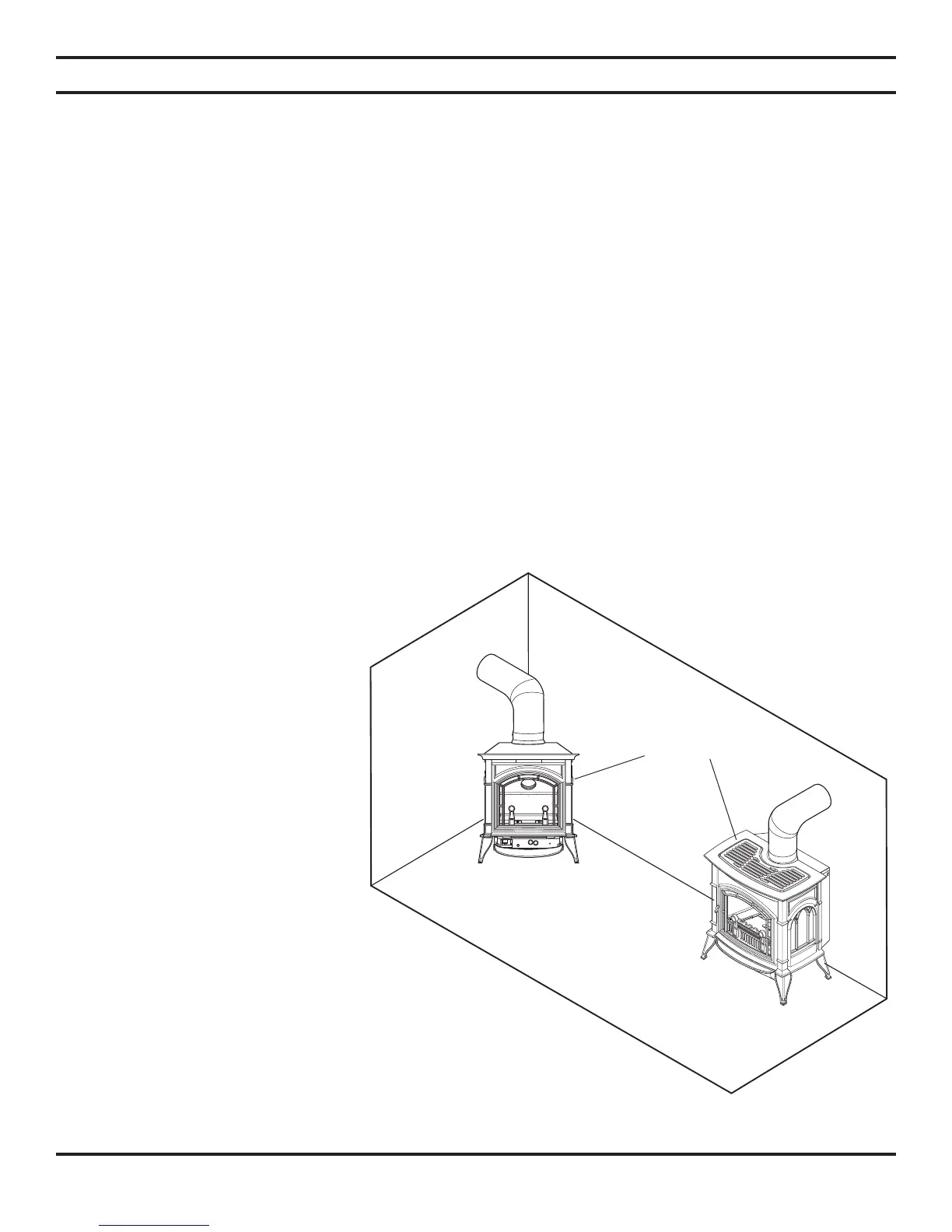

Figure 3 - Example of Typical Installations
(see “Clearances,” page 9)
Cast Iron Stove
PRE-INSTALLATION INFORMATION
STOVE LOCATION
Plan for the installation of your stove. This includes determining where the unit is to be installed, the vent configuration to
be used, framing and finishing details, and whether any optional accessories (i.e. blower, wall switch, or remote control)
are desired. Consult your local building code agency to ensure compliance with local codes, including permits and inspec-
tions.
The following factors should be taken into consideration:
• This stove should have sufficient access for its safe operation and maintenance.
• Locate a position where the flue system of the stove can be properly installed without damaging the integrity of the
building. e.g. cutting wall or ceiling joist (example: load-bearing framing members).
• When the appliance is installed directly on carpeting, tile or other combustible material other than wood flooring, you
must set appliance on a metal or wood panel extending the full width and depth of the appliance.
• Check stove and flue system clearance requirements.
• Locate the stove where it can be accessed by a gas supply line.
• Locate the stove in a large and open room that is centrally located in the house. This will optimize heat circulation
and comfort.
• The flow of combustion and ventilation air must not be obstructed.
• Minimum clearances to combustibles, side-wall, ceiling, woodwork, and windows must be maintained. See Figure 4,
page 9.
• This stove may be installed along a wall, across a corner, or use an exterior chase. See Figure 3 for suggested locations.
• Location should be out of high traf-
fic areas and away from furniture and
draperies due to heat from appliance.
• Never obstruct the front opening of the
stove.
• Do not install in the vicinity where
gasoline or other flammable liquids may
be stored.
• Vent pipe routing. See Venting section
found in this manual for allowable vent-
ing configurations.
• These units can be installed in a bed-
room. See National Fuel Gas Code
ANSI Z233.1/NFPA 54 (current edi-
tion), the Uniform Mechanical Code
(current edition), and Local Building
Codes for specific installation require-
ments.
NOTE: If this unit is installed in
a mobile home it must be bolted
securely to the fl oor with leg bolts.
NOTE: Stoves work without any
electrical supply.
