Lexmark C4150 - Sensor (Duplex) Removal

Sensor (duplex) removal
1 Remove the front cover. See “Front cover removal” on page 265.
2 Remove the duplex inner guide. See “Duplex inner guide removal” on page 291.
3 Remove the pivot shaft. See “Pivot shaft removal” on page 291.

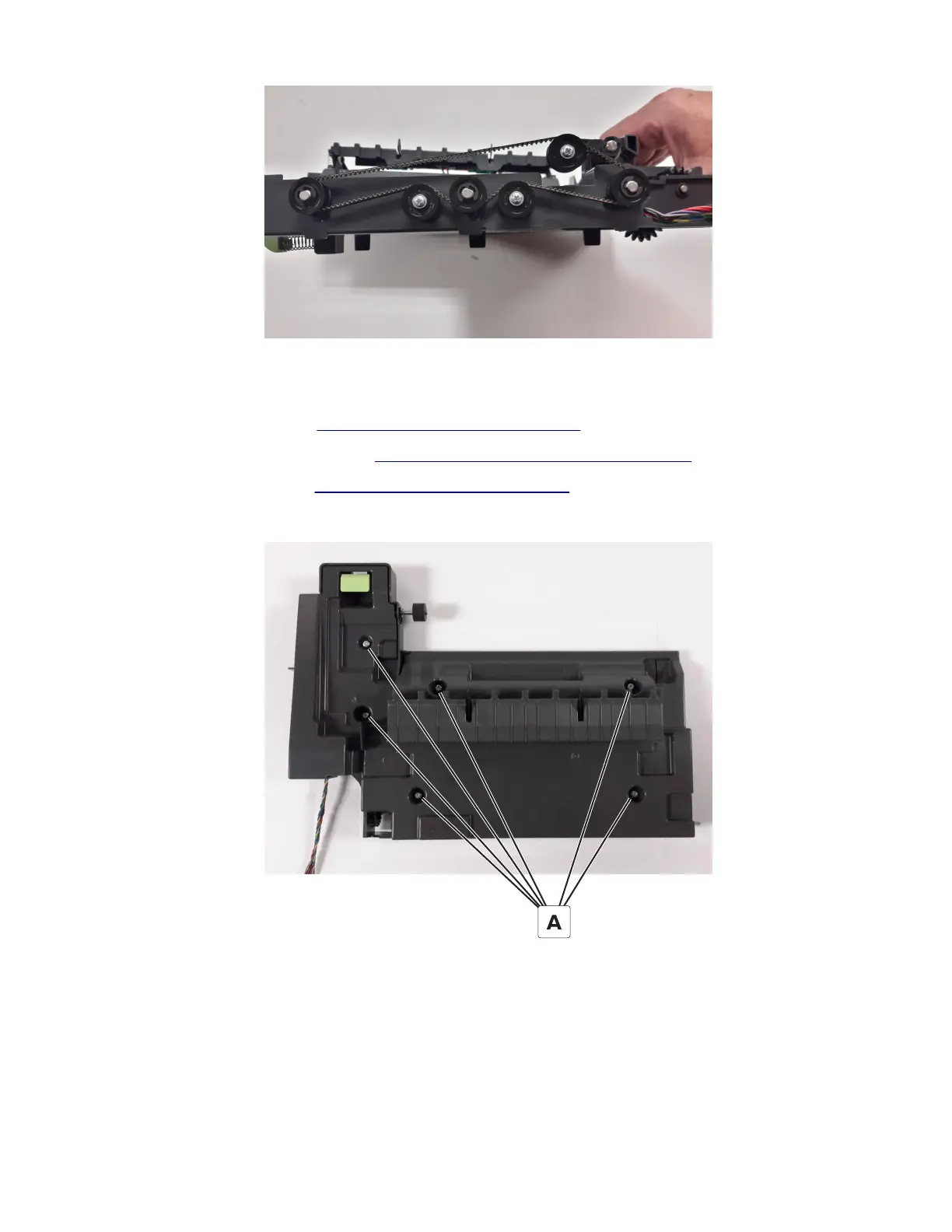

4 Remove the six screws (A).
5028
Repair information
293
