Lexmark C4150 - Page 295

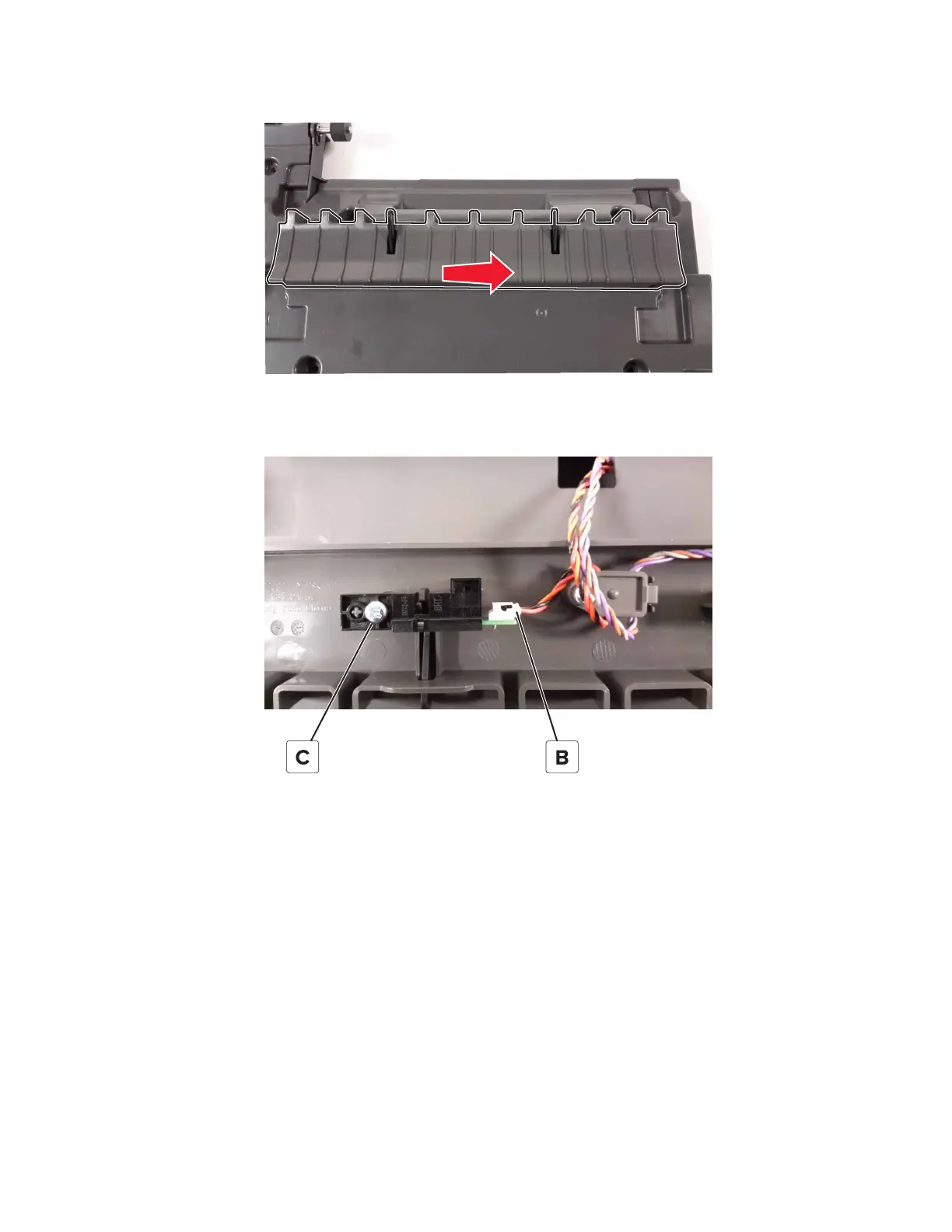

3 Slide the paper guide to the right to remove.
4 Disconnect the sensor cable (B), remove the screw (C), and then remove the sensors.
Note: The left sensor is the sensor (fuser buckle). The right sensor is the sensor (narrow media).
