13
Install memory cards

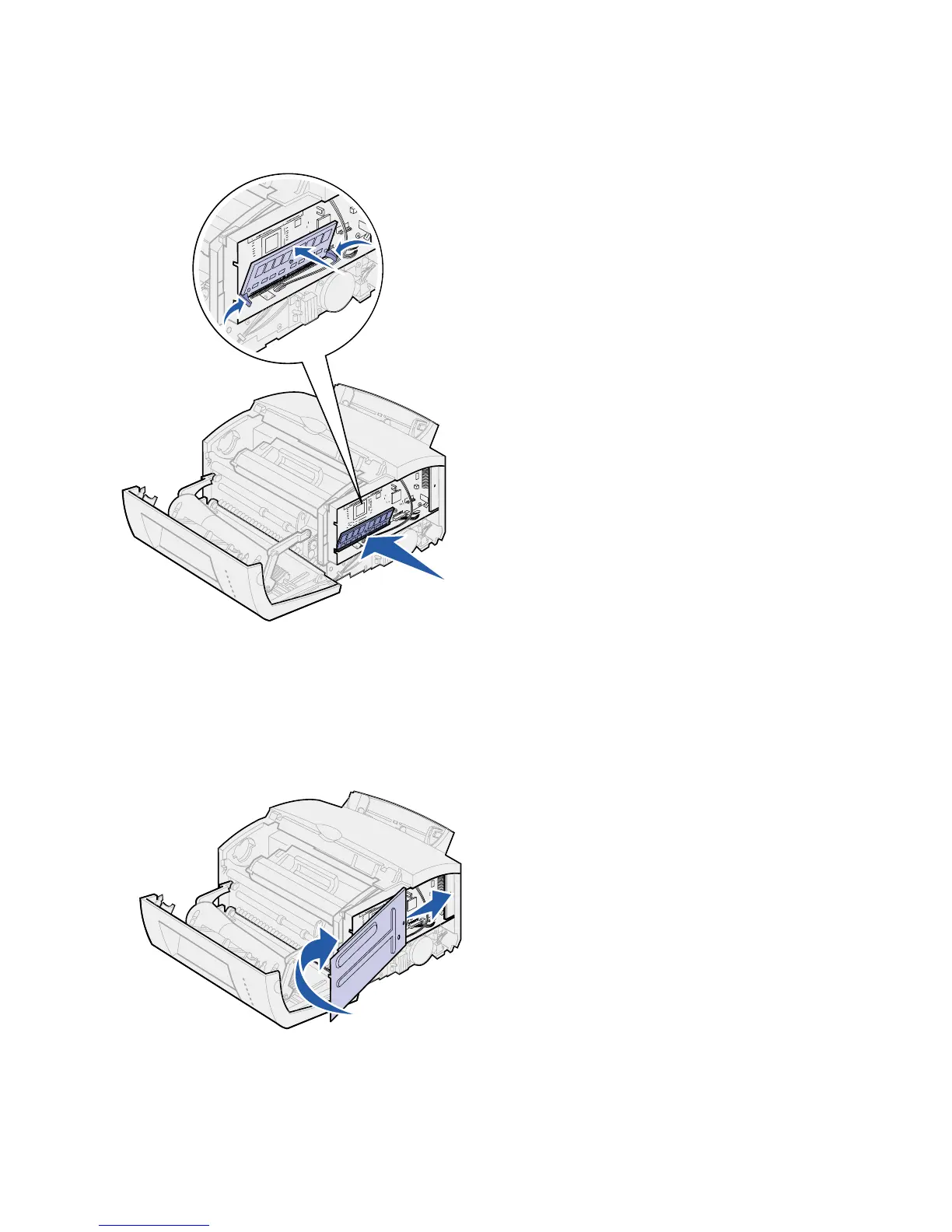

6 Push the card firmly into the
connector with your thumbs until
the latches snap into place.
7 Reattach the metal shield and
side cover.
Reattaching the metal
shield
When you have finished installing the
memory card(s):
1 Align the metal shield between the
top and bottom grooves and slide
it all the way back.
2 Reattach the screw to keep the
shield in place.
