Lexmark MX711de 3 - Page 410

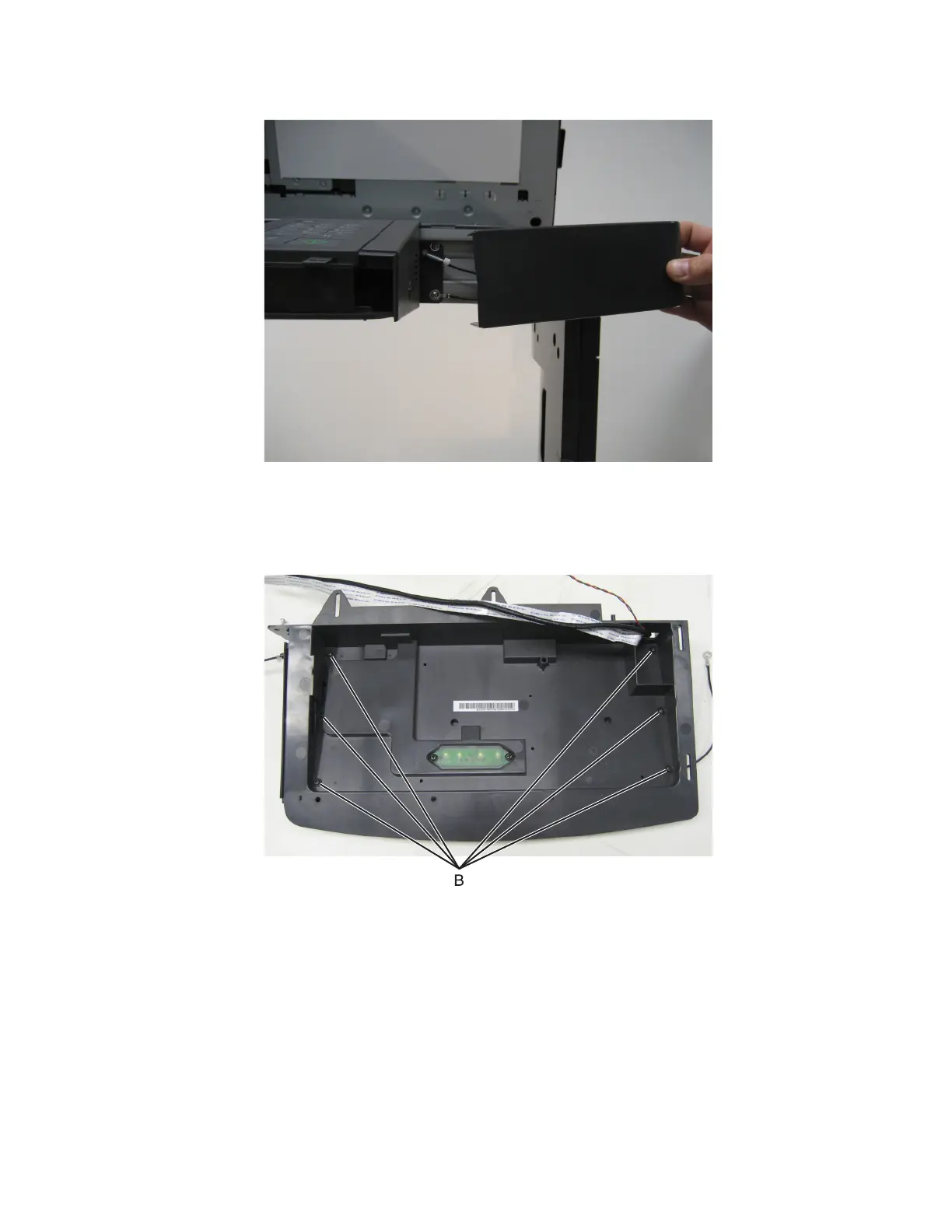

9 Remove the front scanner cover.
10 Remove the control panel. See “Control panel removal (MX81x)” on page 417.
11 Place the control panel upside down on a flat surface.
12 Remove the six screws (B) securing the bottom cover to the assembly.
7463
Repair information
410
