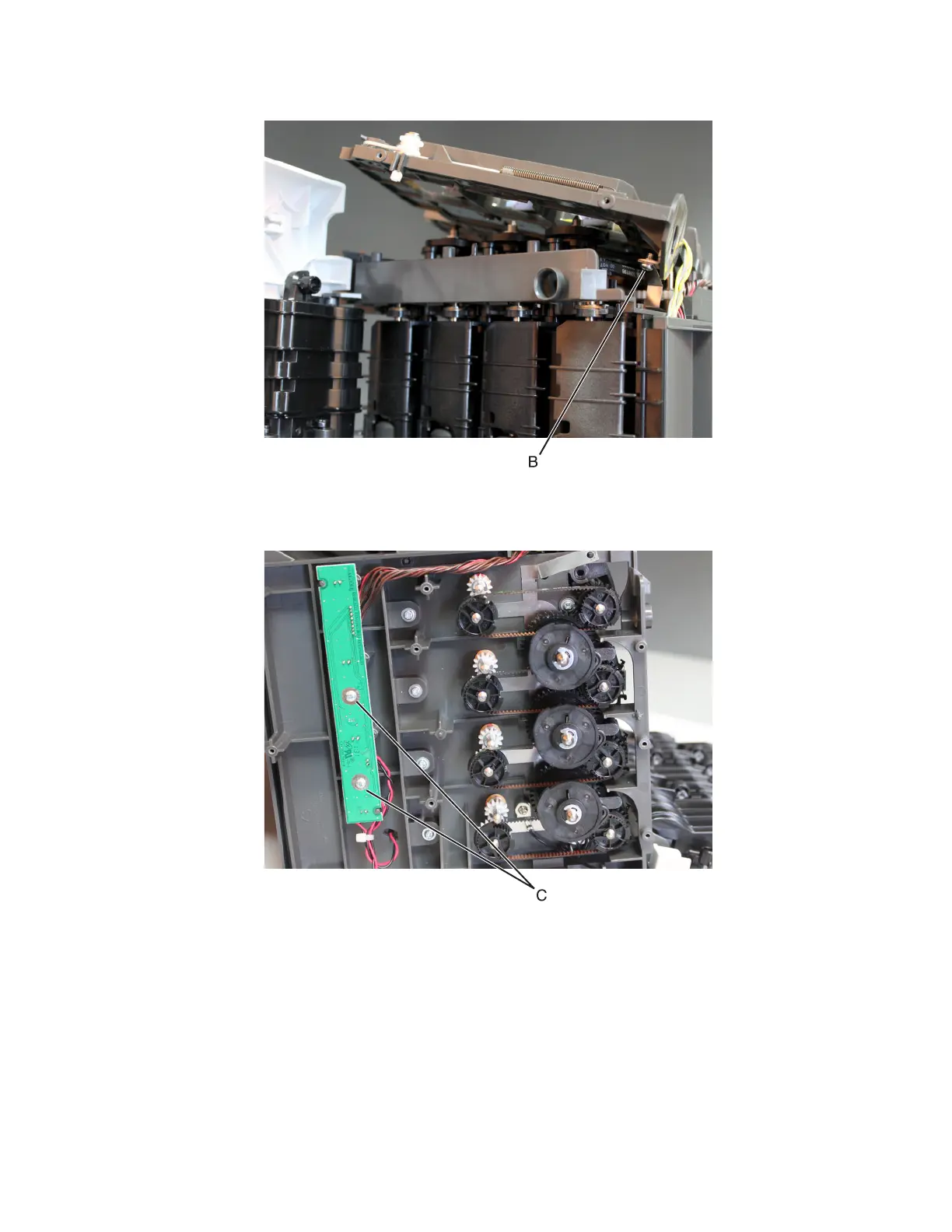

5 Carefully lift the inner right frame, then remove the ground screw (B).
6 Swing the inner right frame away to access the LED assembly.
7 Using a #1 Phillips screwdriver, remove the two screws (C) from the LED assembly.
