4-40 Service Manual
4069-XXX
Interconnect Board Assembly
1. Remove the inner EMC shield.
2. Remove the engine board and shield.
3. Remove the LVPS.
4. Disconnect all cables from the interconnect board.

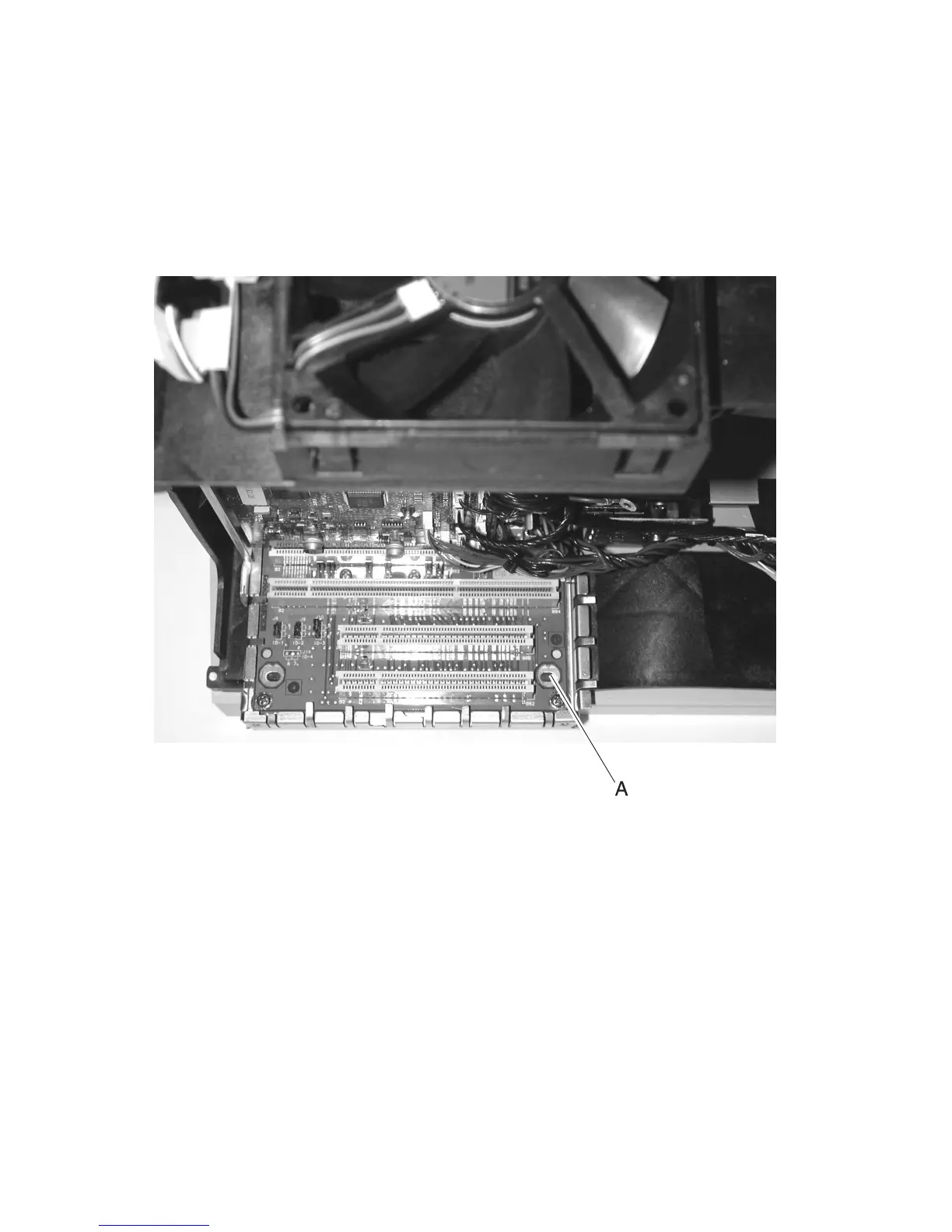

5. Place the printer on its back and remove the mounting screws
(A).
Note: Go to “Interconnect Board” on page 5-12 to identify the
correct jumper locations for your printer.
To Next Page
