Lexmark OPTRA 4069-XXX User Manual

4-42 Service Manual
4069-XXX

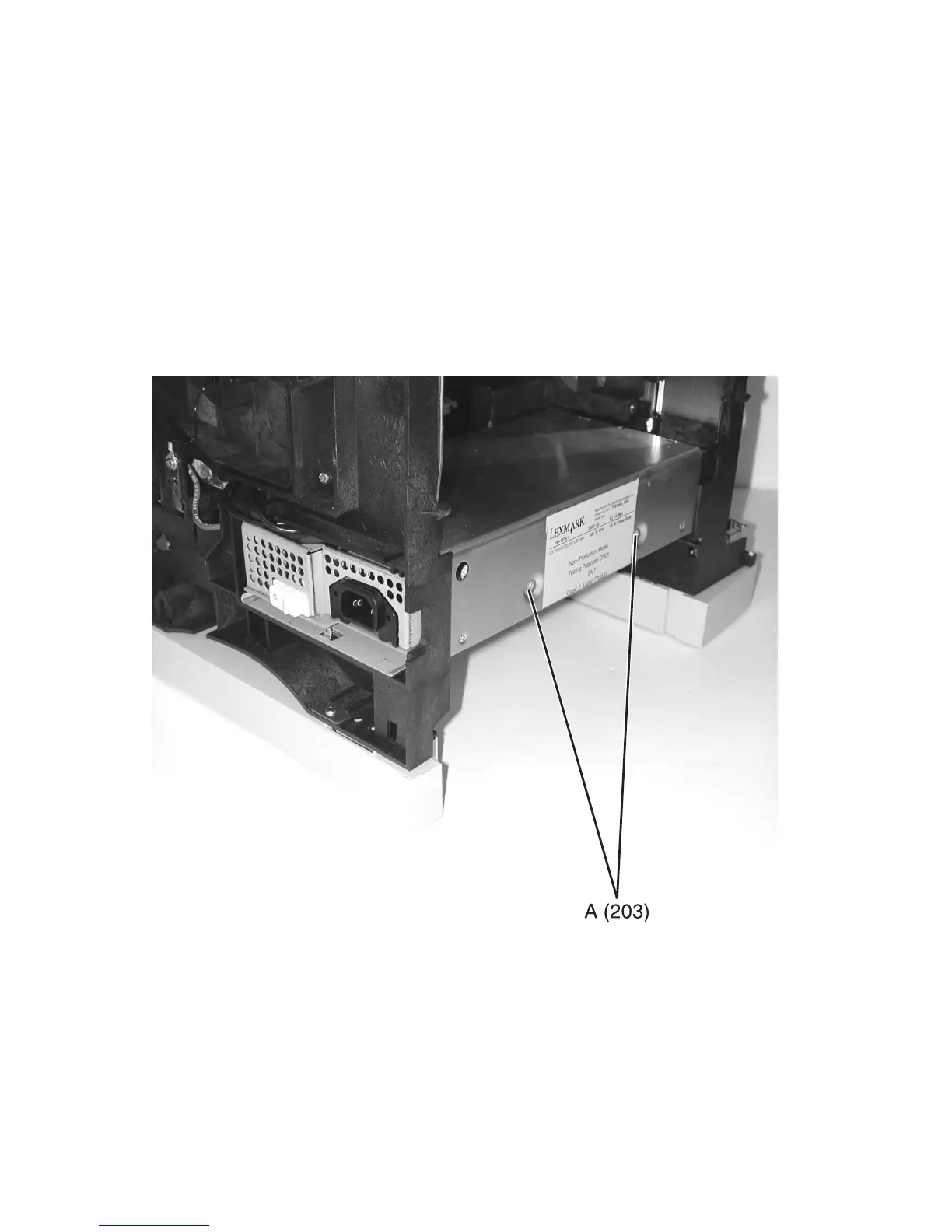

Low Voltage Power Supply
1. Remove the right cover.
2. Remove the LVPS mounting screws (A) from the rear of the
bottom pan.
3. Pull the LVPS assembly from the right side of the printer. Initial
resistance is felt as the automate plug disconnects.
4. Press the release latch on the fuser lamp cable connector and
disconnect from the LVPS.
5. Remove the LVPS.

Lexmark OPTRA 4069-XXX Specifications

General

Brand	Lexmark
Model	OPTRA 4069-XXX
Category	Printer
Language	English
